Axial Piston Pumps
Axial piston pumps in hydraulics are hydraulic machines that convert mechanical energy into hydraulic energy. They are defined by axially arranged pistons that lie parallel to the rotational axis. This arrangement allows them to achieve high power density and efficiency. The operation of an axial piston pump is based on the movement of pistons in cylinders along a common axis.
A tilted disk, often referred to as a swash plate, pushes the pistons into their cylinders and pulls them back out as it rotates. This back-and-forth motion generates hydraulic pressure, providing fluid energy. This principle and the technology of axial piston pumps make them essential components in many hydraulic systems. Read more...
The Swash Plate Principle
The swash plate is positioned at a specific angle to the rotational axis. The larger this angle, the greater the displacement volume of the pistons. Some piston pumps allow the swash plate angle to be adjusted. This enables the flow rate to be modified during operation, significantly improving the functionality of hydraulic pumps.
Adjustment Mechanism
The adjustment mechanism allows the swash plate angle to be modified during operation. This enables the flow rate and pressure to be adapted, allowing a flexible response to varying operating conditions. This is how variable displacement pumps work, offering advantages in application.
Axial Piston Pumps with Bent Axis
The bent axis principle involves cylinders being inclined while the drive shaft remains straight. The rotation of the shaft moves the pistons in the inclined cylinders, enabling the fluid to be pumped. This principle allows for high rotational speeds and a compact design.
Advantages of Axial Piston Pumps
- High Efficiency: They convert mechanical energy into hydraulic energy efficiently.
- High Power Density: Their compact design delivers high performance in a small space.
- Variable Flow Rate: Adjustable models enable flow rate changes during operation.
- Long Lifespan: With proper maintenance, they are highly durable.
- Versatility: They are suitable for many applications in various industries.
Disadvantages and Challenges of Axial Piston Pumps
- Complex Design: Their construction is more sophisticated than other pump types.
- Higher Costs: Acquisition and maintenance can be more expensive.
- Sensitivity: They are sensitive to contamination in the hydraulic fluid.
- Noise: At higher pressures, they can be noisier than other pumps.
- Specific Considerations: For slant-axis hydraulic pumps, specific pros and cons must be weighed carefully.
How Do Hydraulic Axial Piston Pumps Differ from Other Pumps?
Hydraulic axial piston pumps differ in design and function from other hydraulic pumps, such as gear pumps or vane pumps.
- Axial Piston Pump vs. Gear Pump: While piston pumps use pistons to generate pressure, gear pumps use gears to move the fluid. Gear pumps are simpler in design but less efficient and do not offer variable flow rate adjustments.
- Axial Piston Pump vs. Vane Pump: Vane pumps use movable vanes to transport fluid. They are suitable for medium pressures and also provide variable flow rates, though with less efficiency compared to axial piston pumps.
Are Hydraulic Pumps Self-Suctioning?
Axial piston pumps are generally not self-suctioning. They require pre-filling with hydraulic fluid or a charge pump to function correctly. In contrast, some other hydraulic pumps are self-suctioning and can start without pre-filling. This is an essential functional difference that must be considered in system design.
What Are the Special Features and Adjustment Options of Axial Piston Pumps?
Axial piston pumps offer various features, making them suitable for specific applications.
- Variable Displacement Pumps: These allow the flow rate to be changed during operation. By adjusting the swash plate angle, the pump can deliver more or less fluid, enabling precise control of hydraulic systems.
- Bent Axis Principle: In this design, the cylinders are inclined while the drive shaft remains straight. This allows for a compact design and high rotational speeds.
How to Customize Your Axial Piston Pump to Your Needs
- Adjustment Mechanism: The adjustment mechanism allows the swash angle to be modified during operation. This is crucial for applications requiring a variable flow rate. Adjustments can be manual or automatic via control systems.
- Material Selection: Depending on the application, different materials can be chosen for pistons, cylinders, and seals, affecting the pump's durability and load capacity.
- Control Types: Integrating electronic controls enables precise regulation of the pump. Sensors can capture operational data and adjust performance accordingly.
Typical Applications of Axial Piston Pumps
- Construction Machinery: In excavators and wheel loaders, they control hydraulic cylinders or serve as drive systems in combination with hydraulic motors (hydrostatic drives).
- Agriculture: Tractors use them for hydraulic drives and power steering.
- Industrial Machinery: In presses and machine tools, they precisely control movements.
- Wind Turbines: They are used for blade adjustment and power control.
- Maritime Applications: They control rudder systems and other hydraulic functions on ships.
In mobile work machinery like forestry equipment or municipal vehicles, hydraulic piston pumps enable flexible and efficient control of various functions. Their adaptability makes them ideal for specialized machines with individual requirements. Analyzing axial piston compression and its operation is crucial for optimizing applications in engineering systems.
Maintenance and Care
Regular maintenance is essential for reliable operation.
- Regular Oil Changes: Clean hydraulic fluid is critical. Contamination can cause damage, so the fluid should be replaced according to manufacturer recommendations.

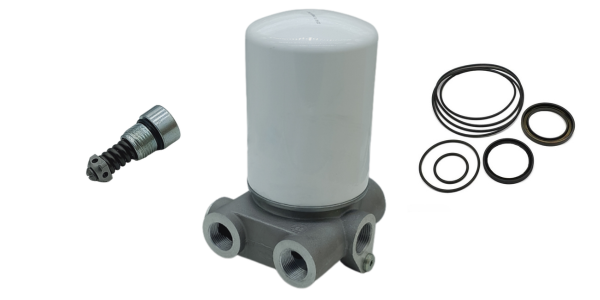

- Filter Maintenance: Filters capture particles and protect the pump. They should be regularly inspected and replaced.
