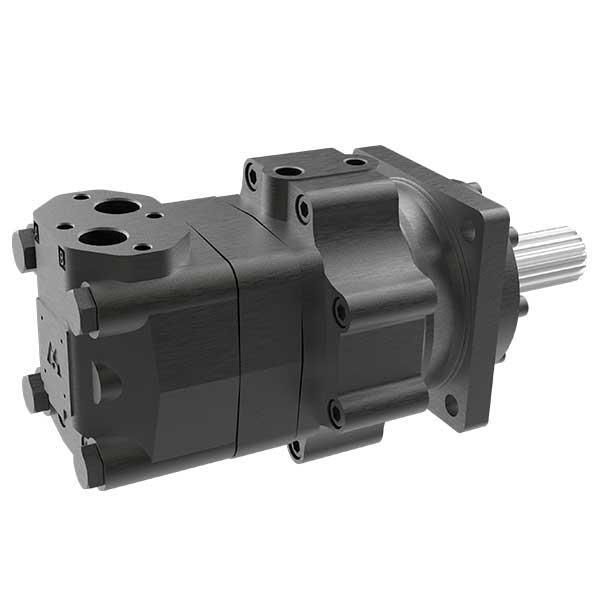

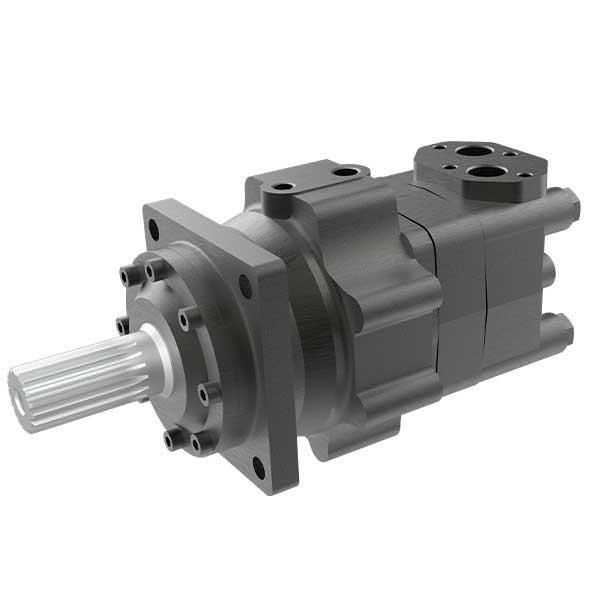

EPMT/B 500 SH, LöSi Hydraulic Motor with Integrated Brake
Specifications:
- Displacement [ccm/rev]: 523.6
- Side ports 2x G3/4 inch BSPP
- Shaft: Splined (17 teeth): Ø 38.1 mm
- Square mount 4-holes (hole distance: 160 mm)
- Static torque of the brake: 1430 Nm
- Min. opening pressure: 32-35 bar
- Max. opening pressure: 280 bar
Technical Data (for continuous use):
- max. speed: 240 rev/min
- max. torque: 1220 Nm
- max. output: 26.5 kW
- max. oil flow: 125 l/min
- max. inlet pressure: 210 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 140 bar
Download datasheet EPMT
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMT/B. Do you need support in choosing the right EPMT/B hydraulic motor? Then please contact us by phone on +49 631 351240, via our contact form , by email at shop@loesi.de or with What's App .
