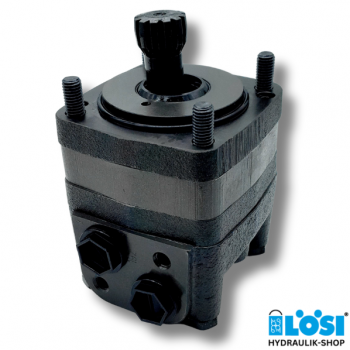

EPMS Hydraulic Motor
The EPMS hydraulic motor from LöSi® is a high-performance roller motor series designed for demanding applications with high loads. In this series, the valve control is located in the end cover, ensuring precise filling and emptying of the hydraulic chambers. Whether in mobile machinery, conveyor systems or industrial applications, the EPMS hydraulic motor combines compactness, robustness and efficiency. Rely on over 40 years of experience in the field of hydraulics and choose a motor series that combines performance and quality.
Catalogue download:
What is an EPMS Hydraulic Motor?
The EPMS hydraulic motor represents the upper class of orbital motors. It is based on advanced Geroler technology. Unlike conventional motors, additional rollers are installed here in the gear set.
This construction has a decisive physical advantage: Sliding friction is replaced by rolling friction. This makes the EPMS an extremely high-performance drive element specially developed for applications where standard gerotor motors would reach their wear limits.
Advantages of the EPMS Series
The technical complexity of the Geroler design pays off directly in performance. Due to reduced internal friction, the EPMS hydraulic motor offers significant advantages in daily operation:
- Perfect Start-up Behavior: High breakaway torque ensures that the motor starts reliably even under load.
- Maximum Service Life: Less abrasion in the gear set means longer maintenance intervals.
- High Load Capacity: Ideal for continuous use at high pressure.
Typical Areas of Application for the EPMS Hydraulic Motor
Thanks to its robust characteristics, the EPMS can be found wherever "Heavy Duty" is required. It covers a broad spectrum of industrial and mobile applications:
- Mobile Hydraulics: Travel drives in heavy construction machinery and agricultural machinery.
- Industry: Main drive in machine tools and stationary plants.
- Conveyor Technology: Operation of conveyor belts that have to move heavy loads.
Variants, Selection & Technical Data
The EPMS series impresses with its enormous variability. You can scale the torque and speed exactly. The available displacement ranges from approx. 80.5 cm³/rev up to a powerful 564.9 cm³/rev.
To ensure the motor fits perfectly, we define together:
- Displacement: How much force (Nm) do you need at what pressure?
- Shaft Shape: Cylindrical, splined, or tapered for direct hub mounting?
- Mounting Mode: Matching flange and connection type for your piping.
Our technical team supports you in calculating these key parameters exactly to maximize the efficiency of your system.
Select & Order EPMS Hydraulic Motor Now
Rely on proven quality for demanding tasks. In our webshop, you will find the EPMS hydraulic motor in numerous variants – immediately available and ready for dispatch.
Do you need help with selection or assembly? Our consulting team is at your side with expertise. Inform yourself now, compare, and order your reliable hydraulic solution directly online!
