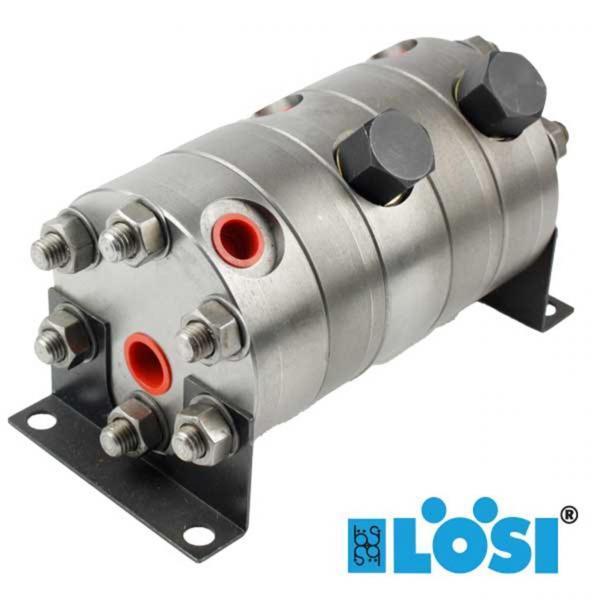

Hydraulic Precision High-Pressure Gear Flow Divider (up to 345 bar) FDR 4/2 85 bar

Hydraulic Flow Divider FDR 4/2 85 bar, LöSi Gear Flow Divider, High Pressure Flow Divider

Specifications

Our precision high-pressure gear flow dividers are available in various designs and sizes.

• Number of sections: 2 - 6
• Delivery volume: 2cm³/rev - 9cm³/rev per section
• Maximum pressure: up to 345 bar
• With DBV in each section can be set up to 345 bar
• Material: steel
• All versions are also available in stainless steel

Selecting a flow divider - Although speed of rotation can be as low as 750 rpm and the maximum is 3000 rpm, a flow divider
should be selected which will pass the required flows in the range 1000 to 2000 rpm for maximum efficiency.

Technical Data (for continuous use)

• Displacement [ccm/rev]: 2
• Sections: 4
• min. input flow [l/min] at 750 rpm: 6
• max. output flow [l/min] at 3000 rpm: 24
• Standard input flow [l/min] at 1500 rpm: 12
• DBV setting: 85 bar (up to max. 345 bar possible)
• Available with speed sensor on request.

Download datasheet FDR

Do you have any questions about our flow divider? Do you need support in choosing the right flow divider? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
