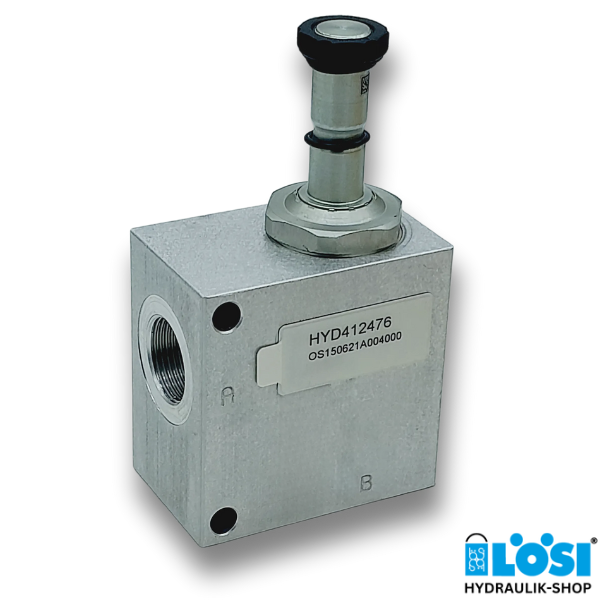

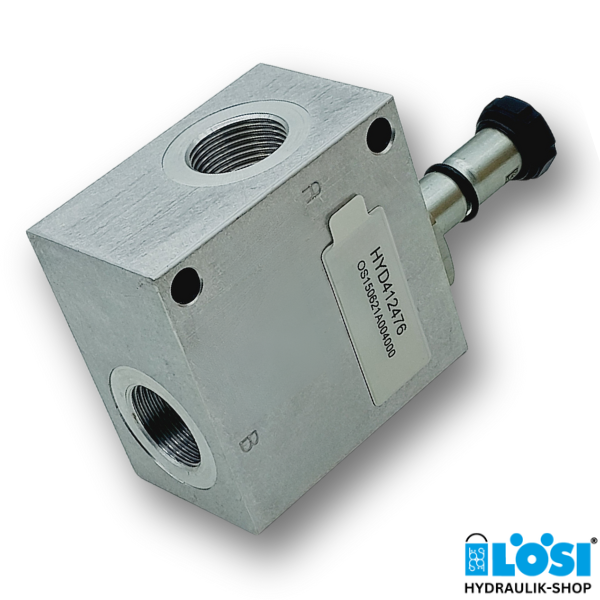

Hydraulic 2/2- Way Seat Valve 3/4", 210bar, 150l/min, Aluminum, Type: OS1506211A0400
General Data:
- A safe position holding of e.g. lifting cylinders etc...
- The prevention of lowering the cylinder in case of pipe breakage
- Holding and controlled lowering brake function of motors and winches
- Load holding valves with regenerative function (rapid traverse)
Technical Data:
- Max. Volume flow: 150 l/min
- Max. Max. operating pressure: 210 bar
- Solenoid voltages: 12DC, 24DC, 26DC, 48DC, 80DC, 48RAC, 110RAC, 220RAC and others
- Connection thread: G 3/4"
Download Data Sheet
Do you have questions about our hydraulic valves? Do you need assistance with the right selection of your hydraulic valve? Then please feel free to contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via What's App.
