Description

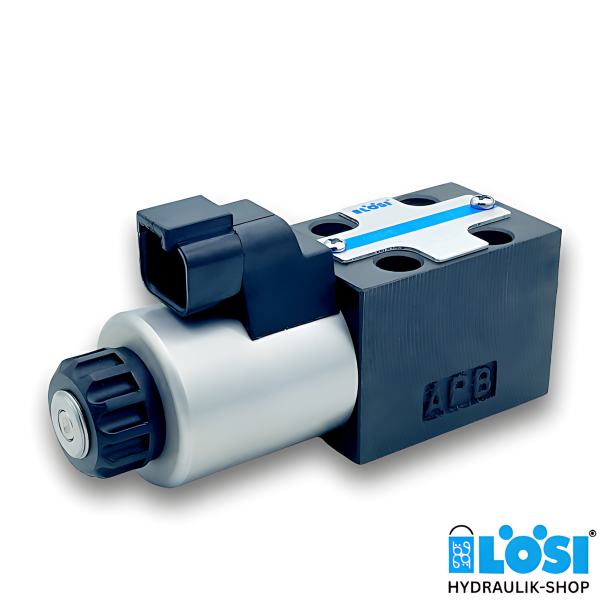

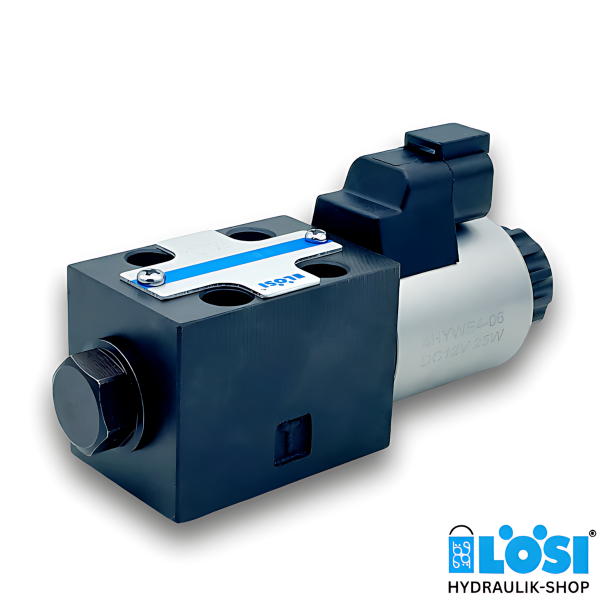

Hydraulic Valve, 4/2-Way Valve, Solenoid Valve NG04, 12V DC, Deutsch Plug, Normally Closed (A, B, P, T)

General Data:

  • 4/2-way valve, hydraulic valve
  • Nominal size NG04
  • Directly controlled
  • For modular construction
  • Max. working pressure: 250 bar
  • Valve voltage: 12V DC
  • Max. flow rate: 25 l/min
  • Temperature range: -20 to 70°C
  • Type: 4HYWPWE4-2B2B-D12/51 (DT04)

Circuit diagram:

Download Data Sheet NG04

Do you have any questions about our hydraulic valves? Do you need assistance in choosing the right hydraulic valve? Then feel free to contact us by phone at +49 631 351240, through our contact form, via email at shop@loesi.de or via WhatsApp.
