4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
Preview: 4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
Preview: 4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
Mobile Preview: 4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)
Mobile Preview: 4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)

4/2-Way Hydraulic Valve NG06, 24V, Normally Closed (A, B, P, T)

Shipping time:
Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
57,12 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

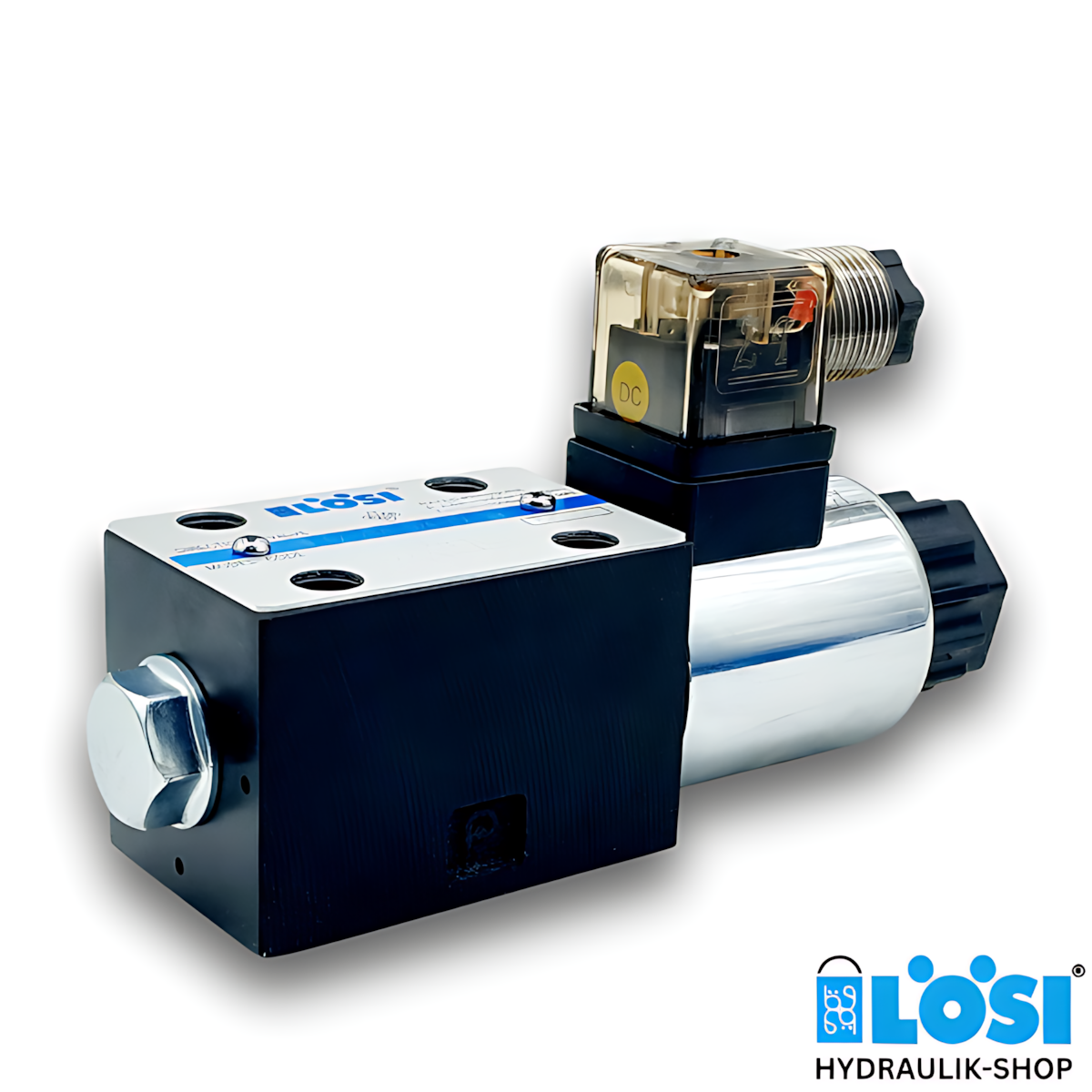

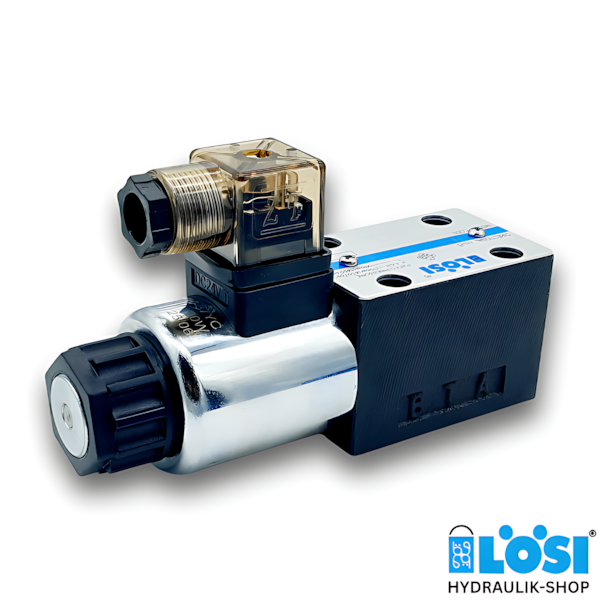

Hydraulic Valve, 4/2-Way Valve, Solenoid Valve NG06, 24V DC, Normally Closed (A, B, P, T)

General Data:

  • 4/2-way valve, hydraulic valve
  • Nominal size NG06
  • Directly controlled
  • For modular construction
  • Max. working pressure: 315 bar
  • Valve voltage: 24V DC
  • Max. flow rate: 80 l/min
  • Temperature range: -20 to 70°C
  • Type: FW-02-2B2BL-D24-Z5L-N9

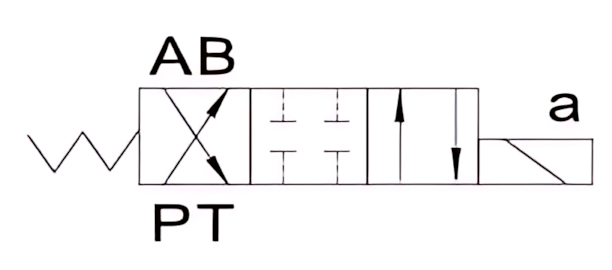

Circuit diagram:

Download Data Sheet NG06

Do you have any questions about our hydraulic valves? Do you need assistance in choosing the right hydraulic valve? Then feel free to contact us by phone at +49 631 351240, through our contact form, via email at shop@loesi.de or via WhatsApp.
