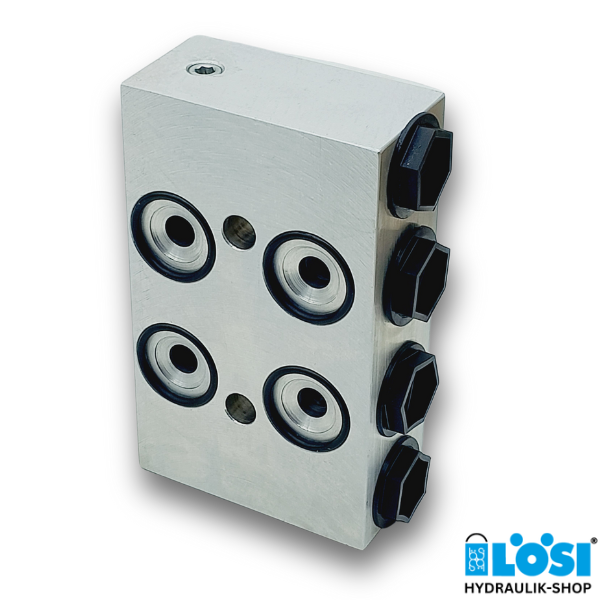

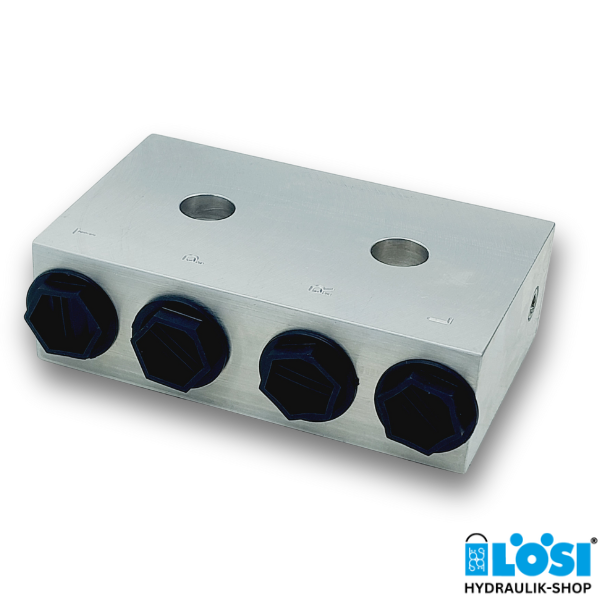

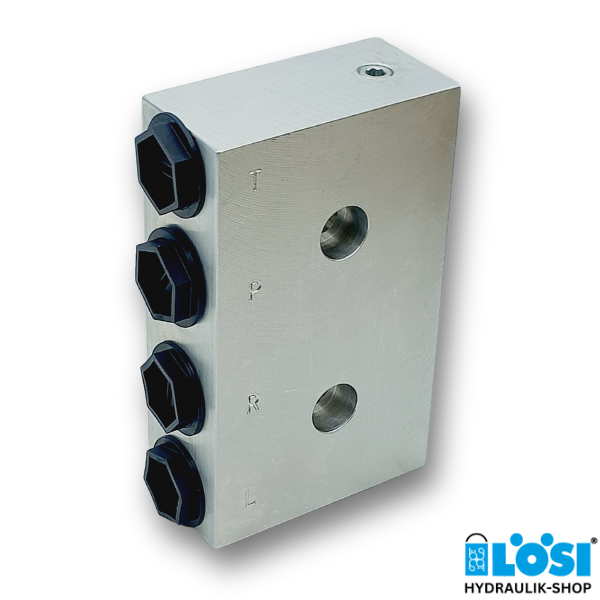

Adapter plate for HKU(S), rear connections 4x M18x1.5, depth 13mm
General data:
- Material: aluminum - 2017-A
- Mounting to HKU(S) using 2x M10x1x40 DIN 912
- 4x Orings are supplied
- The plate can be ordered with either (A, G on request) or (M). The current version is supplied with (M), i.e. M18x1.5.
Connections available in:
- A = 3/4-16 UNF, O-ring, 15mm deep
- G = 3/8”, 13mm deep
- M = M18x1.5; 13mm deep
Download datasheet
