Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Preview: Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Preview: Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Mobile Preview: Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)
Mobile Preview: Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)

Argo Hytos 4/3-Way Hydraulic Valve NG06 with Ports A, B, P, and T blocked (without Coils)

Shipping time:
ca. 1-3 days ca. 1-3 days (abroad may vary)
147,87 EUR

incl. 19% tax excl. Shipping costs

Add to wish list
Ask about product
Description

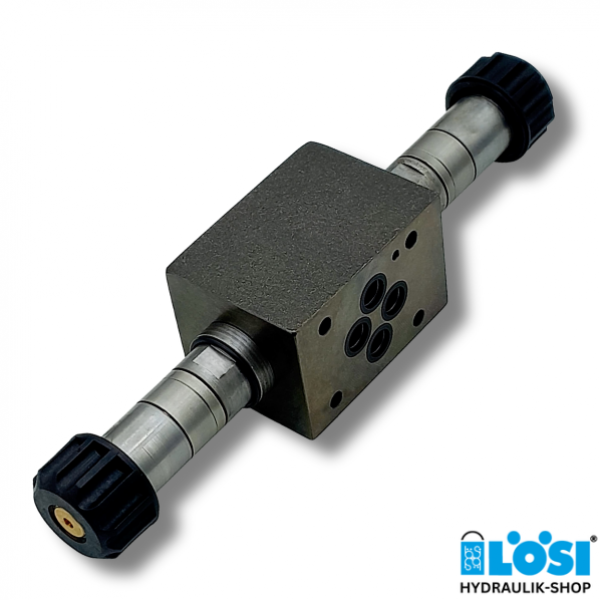

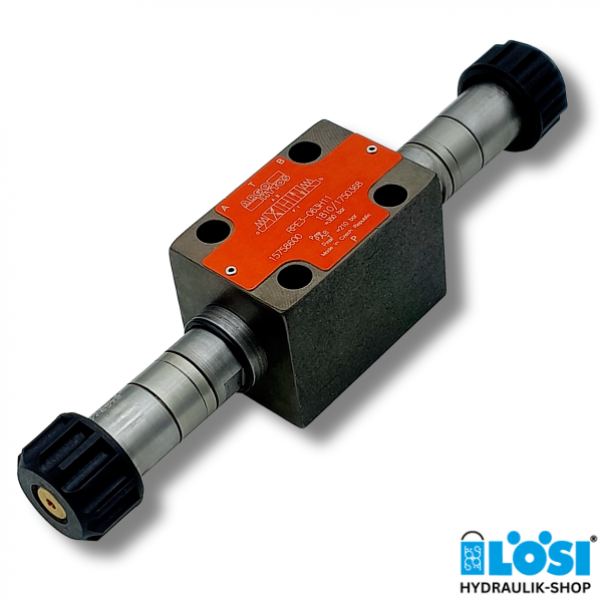

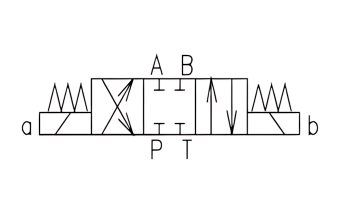

Argo Hytos RPE3-063Z11 4/3 way hydraulic valve NG06 blocked in center P, A, B, T

General Data:

  • 4/3-way valve, hydraulic valve
  • Nominal size NG06, Cetop 3
  • directly controlled
  • for modular construction
  • max. working pressure: 350 bar
  • Valve voltage: optional 12V DC, 24V DC, 230V (Solenoids must be ordered separately)
  • max. flow rate up to 80 l/min
  • Temperature range (°C) -30 to 70
  • Type: RPE3-063Z11



Download Data Sheet

Do you have any questions about our hydraulic valves? Do you need assistance in choosing the right hydraulic valve? Then feel free to contact us by phone at +49 631 351240, through our contact form, via email at shop@loesi.de or via WhatsApp.
