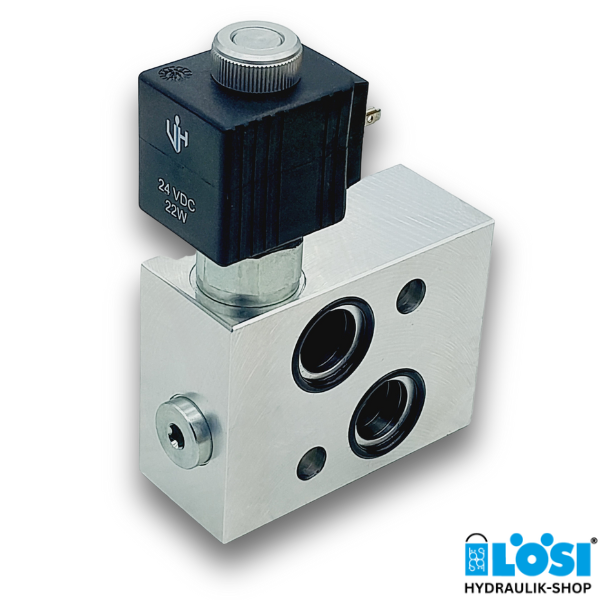

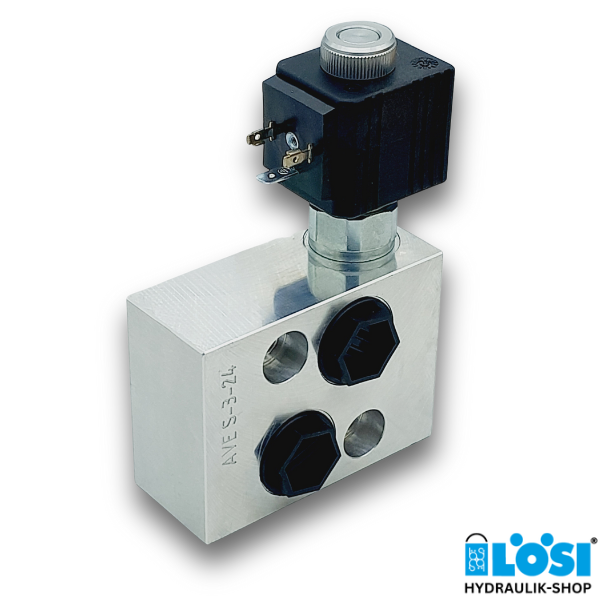

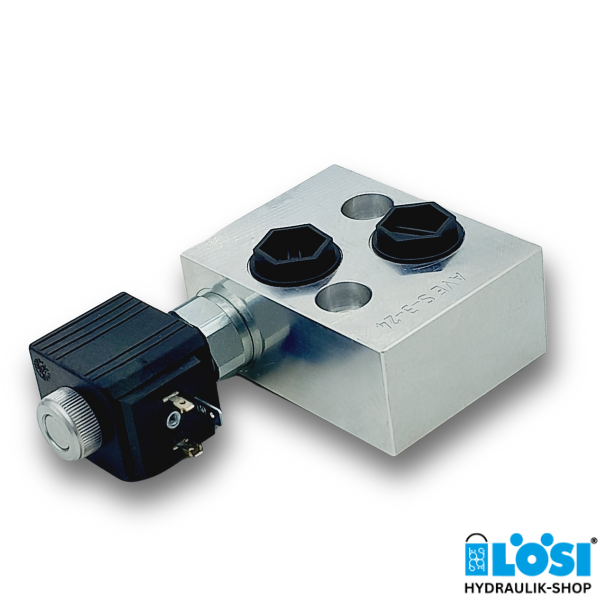

AVE-S-3-24VDC Electric Shut-off Valve for EPMS
Hydraulic Shut-off Valve Electrical for EPMS Motor, Flange-mounted, Connections G 1/2'', 60l/min, 250bar, Valve Voltage 24V DC, Aluminum Housing
Specifications:
- Type: AVE-S-3-24V DC
- Shut-off valve electric 24V DC
- Power: 22W
- Various voltage options available
(both AC and DC) - Maximum oil flow [l/min]: 60
- Connections 2x G 1/2 inch BSPP
- Maximum pressure: 250 bar
- Housing: Aluminum 2017-A
- Manual operation possible
- For hydraulic motors type EPM / EPRM
- For both motor rotation directions
Hydraulic scheme:
The AVE-R shut-off valve also fits the following engine types:
Danfoss OMSS, M+S Hydraulic MS, Hydraulik Nord GMS-S
Do you have any questions about our hydraulic valve type AVE-S? Do you need support in choosing the right AVE-S hydraulic valve? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
