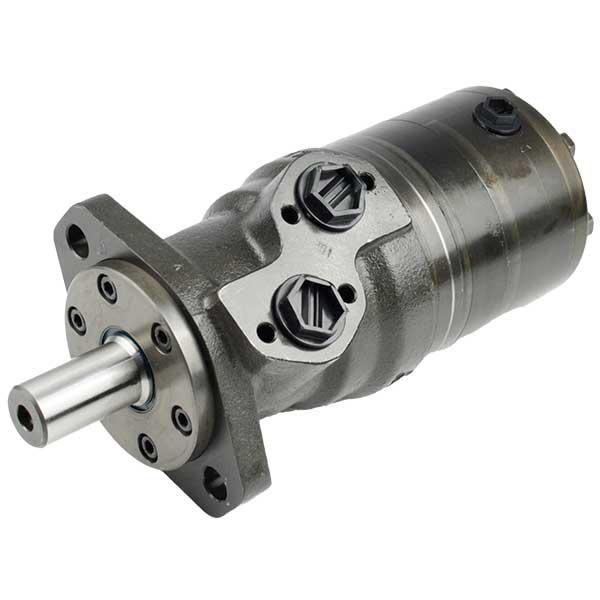

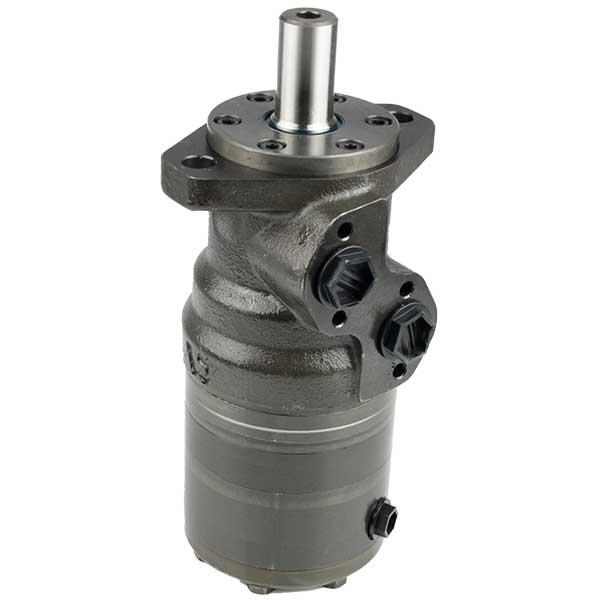

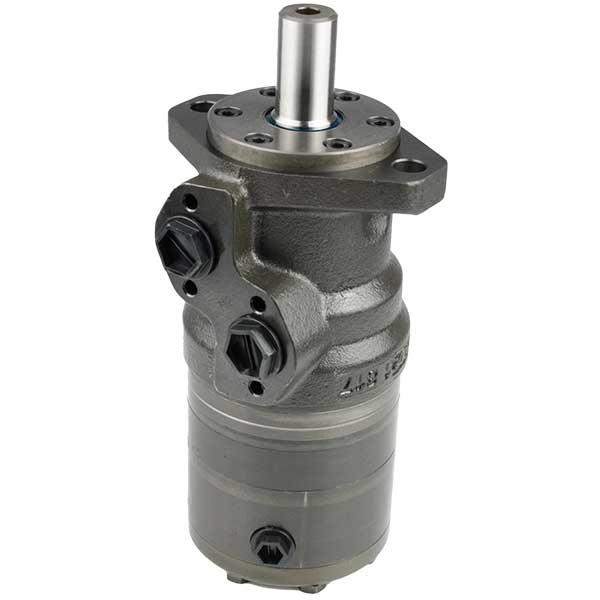

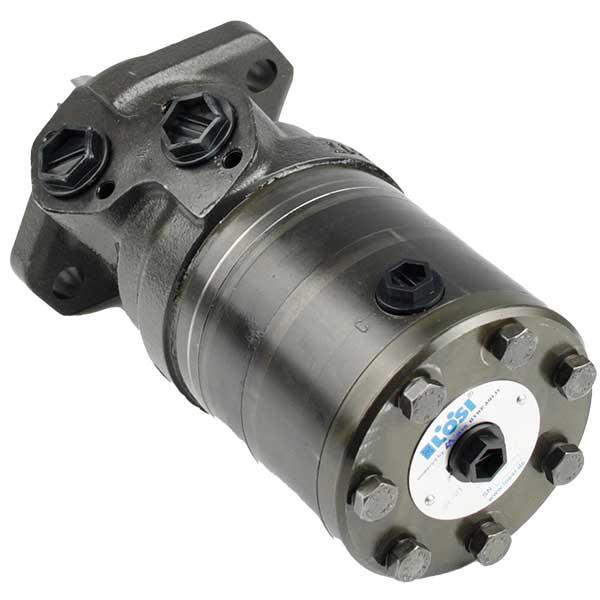

B/EPRM 125 C, LöSi Hydraulic Motor with integrated Brake
Specifications:
- Displacement [ccm/rev]: 125.7
- Side ports 2x G1/2 inch BSPP
- Shaft: cylindrical Ø 25 mm
- Oval mount 2-holes (hole distance: 106.4 mm)
- Static torque of the brake: 550 Nm
- Min. opening pressure: 13 bar
- Max. opening pressure: 200 bar
Technical Data (for continuous use):
- max. speed: 475 rev/min
- max. torque: 300 Nm
- max. output: 12.5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet B/EPRM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type B/EPRM. Do you need support in choosing the right B/EPRM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
