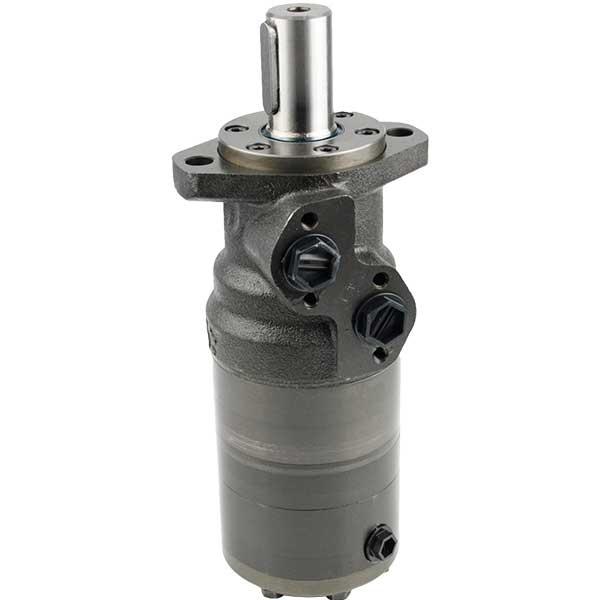

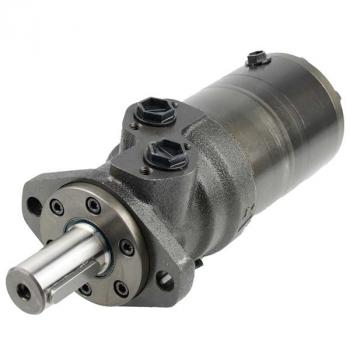

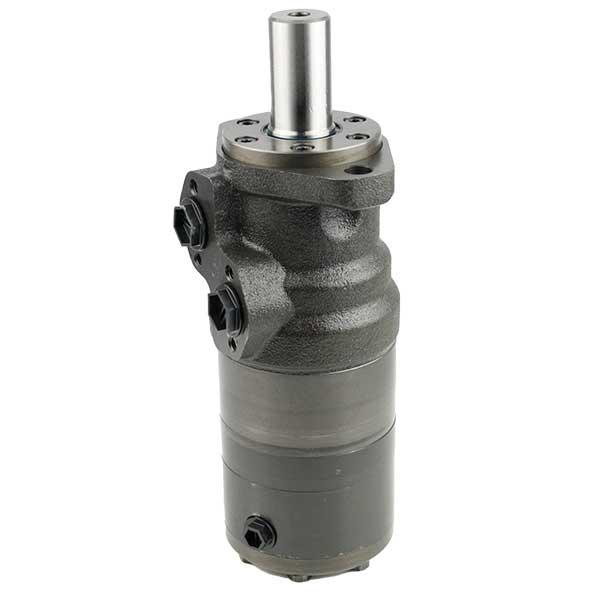

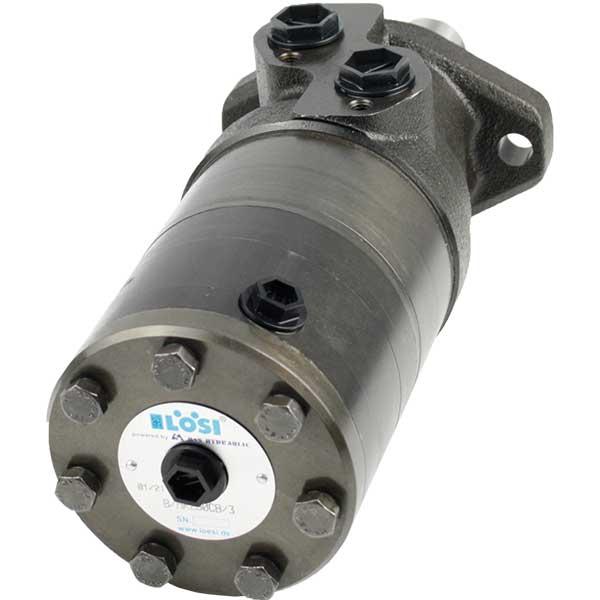

B/EPRM 250 CB, LöSi Hydraulic Motor with integrated Brake

Specifications:

Displacement [ccm/rev]: 250.1
Side ports 2x G1/2 inch BSPP
Shaft: Cylindrical: Ø 32 mm
Oval mount 2-holes (hole distance: 106,4 mm)
Static torque of the brake: 550 Nm
Min. opening pressure: 13 bar
Max. opening pressure: 200 bar

Technical Data (for continuous use):

max. speed: 240 rev/min
max. torque: 300 Nm
max. output: 6,2 kW
max. oil flow: 60 l/min
max. inlet pressure: 175 bar
minimum speed: 10 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet B/EPRM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
