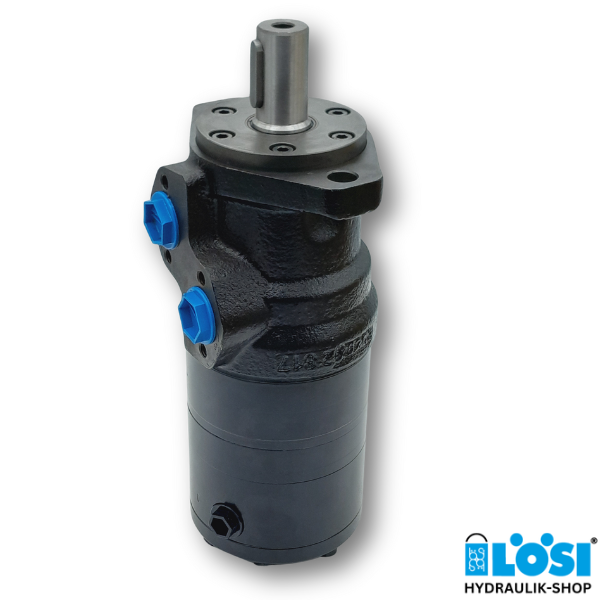

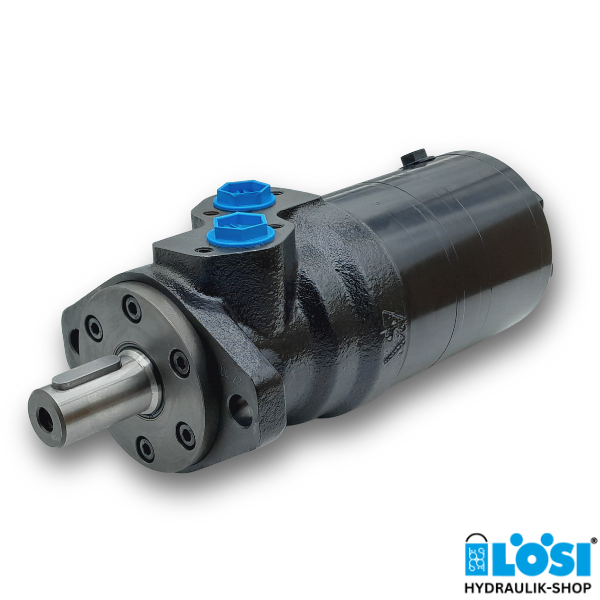

B/MR 200 C P RAL 9011 Hydraulic Motor with Integrated Brake

Hydraulic motor with integrated multi-disc brake B/MR 200 C P RAL 9011, 199.8 ccm/rev, 2-hole oval flange, cylindrical shaft  Ø25mm

Specifications:

• Displacement [ccm/rev]: 199.8
• Side ports 2x G1/2 inch BSPP
• Shaft: Cylindrical: Ø 25 mm
• Oval mount 2-holes (hole distance: 106,4 mm)

Technical Data (for continuous use):

• max. speed: 300 rev/min
• max. torque: 300 Nm
• max. output: 7.8 kW
• max. oil flow: 60 l/min
• Max. Pressure drop: 105 bar
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• Static torque of the brake: 550 Nm
• Min. release pressure: 13 bar
• Max. Opening pressure. 200 bar

*Motor brakes must always have a drain line. The brake release pressure is the difference between the pressure in the brake release line and the pressure in the drain line.

Download datasheet B/MR

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type B/MR. Do you need support in choosing the right B/MR hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
