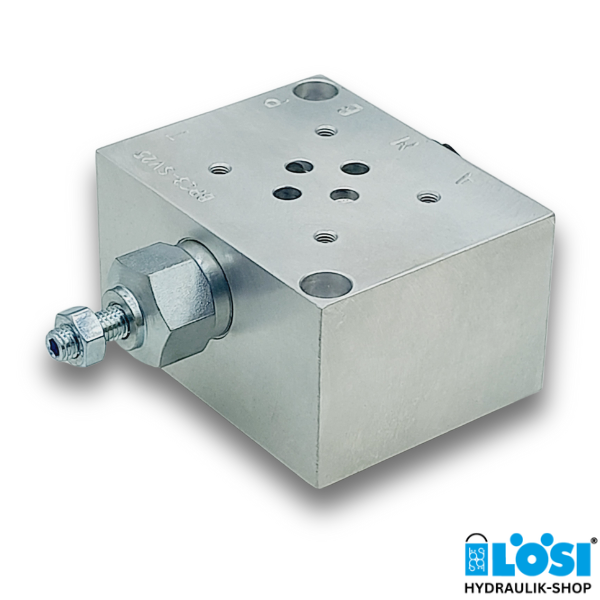

Base Plate 1-fold with PRV NG06 BPC-3
1-fold base plate for hydraulic valves NG06 with PRV, aluminum housing, max. pressure 250 bar, pressure gauge connection, connection for return filter
General Data:
- Nominal size NG06 (Cetop 3)
- Housing: aluminum 2024
- Operating pressure: max 250 bar
- Flow rate (due to return filter)
25 l/min with “T1” G3/8” connection

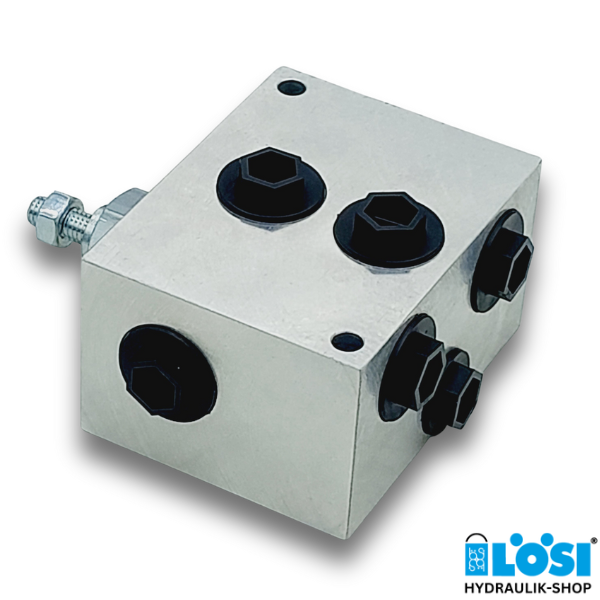

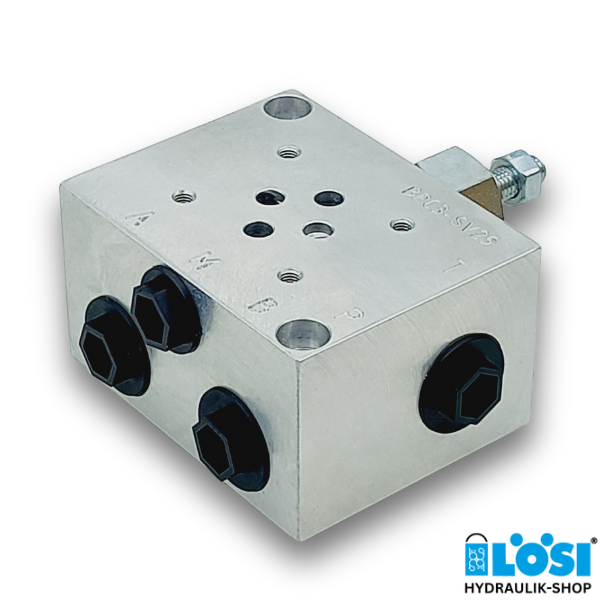

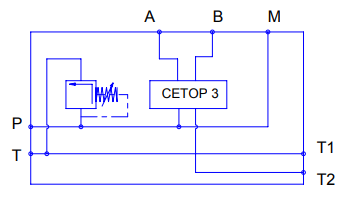

40 l/min with “T1” G1/2” connection - Connections:
M(for pressure gauge) - G1/4” - 12mm deep
P, T, A and B - 3/8” - 13mm deep
T1 - G3/8” - 13mm deep Return filter up to 25 l/min
T2 - G1/2” - 15mm deep Return filter over 25 l/min - incl. pressure relief valve PRV
