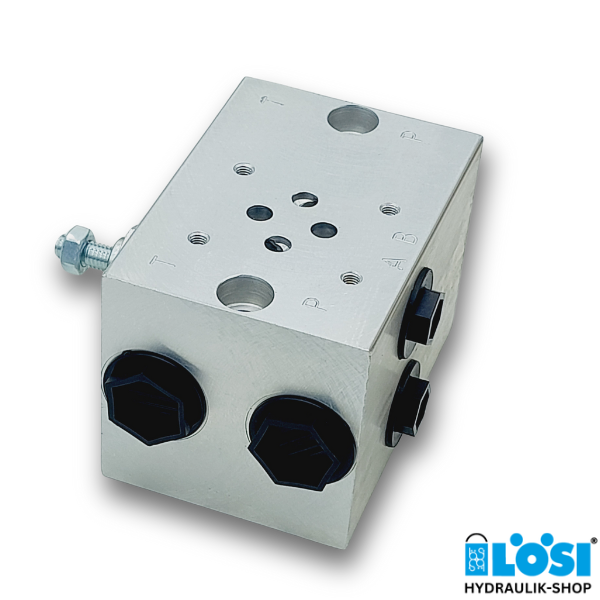

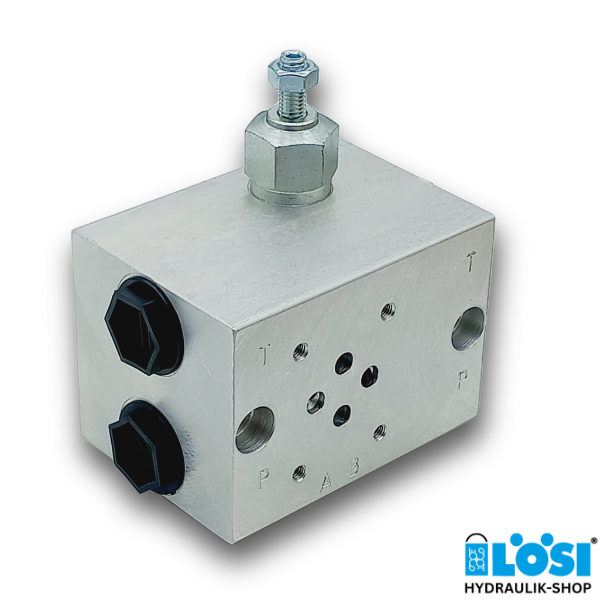

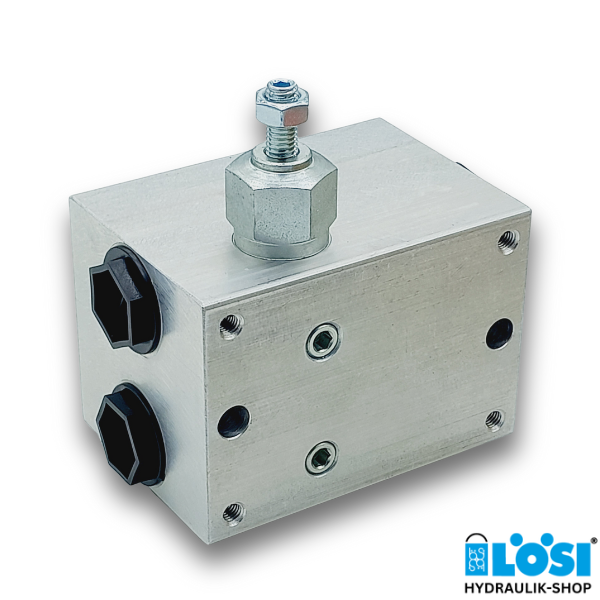

Base Plate 1-fold with PRV, NG06
1-fold Base Plate for Hydraulic Valves NG06 with PRV , Aluminum, Q=40l/min, P=250bar, Connections on the Side
General Data:
- Nominal size NG06 (Cetop 3)
- Housing: Aluminum 2024
- Operating pressure: max 250 bar
- Flow rate: 40 l/min
- Connections: P and T G1/2”

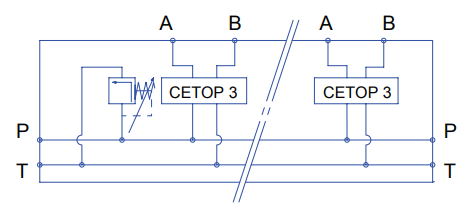

A and B G3/8” - incl. pressure relief valve PRV
- The base plates can be supplied with a holder for 1 - 8 NG06 valves
- Also available in cast version (up to max. 300 bar)
Do you have questions about our base plate? Do you need assistance in selecting the right base plate? Then feel free to contact us by phone at +49 631 351240, via our contact form, via email at shop@loesi.de or via WhatsApp.
