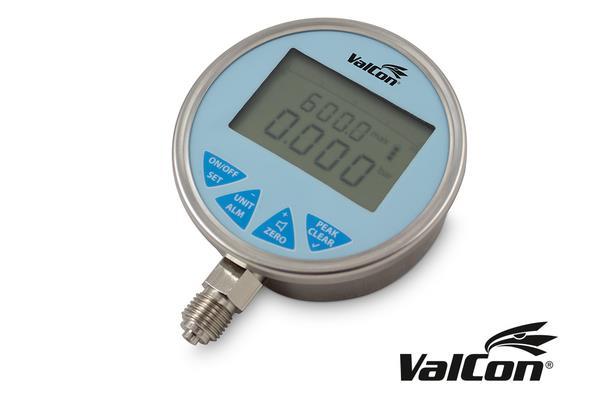

Valcon® digital pressure gauge NG80
AISI 304 stainless steel case digital pressure gauges, parts in contact with the process in AISI 304 stainless steel or brass. Suitable for applications on pneumatic / hydraulic plants, pumps, compressors and for calibration tests. The durable stainless steel housing allows its flexible use across a wide range of applications and industries. Electrical power supply (optional) is suitable for industrial processes and machineries installation where electricity is provided (saving battery life and extremely increasing the run time), even for calibration tests in laboratories. Alarm functions (optional) give the instrument a great added value and the capability to keep plants under control where the gauge is installed. Digital display is the ideal solution for a fast and precise pressure reading with great accuracy. The bar graph with its trailing pointer and the min/max peak reading enable a complete application analysis.
Specifications:
- Thread (GA): 1/4" BSP
- Nominal size: 80
- Ø cousing front side d1 (mm): 86.2
- Scaling: bar/Mpa/psi
- H (mm): 110.0
- t (mm): 35.5
- Ø cousing back side d2 (mm): 80.0
- Material casing: AISI 304 Stainless steel
- Material dial: Digital
- Temperature range (°C): 0°C to +70°C
- Ambient temperature range (°C): 0°C to +50°C
- Accuracy class: 0.5
- Display area (bar): 0-100
