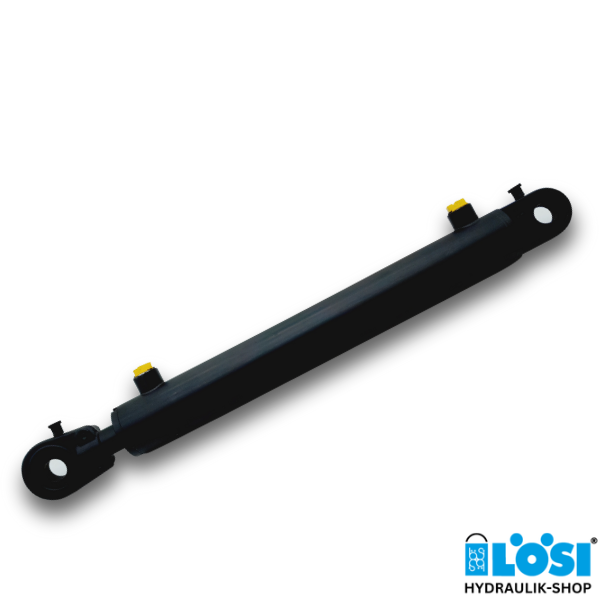

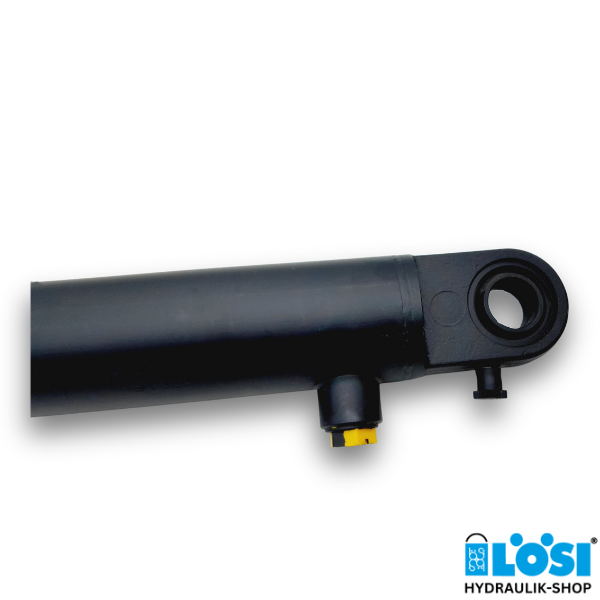

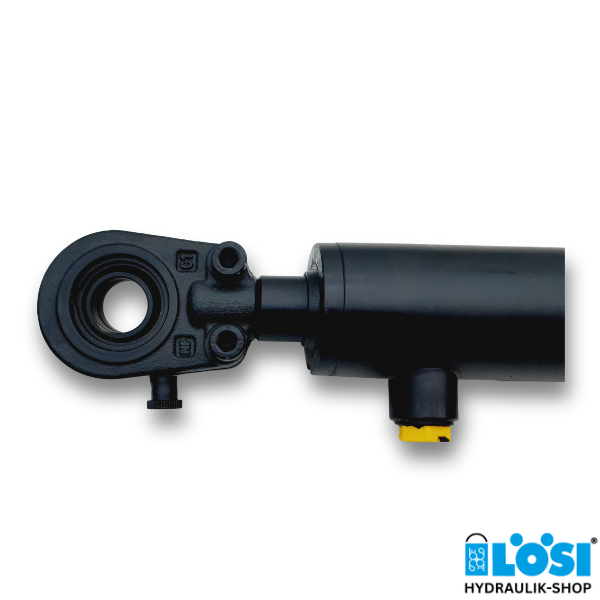

Double-acting Hydraulic Cylinder DW40/25-300 with Ball Joint
NEW
Double-acting Hydraulic Cylinder DW40/25 Stroke 300mm with Ball Joint
General Data:
- Double-acting hydraulic cylinder with ball joint mounting
- Stroke selectable from 100-500 mm

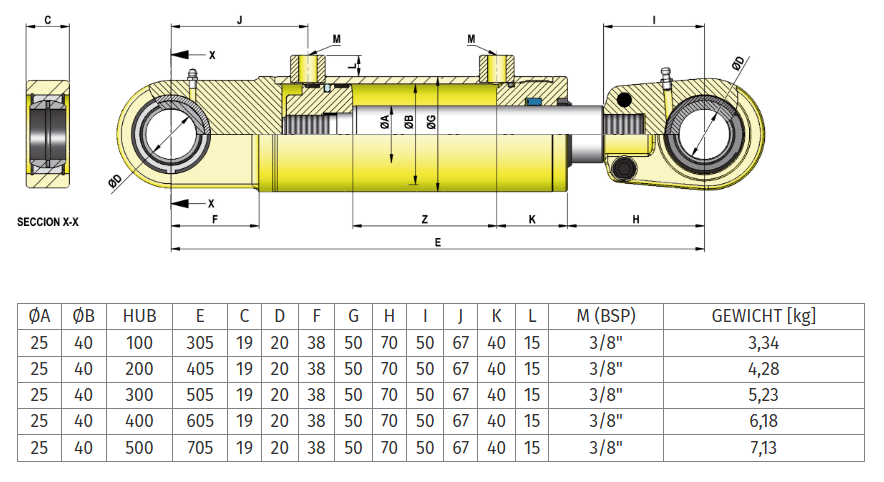

Technical Data:
- Ø piston: 40mm (other sizes on request)
- Ø piston rod: 25mm
- Stroke. 300 mm (other stroke lengths on request)
- Max. lifting speed: 0.5 m/s

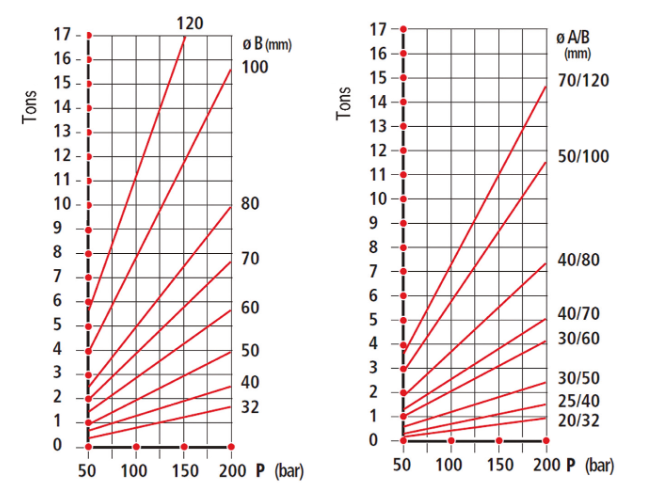

- Maximum pressing force approx. 2.5 tonnes
- Oil connections: 2x 3/8"
We have a large selection of hydraulik cylinders in our shop/catalog. If the cylinder you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
Do you have questions about our hydraulic cylinders? Do you need assistance with the right selection of your hydraulic zylinder? Then please feel free to contact us by phone at +49 631 351240, via our contact form, by email at shop@loesi.de or via What's App.
