Description

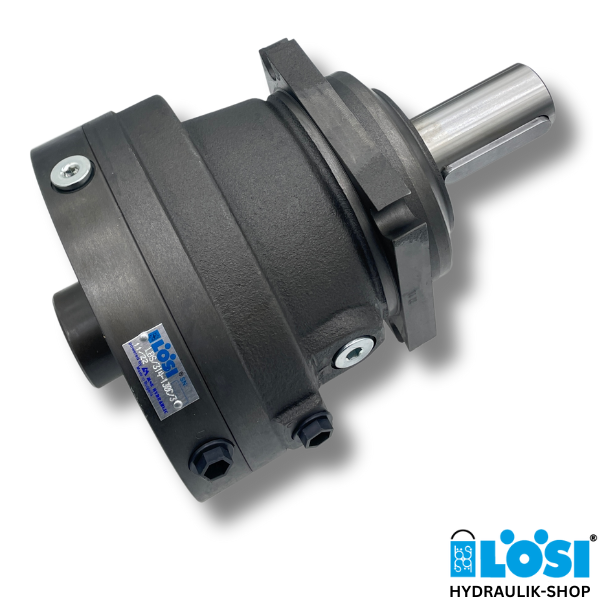

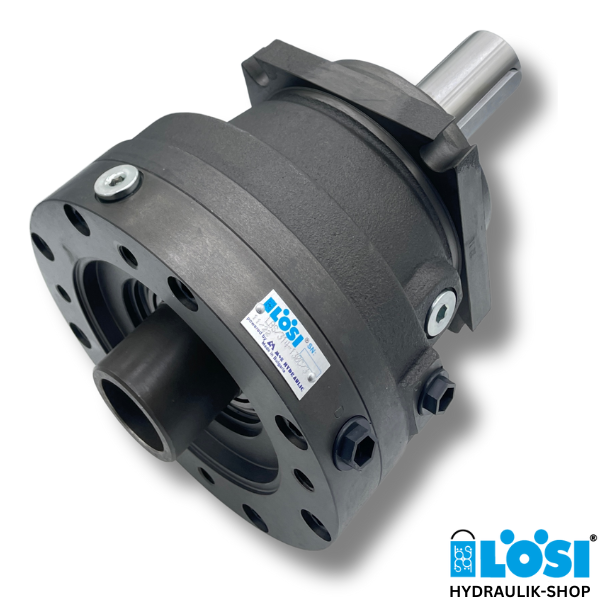

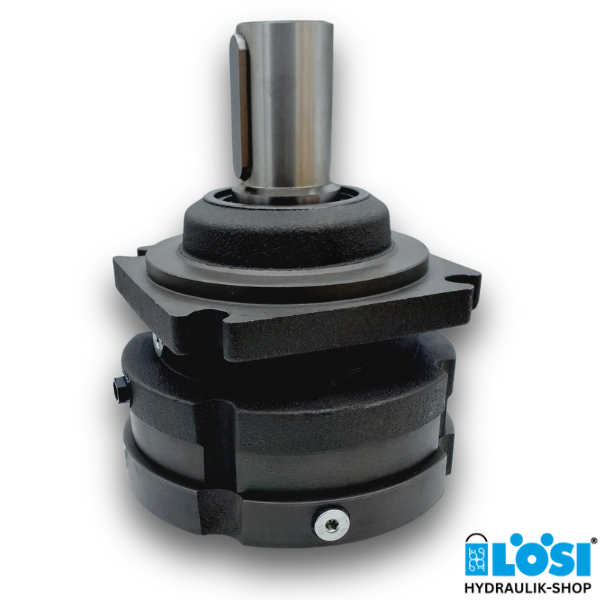

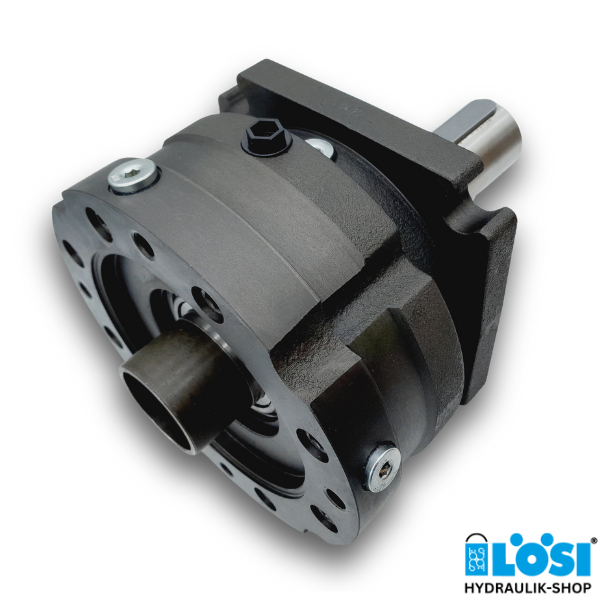

Hydraulic multi-disc brake ELB 313/130 C, for hydraulic motor EPMV-S, output shaft cylindrical Ø 50mm

Specifications:

  • Static torque: 1270-1370 Nm
  • Output shaft: Cylindrical: Ø 50 mm
  • Ports: Brake release / Drainage tap: G1/4 inch
  • Brake leakage oil connection: G1/4 inch
  • Suitable for hydraulic motor: EPMT-V (with hole distance: Ø 200 mm)
  • Before commissioning, fill approx. 250 ml of hydraulic oil into connection "D" (see data sheet)

Technical Data:

  • min. opening pressure: 27-29 bar
  • max. opening pressure: 300 bar

Download datasheet ELB

Special features or special paint with RAL-code are available for the most types. Please ask us for more information.

Do you have any questions about our hydraulic disc brake ELB. Do you need support in choosing the right ELB hydraulic disc brake? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
