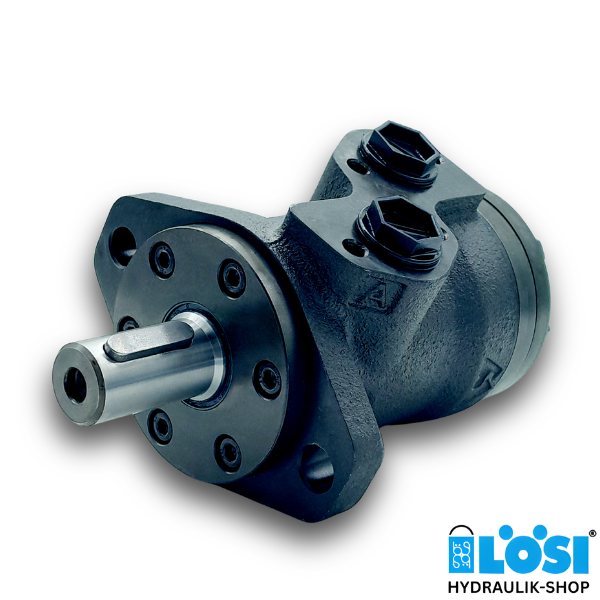

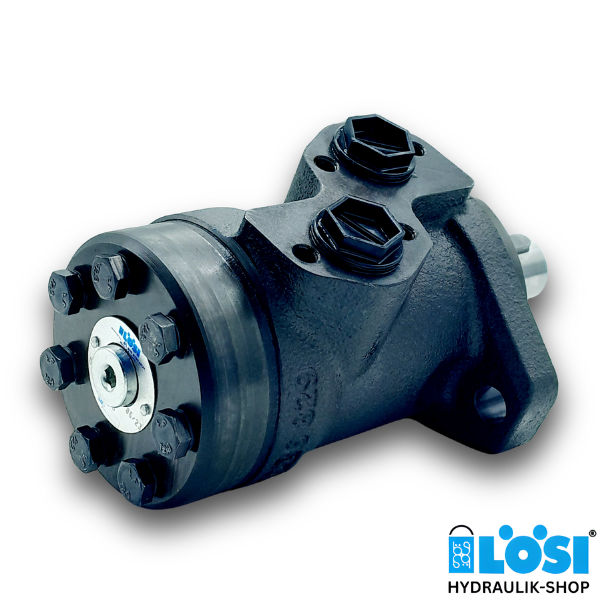

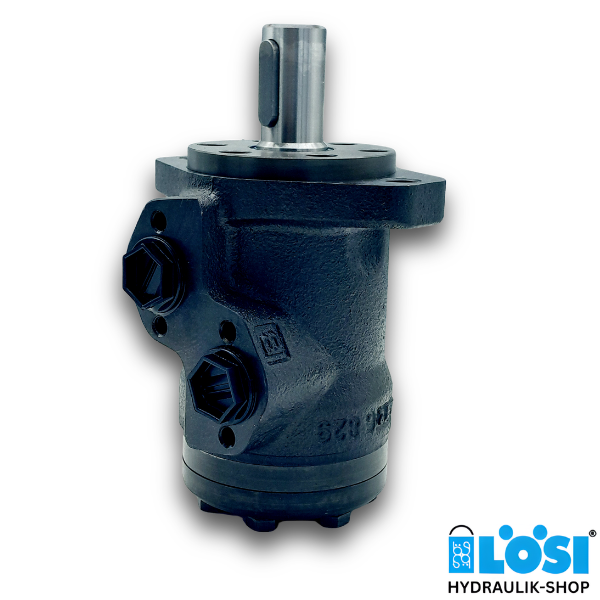

EPM 100 C D SG RAL7024, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with High Pressure Seal and Seal Guard, Corrosion Protected Paint
Specifications:
- Displacement [ccm/rev]: 99.0
- Side ports 2x G 1/2 inch BSPP
- Shaft: cylindrical Ø 25 mm, with high pressure seal "D" and with seal guard "SG"

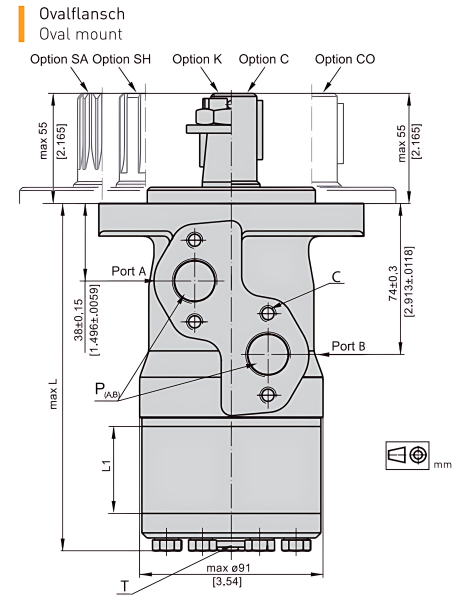

- Oval mount 2-holes (hole distance: 106.4 mm)
- Corrosion protected paint RAL7024
Technical Data (for continuous use):
- max. speed: 605 rev/min
- max. torque: 193 Nm
- max. output: 10.5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMP160 (151-0031, 151-0314, 151-0614, 151-0624)
- Danfoss VMP 160 (11118248, 11115010)
- M+S Hydraulic (MP160C, MP160CD)
- Hydraulik Nord GMP 160 (610-K202)
- White WD (145160A6812AAAAA)
- Eaton H-Serie (101-2161-009)
- SAM / Brevini BGE (BGE1602AM08CL250N)
Do you have any questions about our hydraulic motor type EPM? Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
