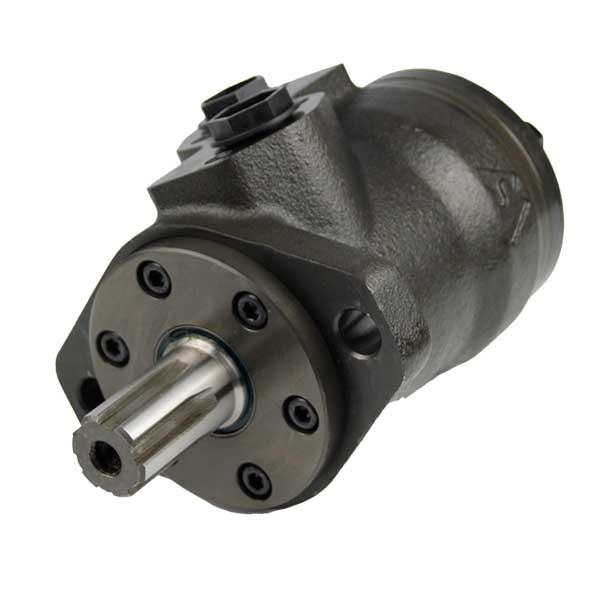

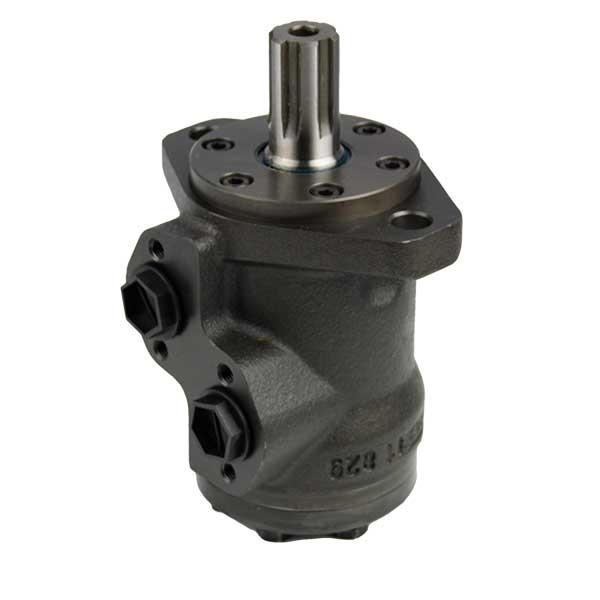

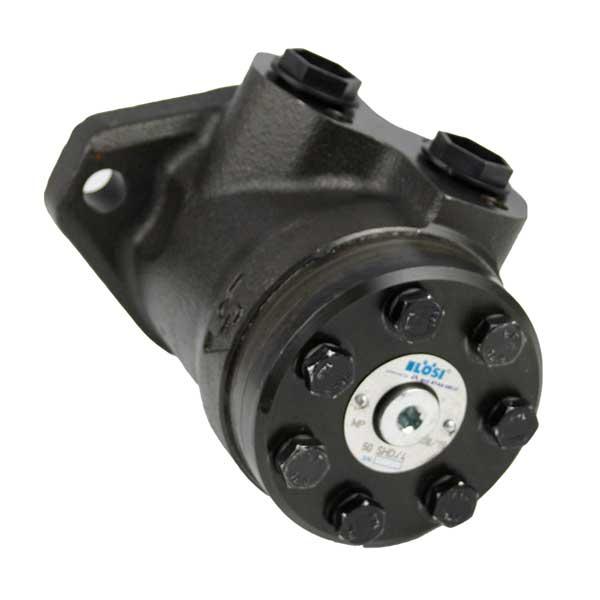

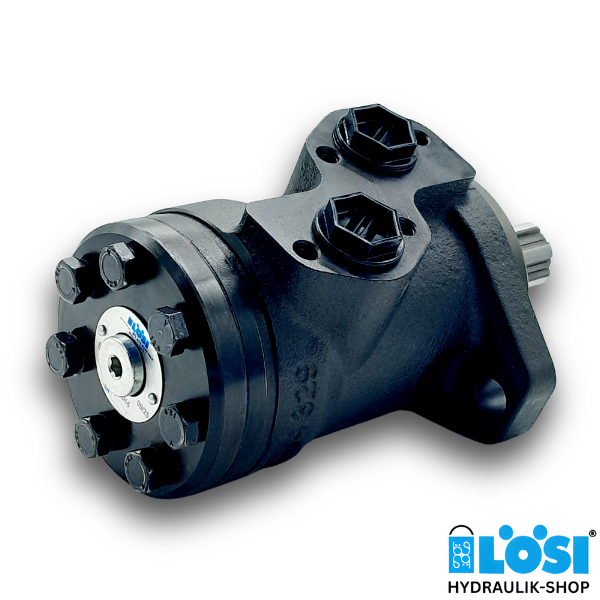

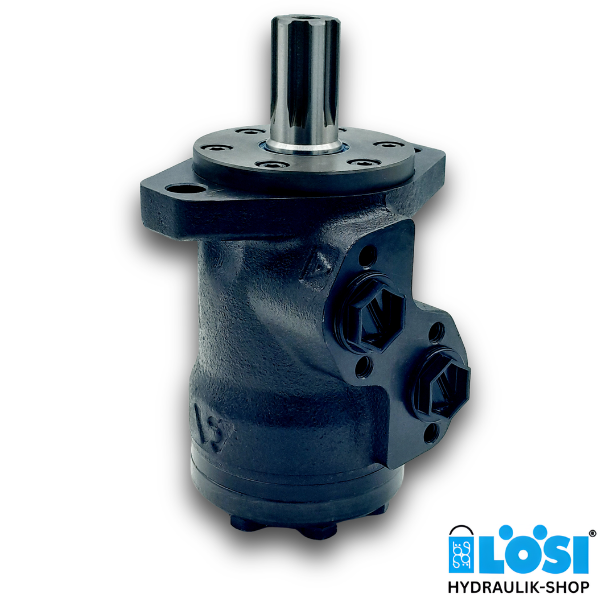

EPM 125 SH D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 123,8
- Side ports 2x G 1/2 inch BSPP
- Shaft: Splined (SAE 6B): Ø 25,32 mm, with high pressure seal "D"

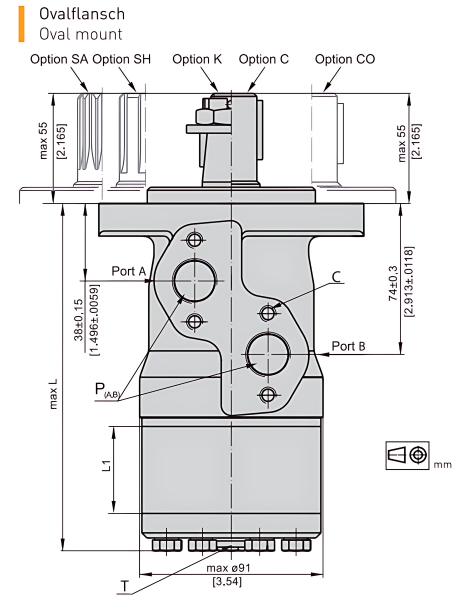

- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 486 rev/min
- max. torque: 237 Nm
- max. output: 10,2 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 150 bar
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMP 125 (151-0333, 151-0633)
- M+S Hydraulic (MP125SH)
- Hydraulik Nord GMP 125 (610-H104, 610-H204)
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
