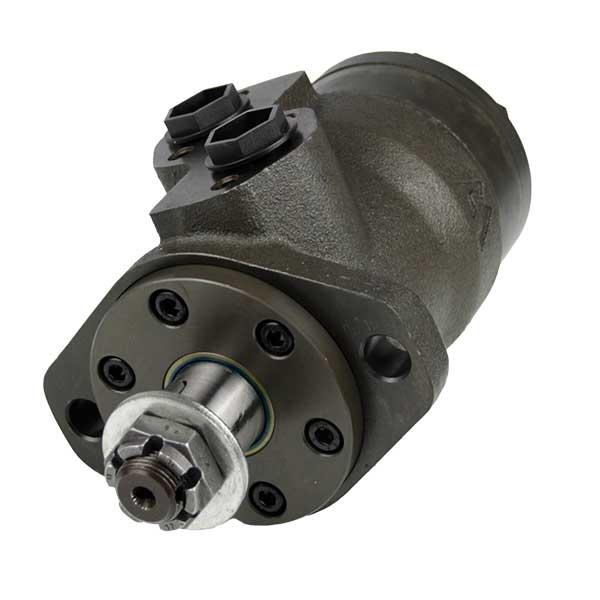

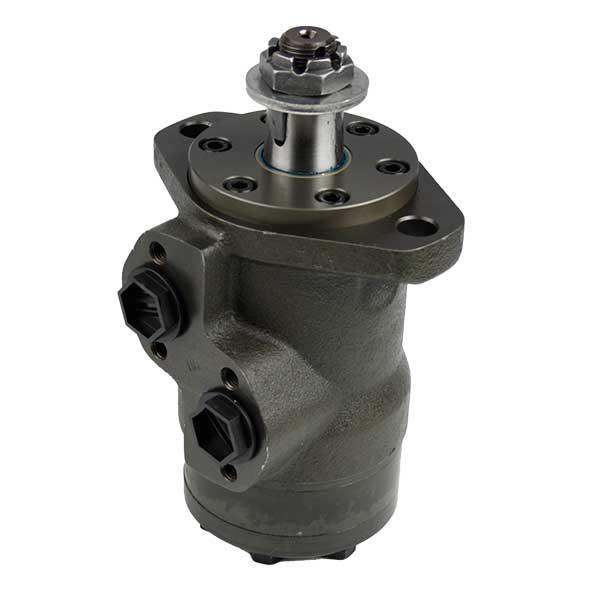

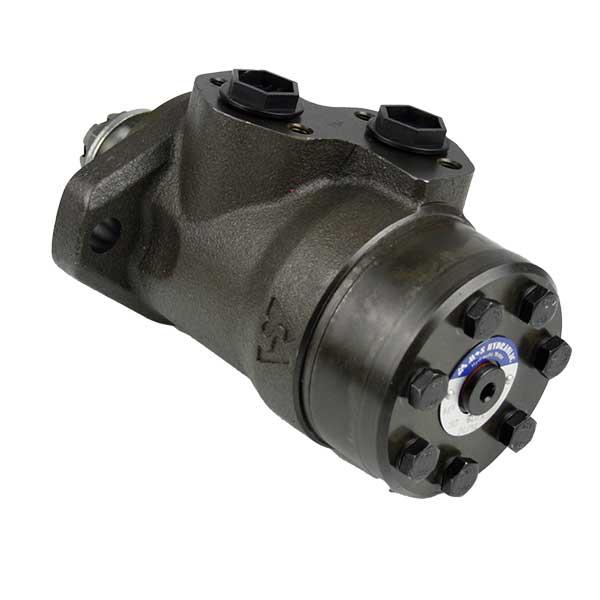

EPM 160 K D Hydraulic Motor

EPM 160 K D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 158.4
• Side ports 2x G1/2 inch BSPP
• Shaft: Tapered: 1:10, Ø 28.54 mm, with high pressure seal "D"
• Oval mount 2-holes (hole distance: 106.4 mm)

Technical Data (for continuous use):

• max. speed: 378 rev/min
• max. torque: 313 Nm
• max. output: 10.1 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
