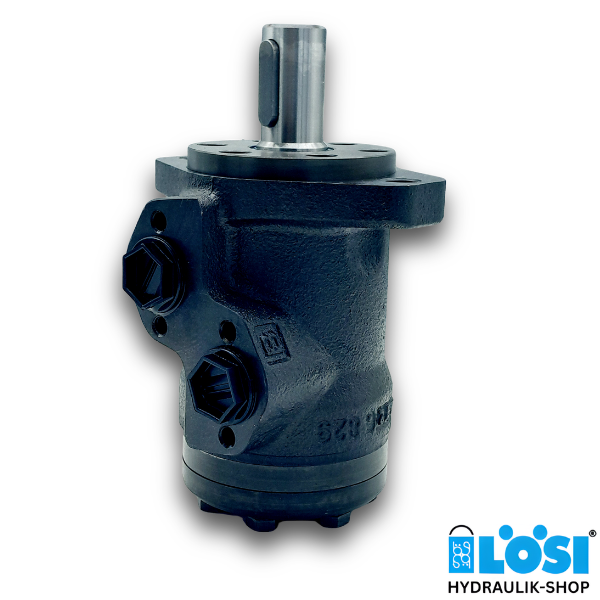

EPM 25 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 28.4
Side ports 2x G 1/2 inch BSPP
Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
Oval mount 2-holes (hole distance: 106.4 mm)

Technical Data (for continuous use):

max. speed: 1408 rev/min
max. torque: 33 Nm
max. output: 4.5 kW
max. oil flow: 40 l/min
max. inlet pressure: 175 bar
minimum speed: 20 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
