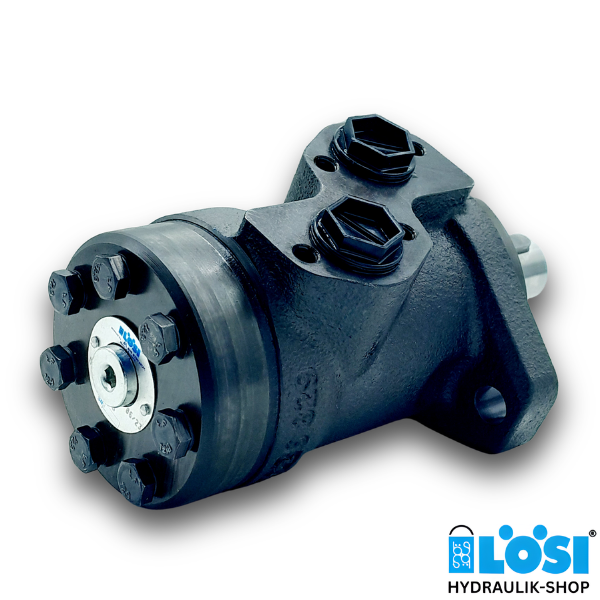

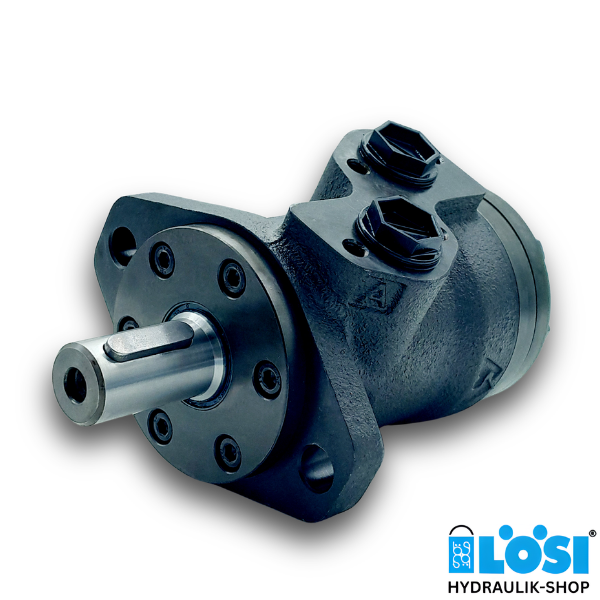

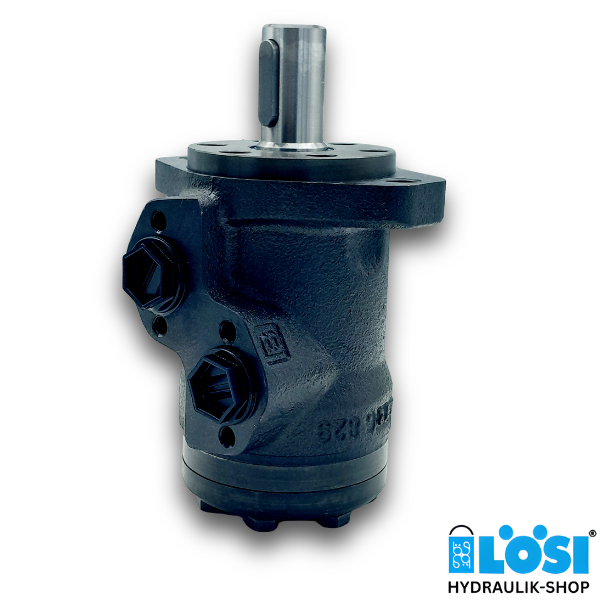

EPM 250 CO D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 247.5
- Side ports 2x G 1/2 inch BSPP
- Shaft: Cylindrical: Ø 1 inch (25,4mm), with high pressure seal "D"

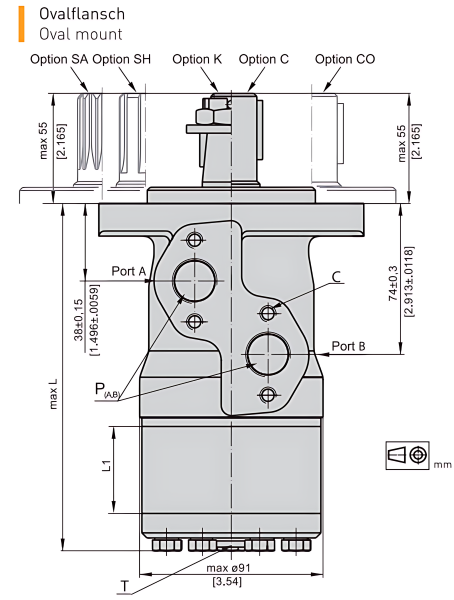

- Oval mount 2-holes (hole distance: 106.4 mm)
Technical Data (for continuous use):
- max. speed: 242 rev/min
- max. torque: 380 Nm
- max. output: 7.5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMP250 (151-0048, 151-0306, 151-0606)
- M+S Hydraulic (MP250CO, MP250COD)
- Hydraulik Nord GMP 250 (610-M205)
