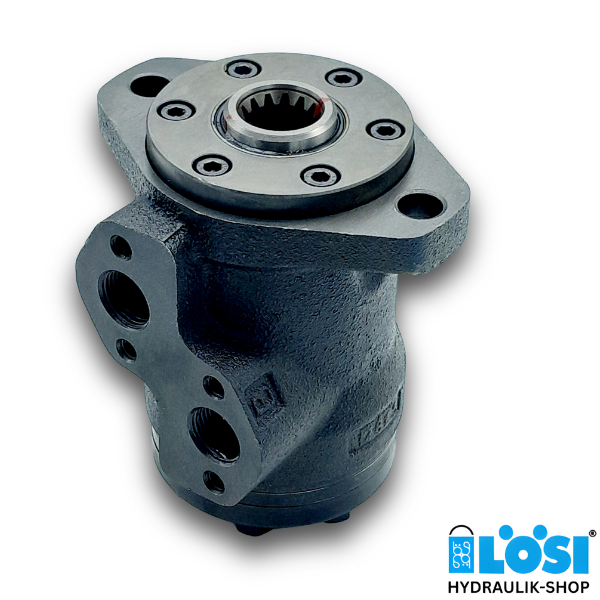

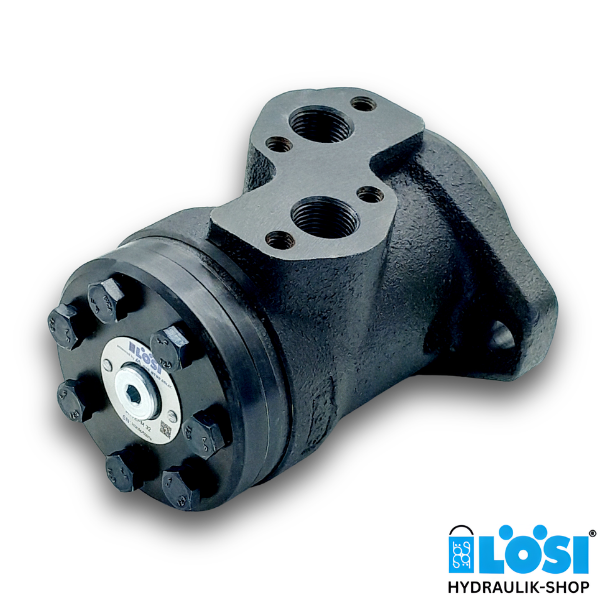

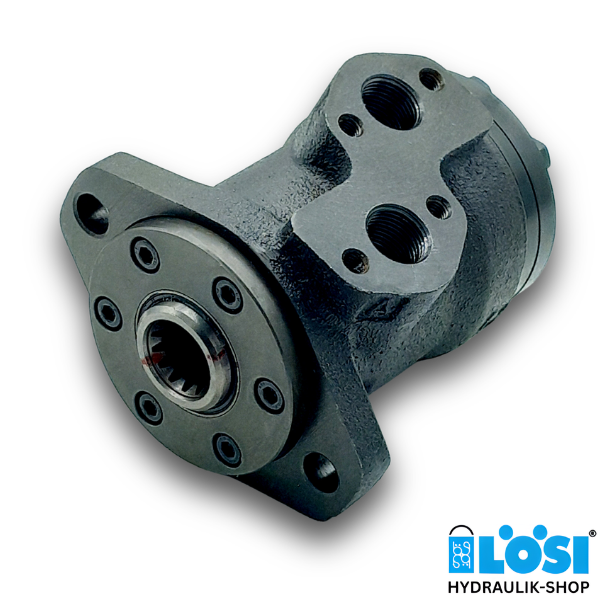

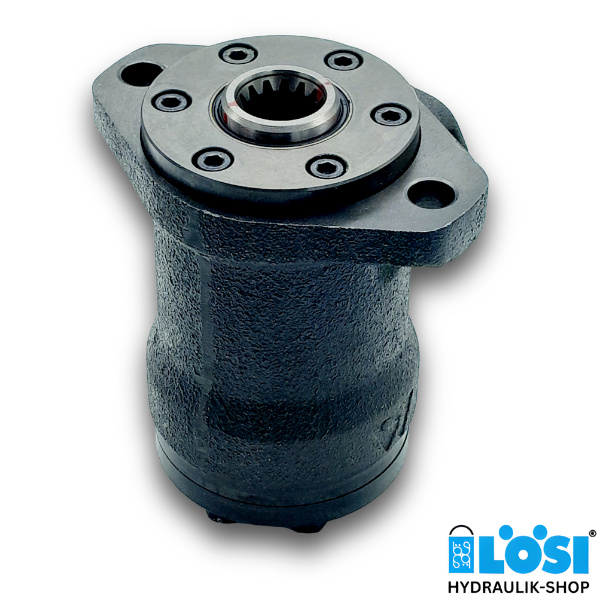

EPM 32 SB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 34.5

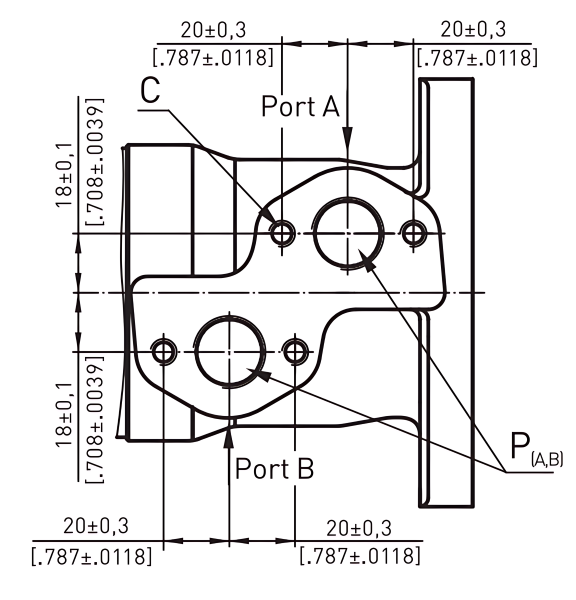

- Side ports 2x G 1/2 inch BSPP
- Shaft: Internal splined A25x22
- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 1450 rev/min
- max. torque: 43 Nm
- max. output: 5,8 kW
- max. oil flow: 50 l/min
- max. inlet pressure: 175 bar
- minimum speed: 15 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for most motor types. Please ask us for more information.
We have a large selection of motors in our shop/catalog. If the motor you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
