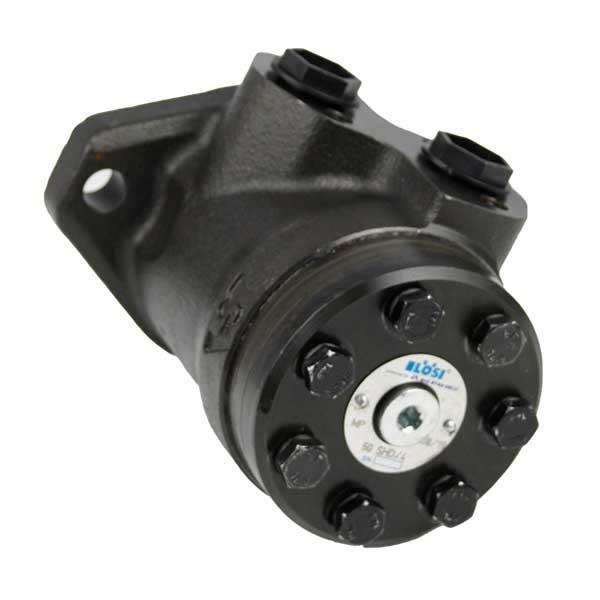

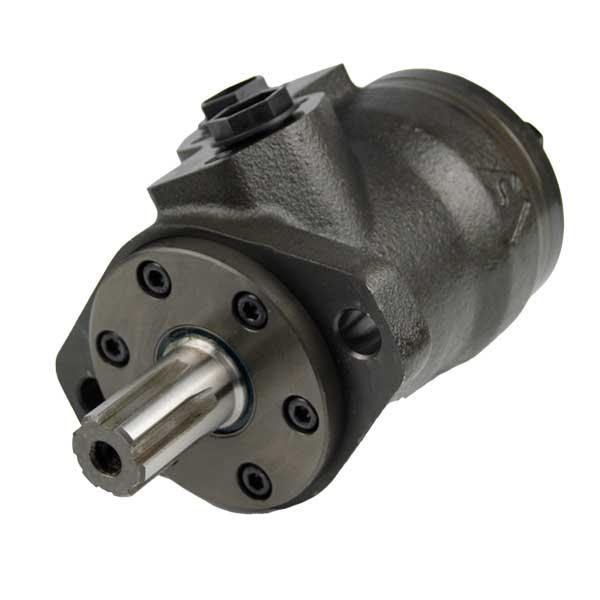

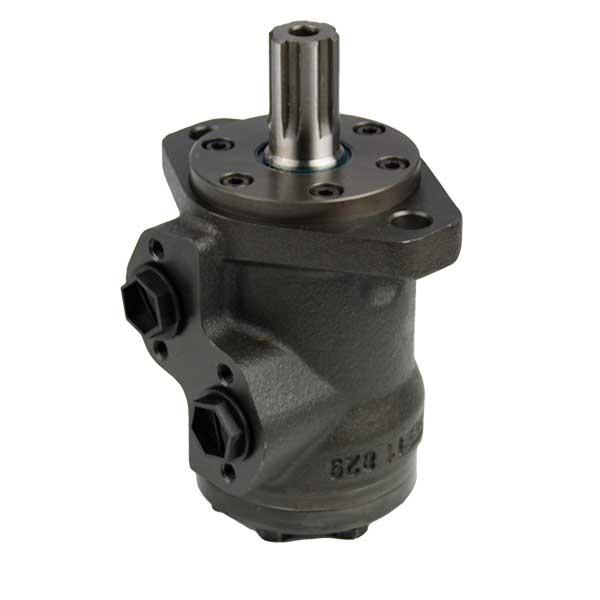

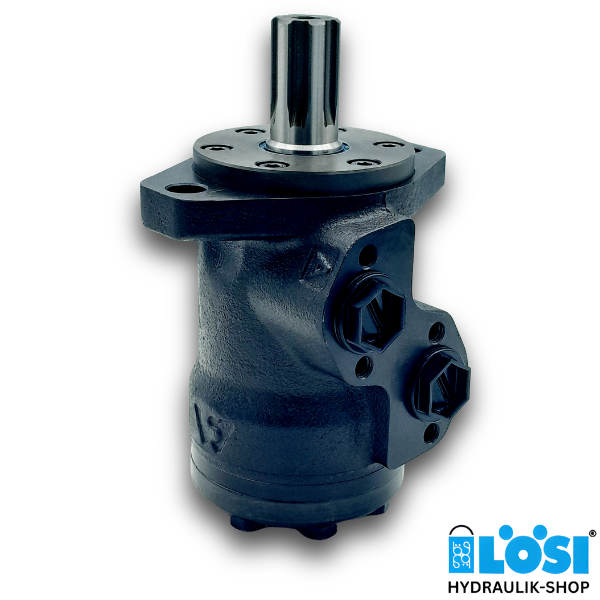

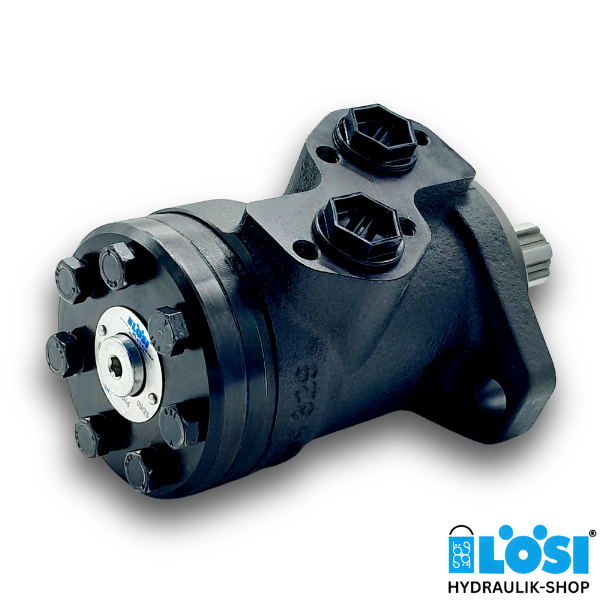

EPM 400 SH D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 396
Side ports 2x G 1/2 inch BSPP
Shaft: Splined (SAE 6B): Ø 25,32 mm, with high pressure seal "D"

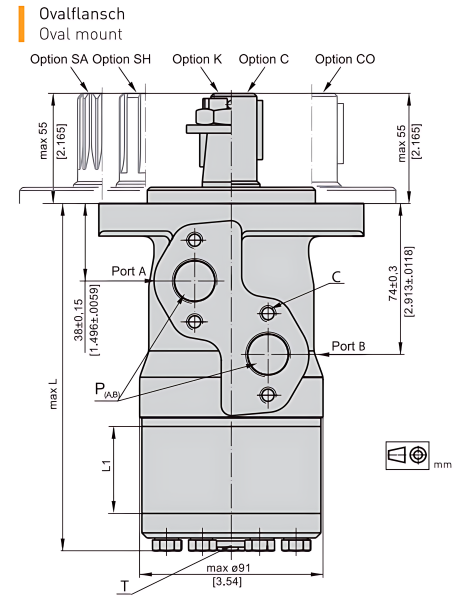

Oval mount 2-holes (hole distance: 106,4 mm)

Technical Data (for continuous use):

max. speed: 150 rev/min
max. torque: 360 Nm
max. output: 4,6 kW
max. oil flow: 60 l/min
max. inlet pressure: 175 bar
minimum speed: 10 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
