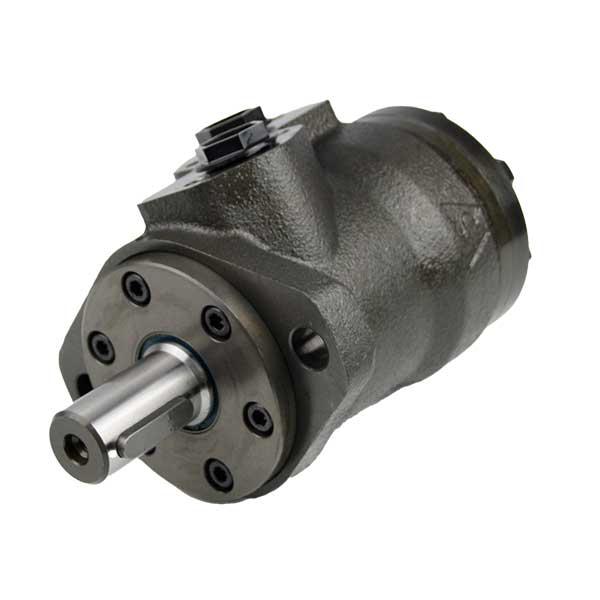

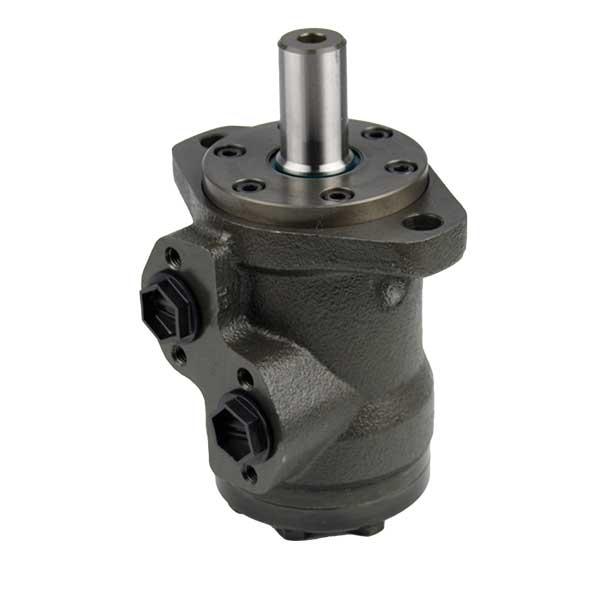

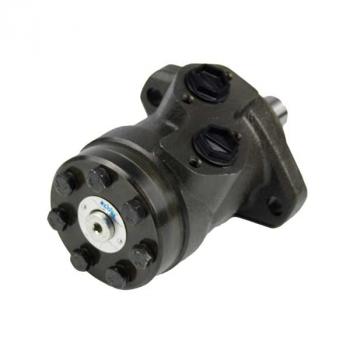

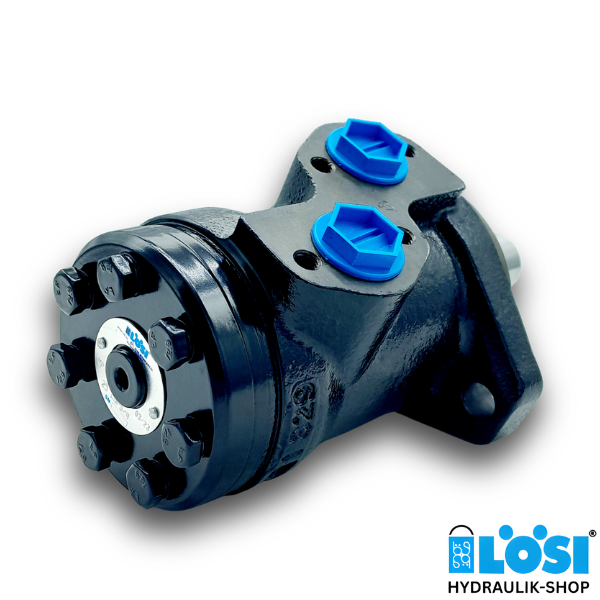

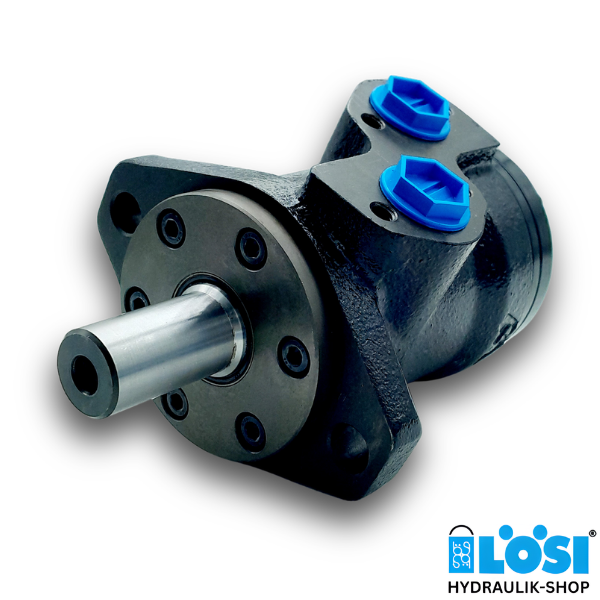

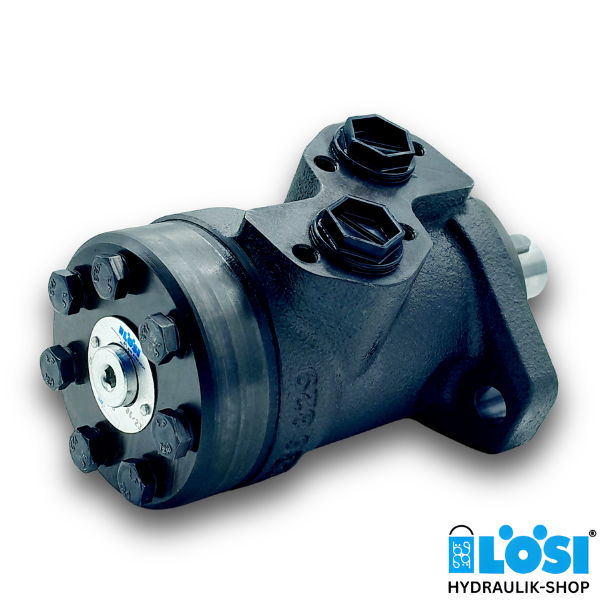

EPM 80 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 79.2
- Side ports 2x G 1/2 inch BSPP
- Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"

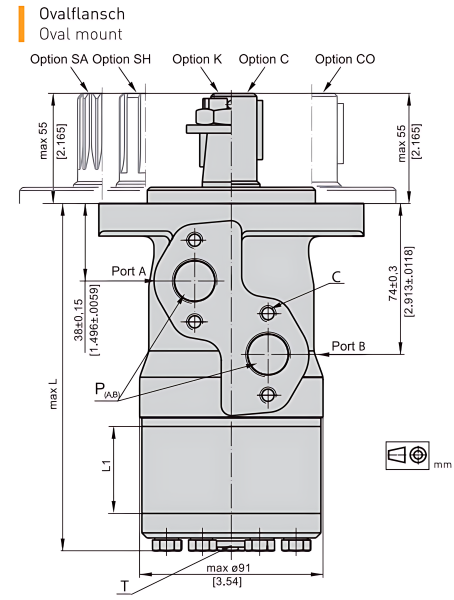

- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 755 rev/min
- max. torque: 151 Nm
- max. output: 10.2 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 150 bar
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMP80 (151-0029, 151-0311, 151-0611)
- Danfoss VMP 80 (11118245, 11118254)
- M+S Hydraulic (MP80C, MP80CD)
- Hydraulik Nord GMP 80 (610-F202)
- White WD (145080A6812AAAAA)
- Eaton H-Serie (101-2160-009)
- SAM / Brevini BGE (BGE0802AM08CL250N)
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
