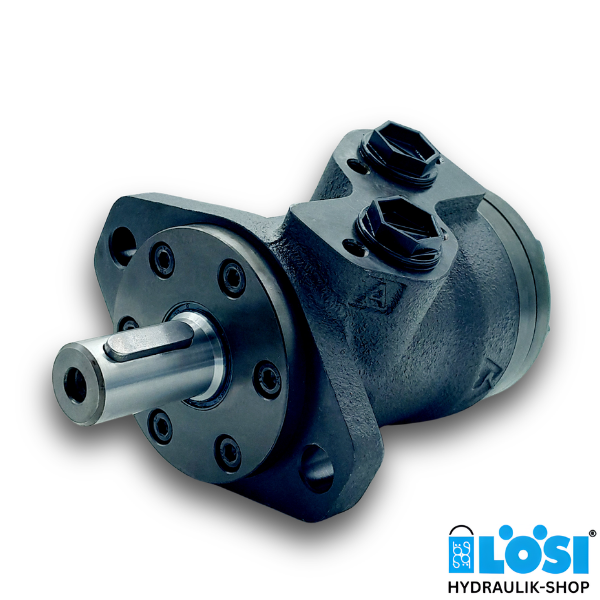

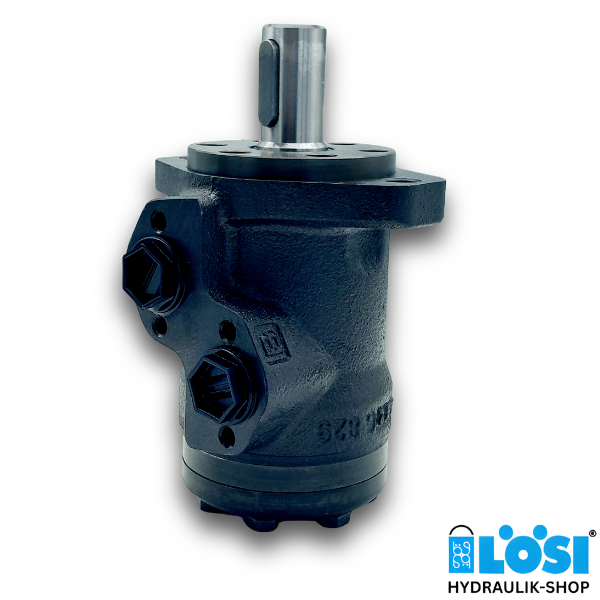

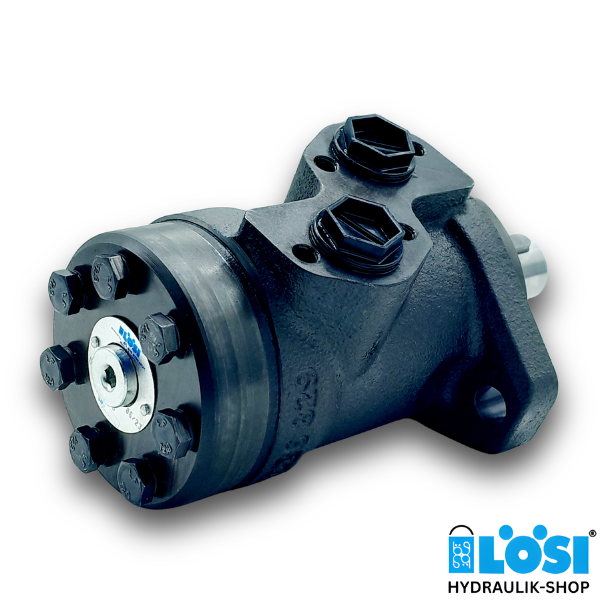

EPM 80 C D RS, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with RS Bore, without Sensor
Specifications:
- Displacement [ccm/rev]: 79.2
- Side ports 2x G 1/2 inch BSPP
- Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"

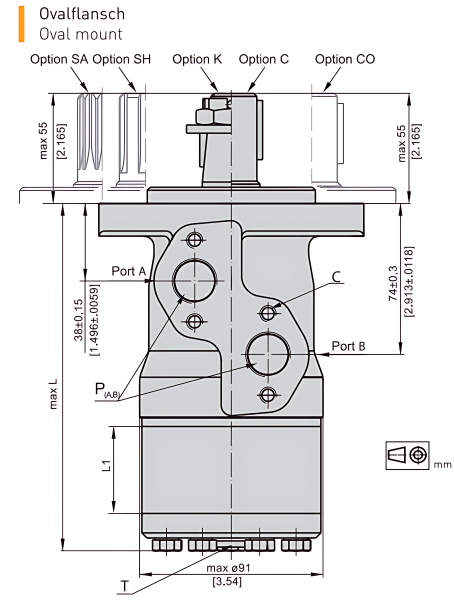

- Oval mount 2-holes (hole distance: 106.4 mm)
- With RS bore, without sensor
Technical Data (for continuous use):
- max. speed: 755 rev/min
- max. torque: 151 Nm
- max. output: 10,2 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
