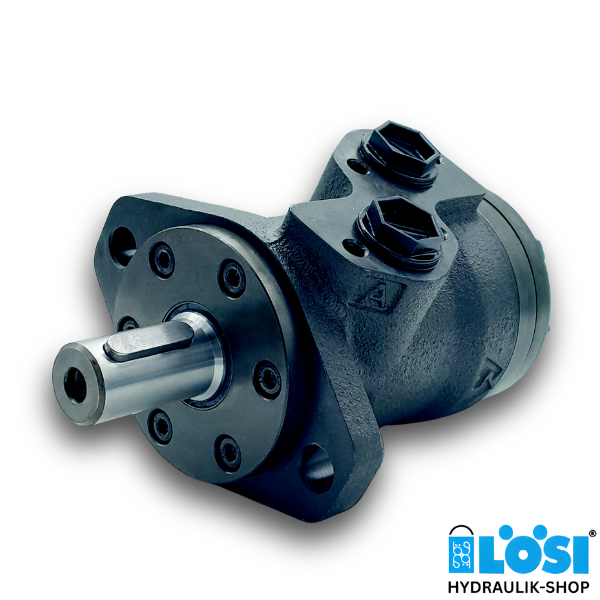

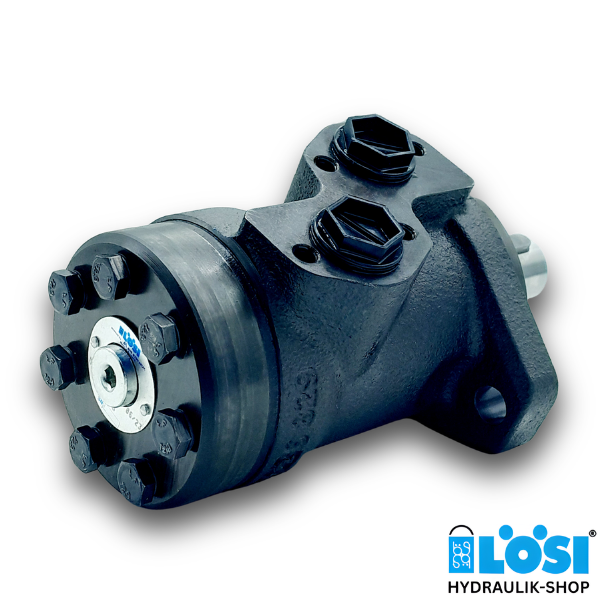

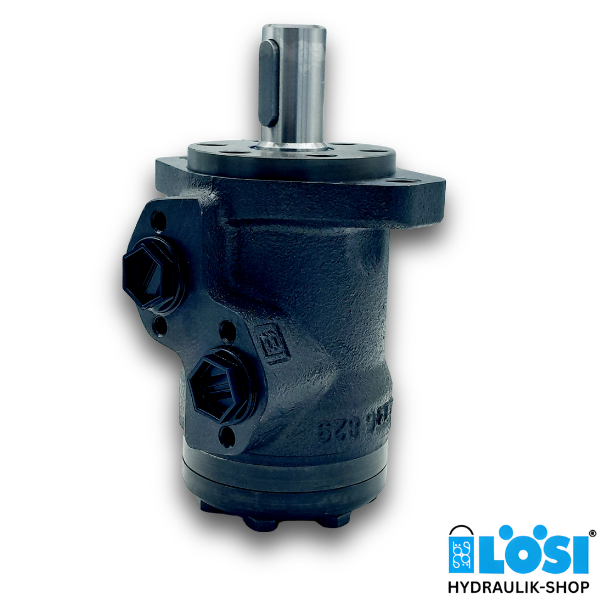

EPM 80 CO D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with High-Pressure Seal
Specifications:
- Displacement [ccm/rev]: 79.2
- Side ports 2x G 1/2 inch BSPP
- Shaft: cylindrical Ø 1 inch (25,4mm), with high pressure seal "D"

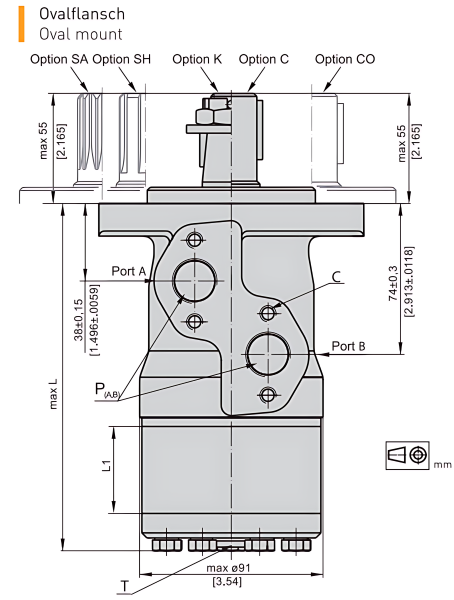

- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 755 rev/min
- max. torque: 151 Nm
- max. output: 10.2 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMP80 (151-0001, 151-0301, 151-0601)
- M+S Hydraulic (MP80CO, MP80COD)
- Hydraulik Nord GMP 80 (610-F2105, 610-F205)
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
