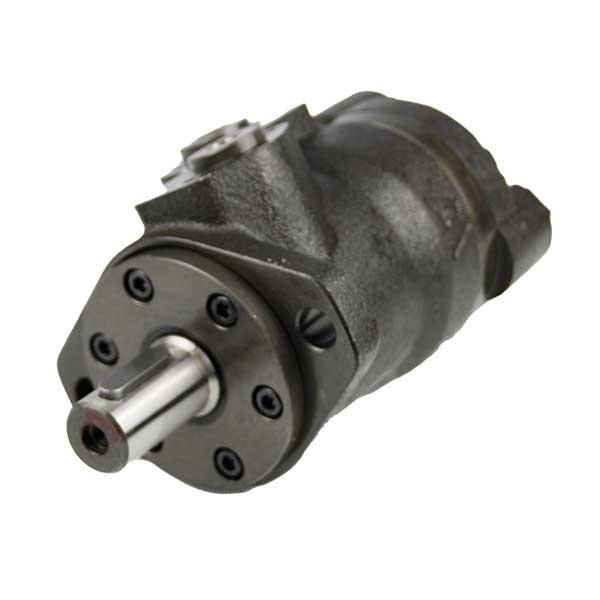

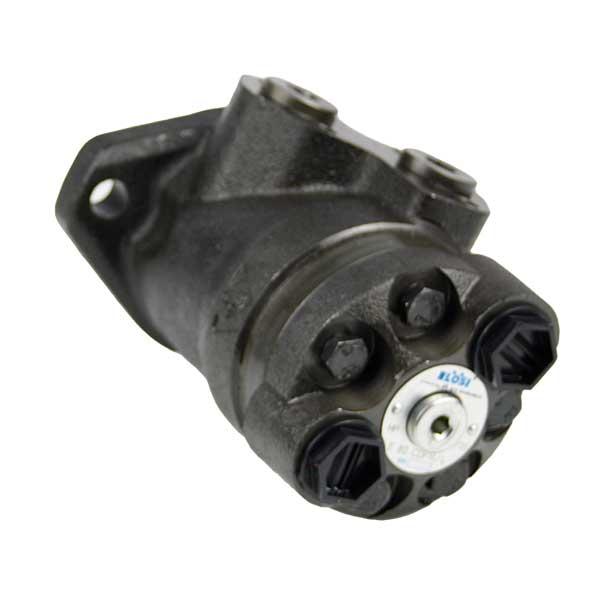

EPM-E 250 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 247,5
- Rear ports 2x G 1/2 inch BSPP
- Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 242 rev/min
- max. torque: 380 Nm
- max. output: 7,5 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 150 bar
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
