EPM-F 500 CB Hydraulic Motor

Approx. 8 Weeks Approx. 8 Weeks (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

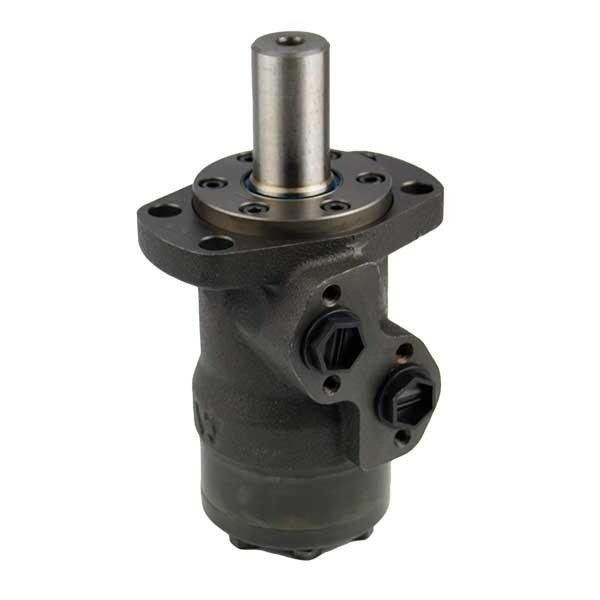

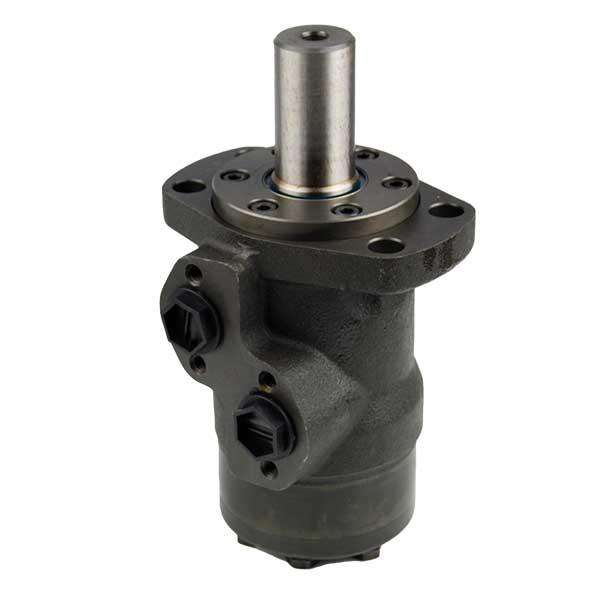

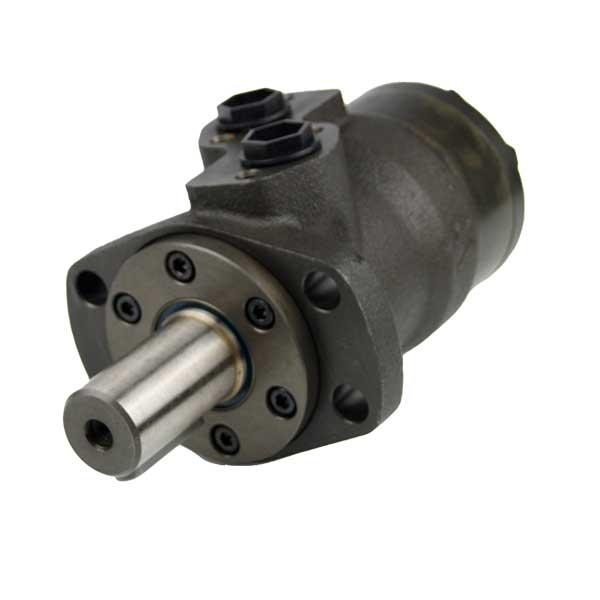

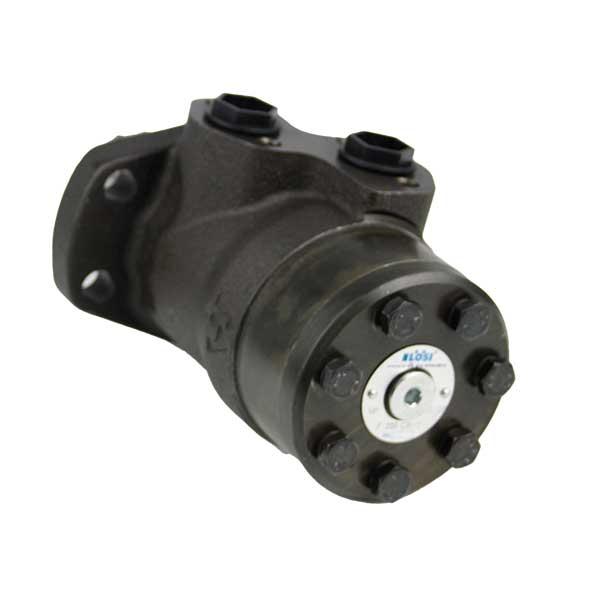

EPM-F 500 CB, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

  • Displacement [ccm/rev]: 495
  • Side ports 2x G1/2 inch BSPP
  • Shaft: Cylindrical: Ø 32 mm
  • Oval mount 4-holes (hole distance: 106,4 mm)

Technical Data (for continuous use):

  • max. speed: 120 rev/min
  • max. torque: 390 Nm
  • max. output: 3,5 kW
  • max. oil flow: 60 l/min
  • max. inlet pressure: 175 bar
  • minimum speed: 10 rev/min
  • max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform , by email at shop@loesi.de or with What's App .
