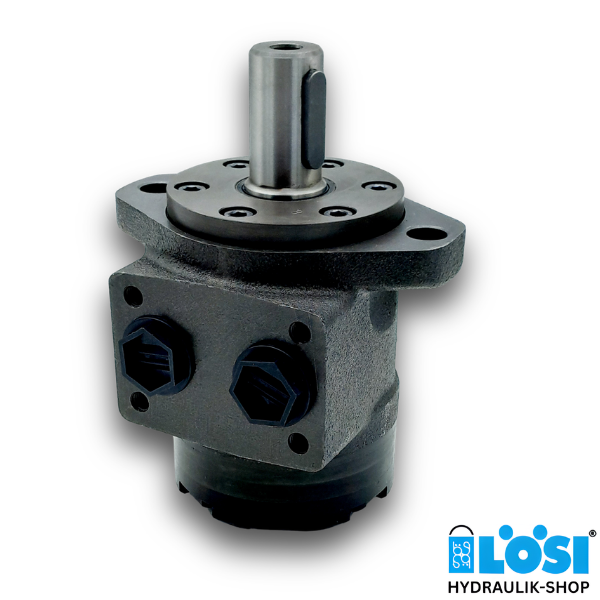

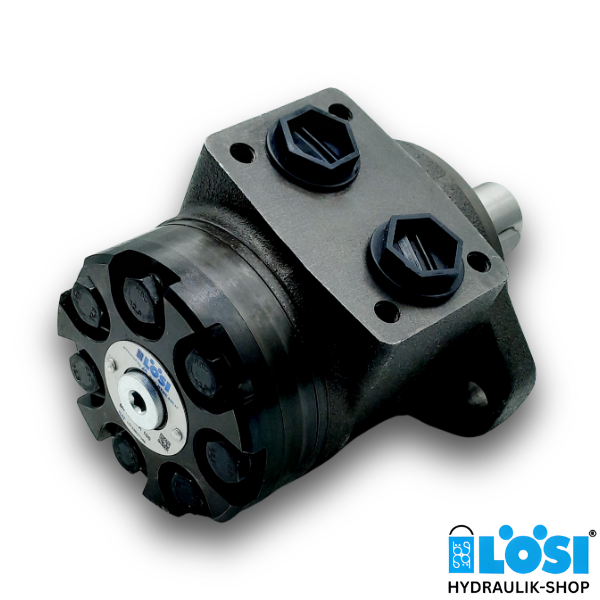

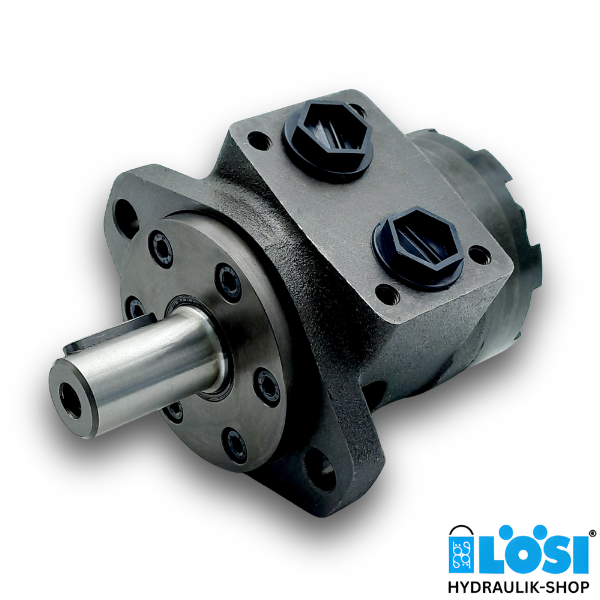

EPM-K 50 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, Short Version
Specifications:
- Displacement [ccm/rev]: 49.5

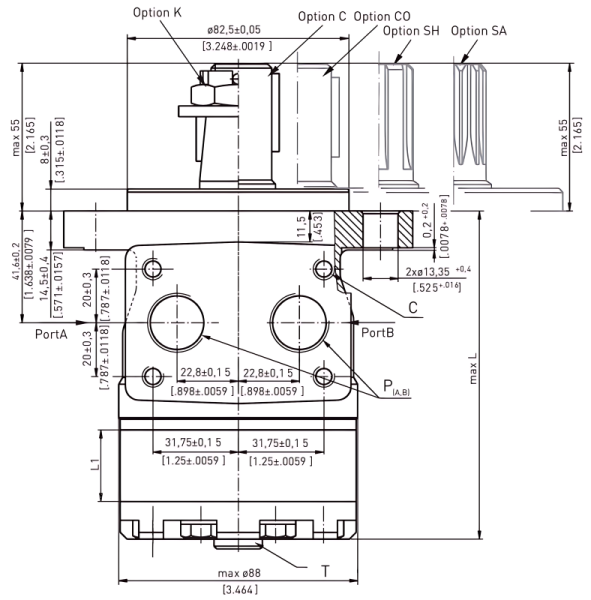

- Side ports 2x G 1/2 inch BSPP
- Shaft: cylindrical Ø 25 mm
- Oval mount 2-holes (hole distance: 106,4 mm)
Technical Data (for continuous use):
- max. speed: 1210 rev/min
- max. torque: 94 Nm
- max. output: 10,1 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
We have a large selection of motors in our shop/catalog. If the motor you require is not included in our range, we can supply many models at short notice. Just get in touch with us.
Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
