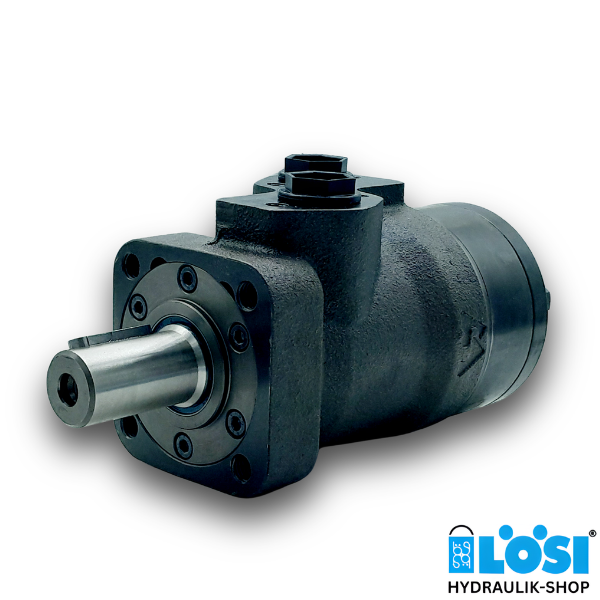

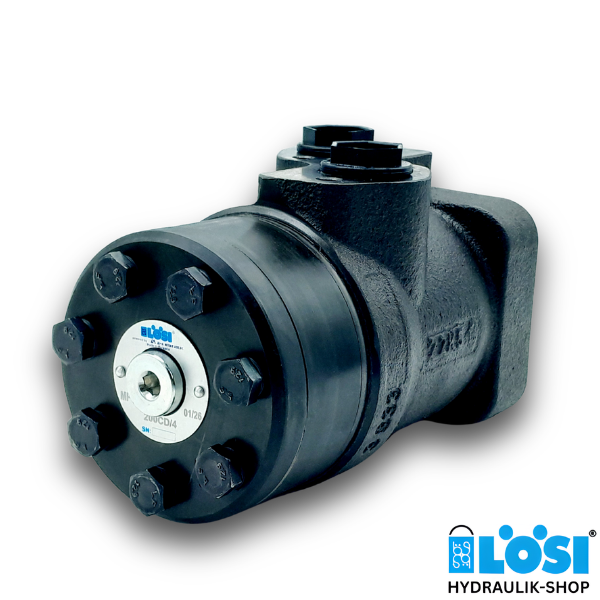

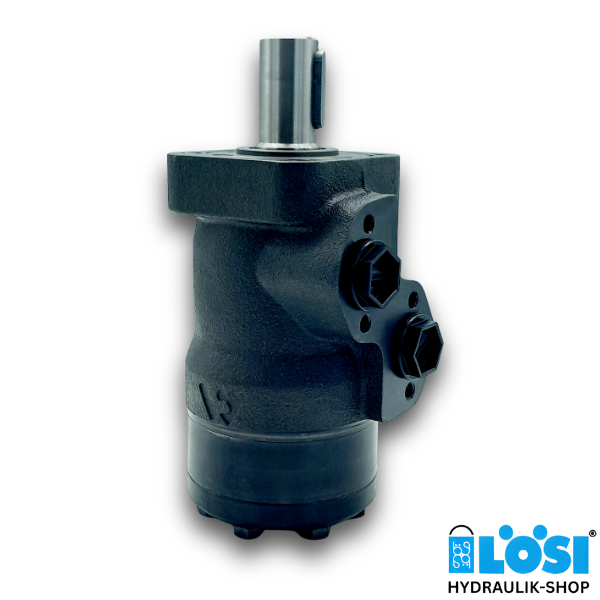

EPM-Q 630 C D Hydraulic Motor

EPM-Q 630 C D, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

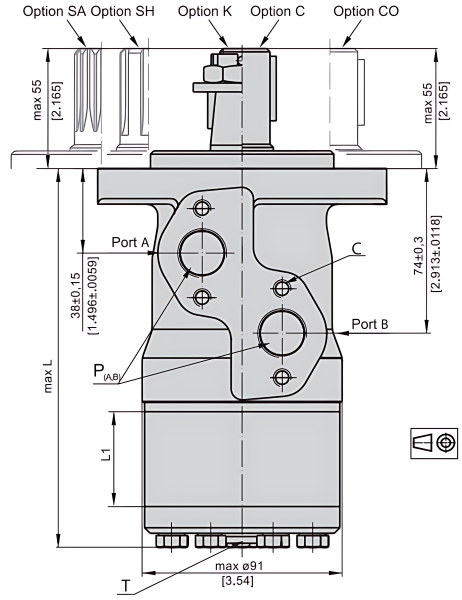

Specifications:

• Displacement [ccm/rev]: 623.6
• Side ports 2x G1/2 inch BSPP
• Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
• Square mount 4 Bolts with 4xM10 thread (hole distance: 82.55 mm)

Technical Data (for continuous use):

• max. speed: 95 rev/min
• max. torque: 440 Nm
• max. output: 3.3 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 150 bar

Download datasheet EPM

Special features like Low Leakage, Free Running, or special paint with RAL-code are available for the most motor types. Please ask us for more information.
