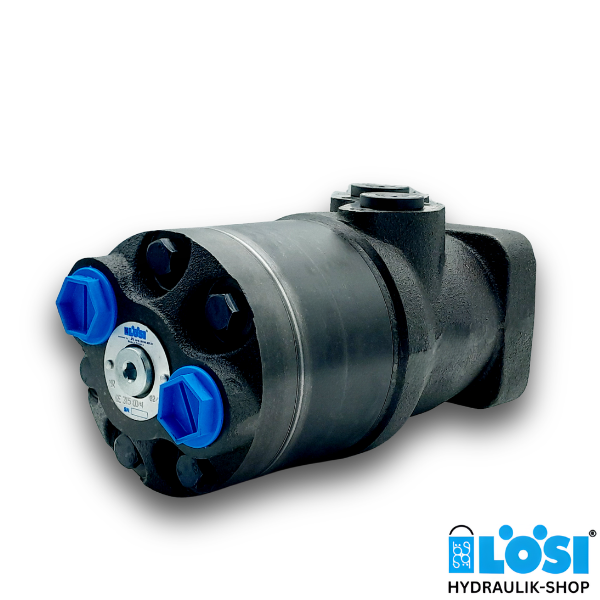

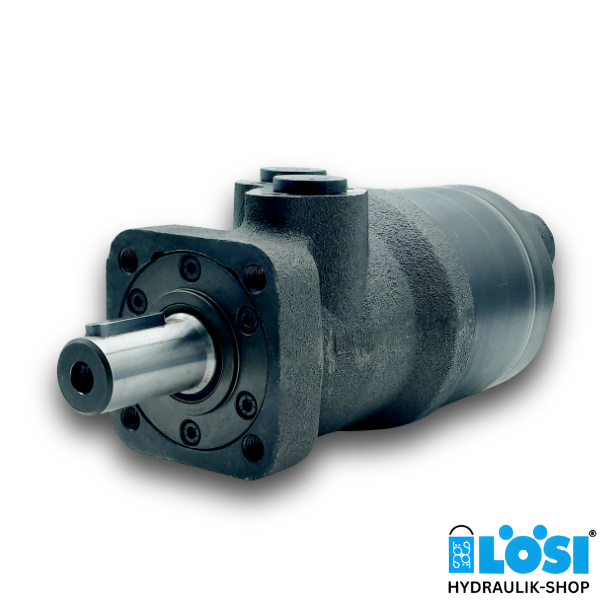

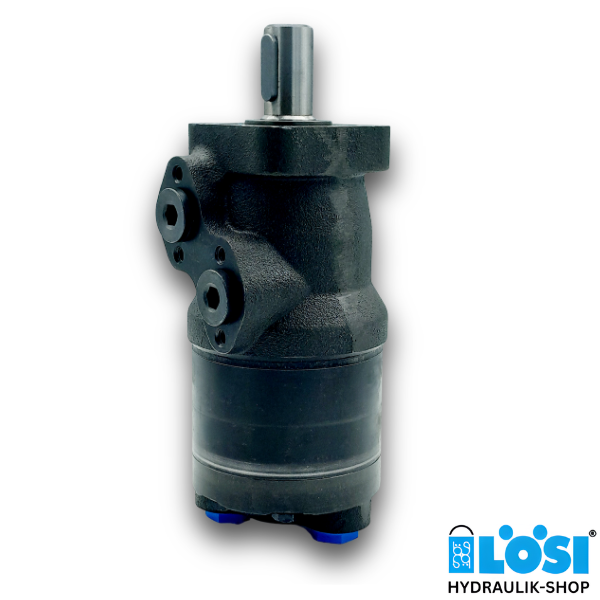

EPM-Q-E 160 CD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 158.4

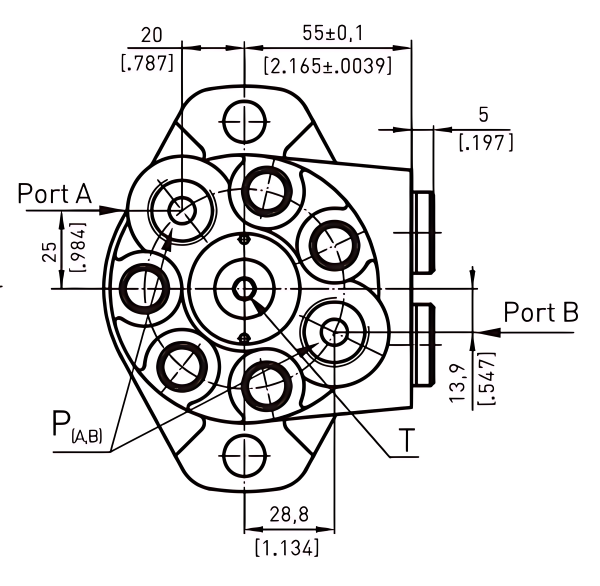

- Rear ports: 2x G 1/2 inch BSPP
- Shaft: Cylindrical Ø 25 mm
- 4-hole square flange (4xM10 threaded holes), bolt circle Ø 82.55 mm
Technical Data (for continuous use):
- max. speed: 378 rev/min
- max. torque: 313 Nm
- max. output: 10.1 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMPA 160 (151-5215)
- M+S Hydraulic (MP-Q-E 160 C)
Do you have any questions about our hydraulic motor type EPM? Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
