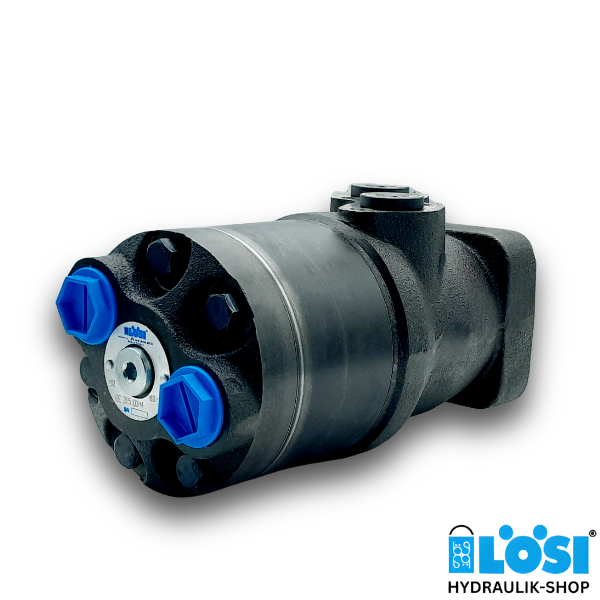

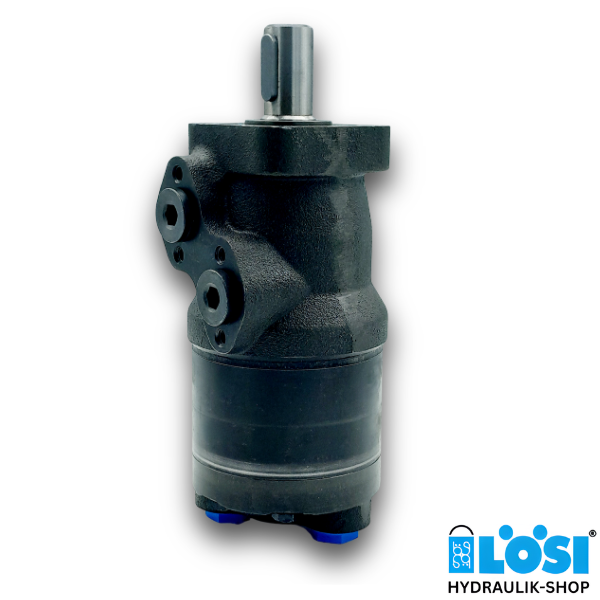

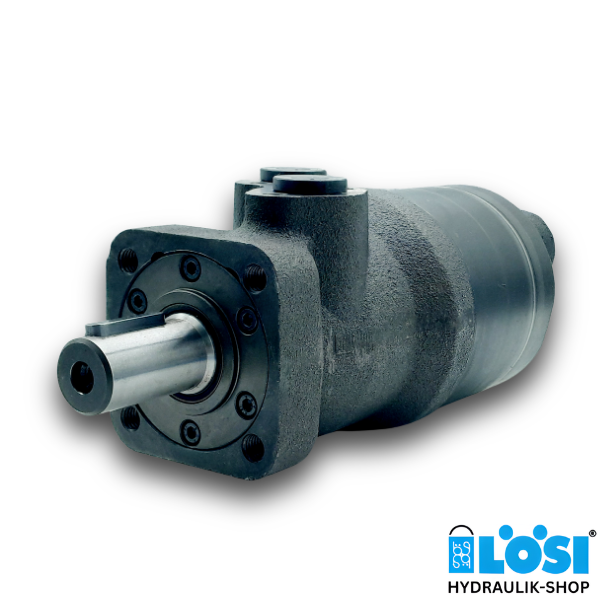

EPM-Q-E 50 CD, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 49.5

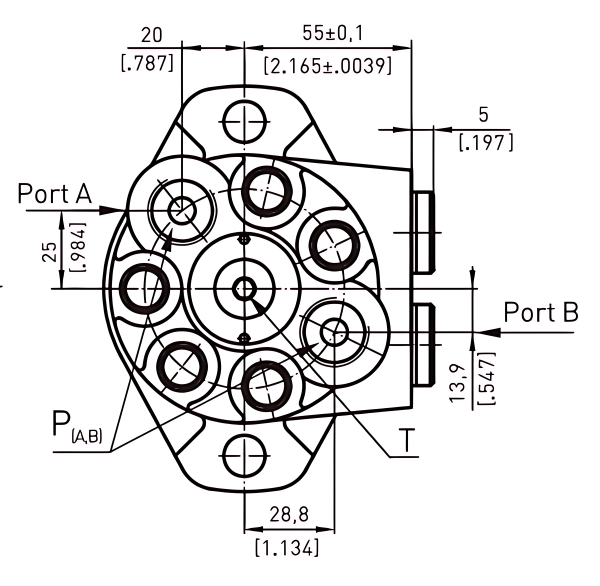

- Rear ports: 2x G 1/2 inch BSPP
- Shaft: Cylindrical Ø 25 mm
- 4-hole square flange (4xM10 threaded holes), bolt circle Ø 82.55 mm
Technical Data (for continuous use):
- max. speed: 1210 rev/min
- max. torque: 94 Nm
- max. output: 10.1 kW
- max. oil flow: 60 l/min
- max. inlet pressure: 175 bar
- minimum speed: 10 rev/min
Download datasheet EPM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss OMPA 50 (151-5211)
- M+S Hydraulic (MP-Q-E 50 C)
Do you have any questions about our hydraulic motor type EPM? Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
