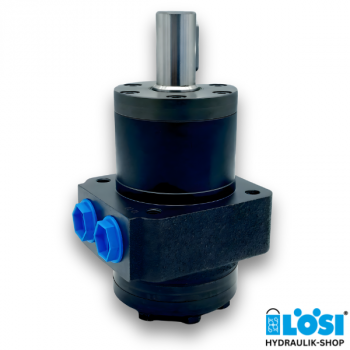

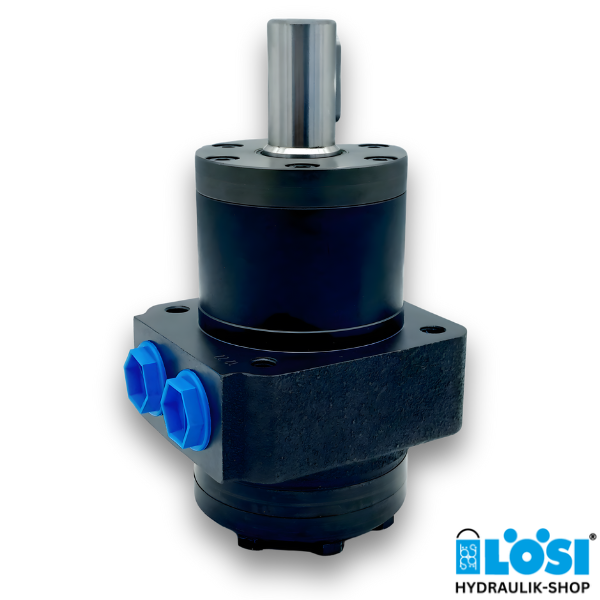

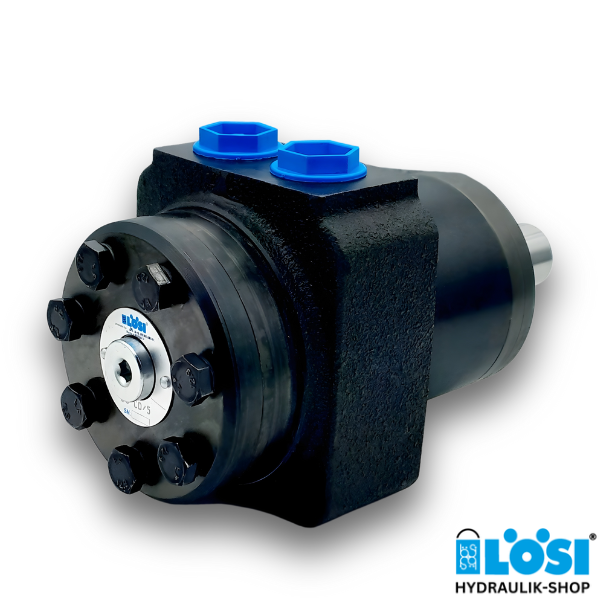

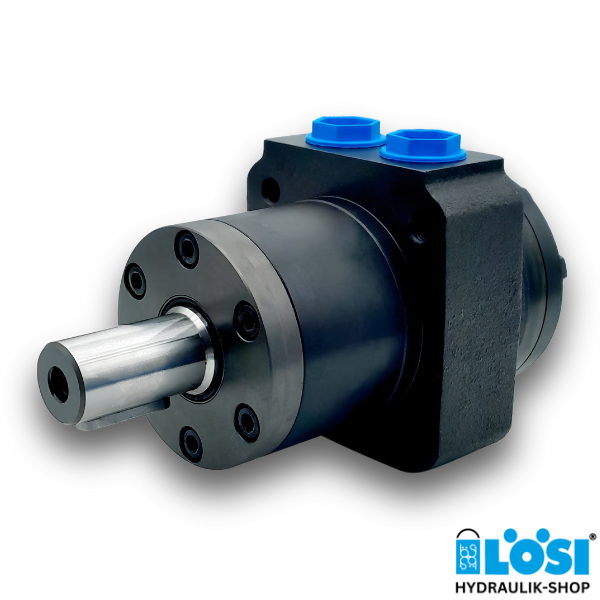

EPM-W-N 200 C D FR PC Hydraulic Motor

EPM-W-N 200 C D FR PC, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 198.0
• Side ports 2x G 1/2 inch BSPP
• Shaft: Cylindrical: Ø 25 mm, with high pressure seal "D"
• Wheel mount (hole distance: 103 mm)
• Free running
• Painted with corrosion protection

Technical Data (for continuous use):

• max. speed: 303 rev/min
• max. torque: 366 Nm
• max. output: 10.0 kW
• max. oil flow: 60 l/min
• max. inlet pressure: 175 bar
• minimum speed: 10 rev/min

Download datasheet EPM

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPM. Do you need support in choosing the right EPM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
