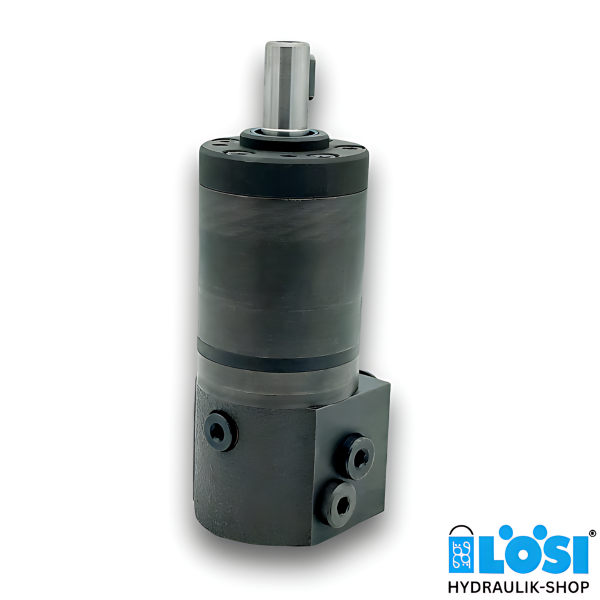

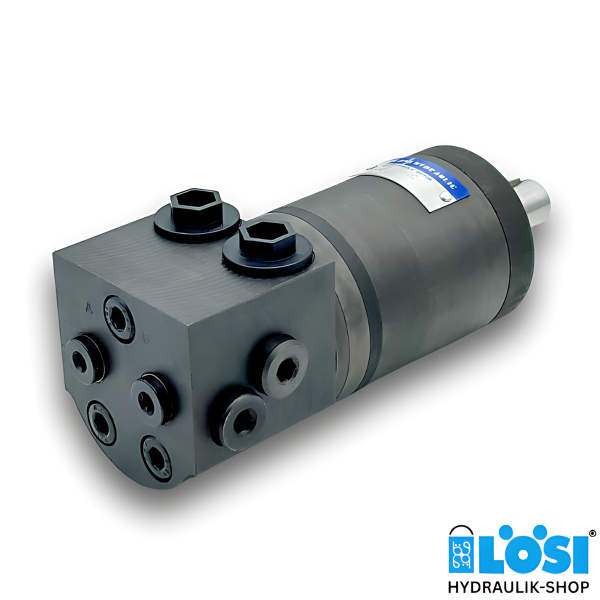

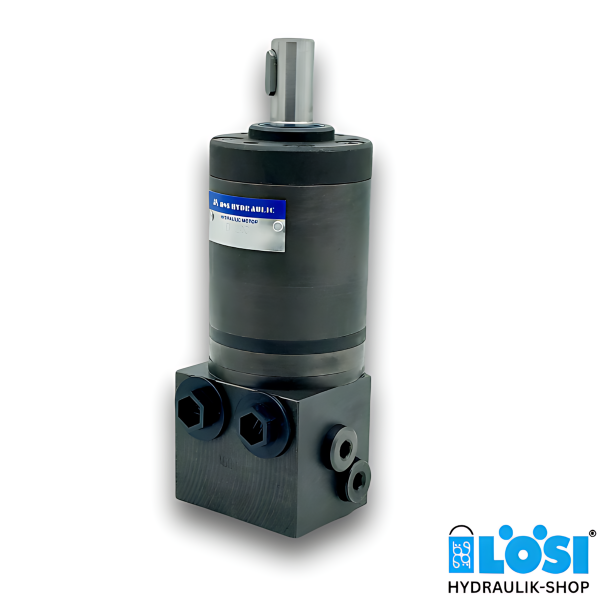

EPMM-D 20 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with PRV
Technical Data (for continuous use):
- Displacement [ccm/rev]: 20.0
- Side ports: 2x G 3/8 inch BSPP
- Shaft: cylindrical: Ø 16 mm
- max. speed: 1000 rev/min
- max. torque: 25 Nm
- max. output: 2,4 kW
- max. oil flow: 20 l/min
- max. inlet pressure: 140 bar
- with integrated double-acting PRV 50 bar
Download datasheet EPMM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMM? Do you need support in choosing the right EPMM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
