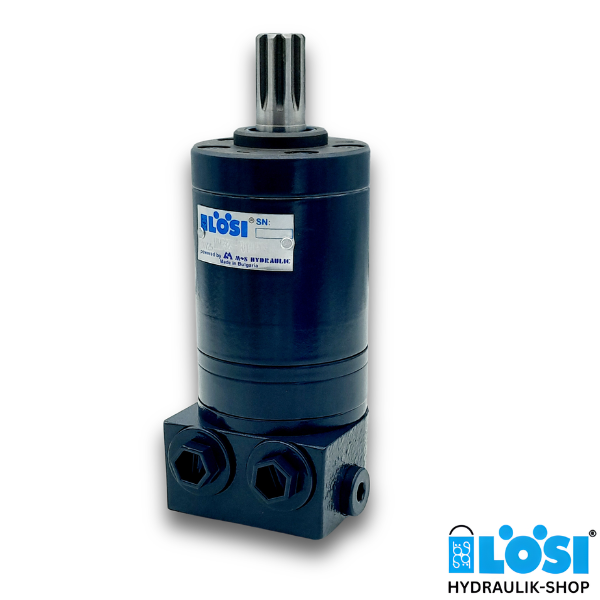

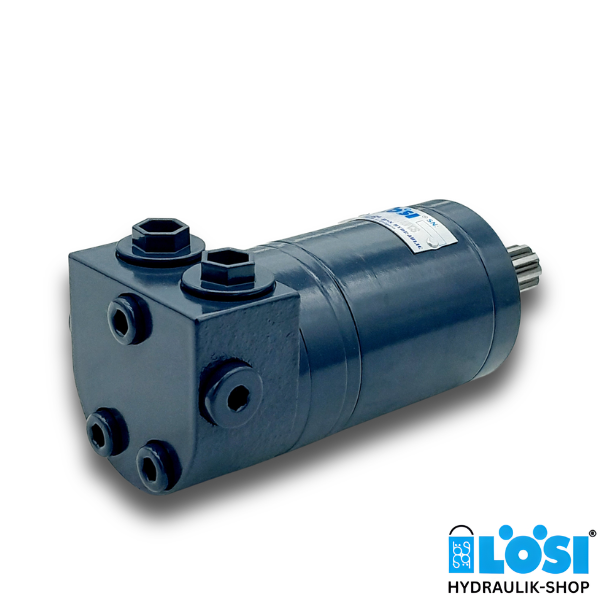

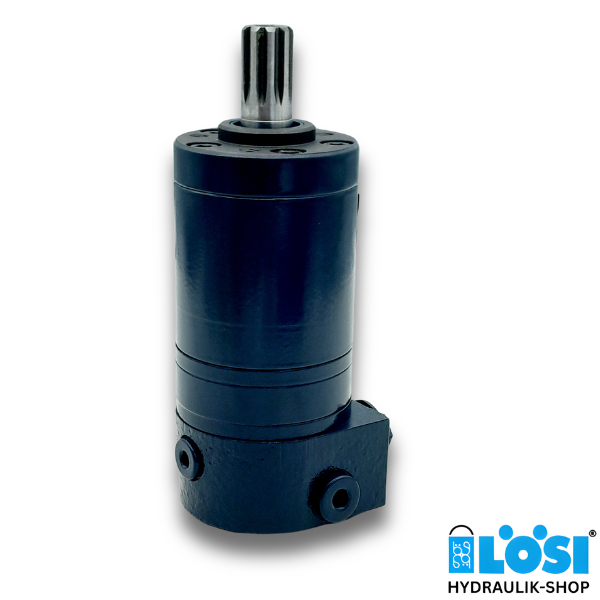

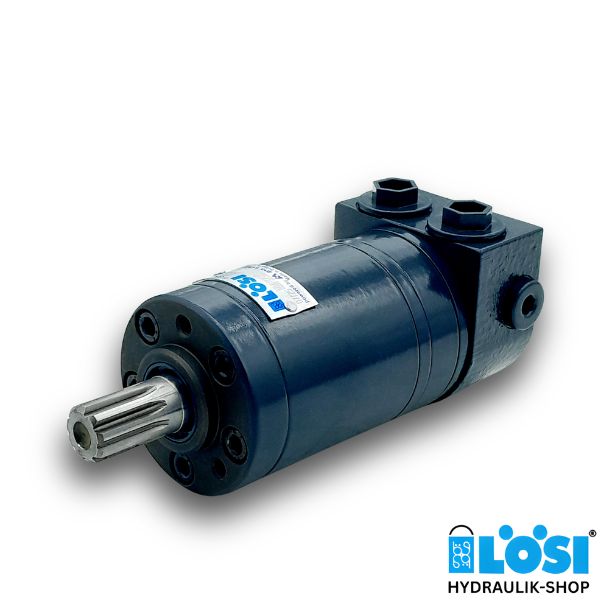

EPMM 32 SH R PC, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with PRV 140
Technical Data:
- Displacement [ccm/rev]: 31.8
- Rear ports: 2x G 3/8 inch BSPP
- Shaft: splined Ø16,5, B17x14
- max. speed: 630 rev/min
- max. torque: 40 Nm
- max. output: 2,4 kW
- max. oil flow: 20 l/min
- max. inlet pressure: 140 bar
- minimum speed: 30 rev/min
- with integrated single-acting PRV 140 bar in port A
- painted in RAL 7016
- Direction of rotation reversed
Download datasheet EPMM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMM? Do you need support in choosing the right EPMM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
