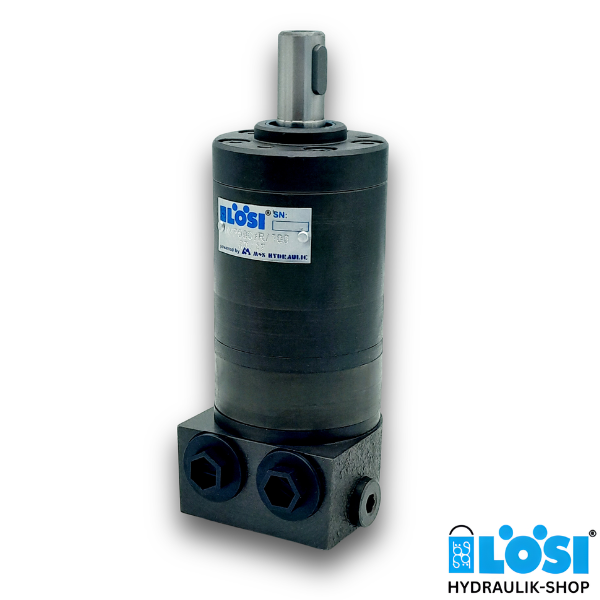

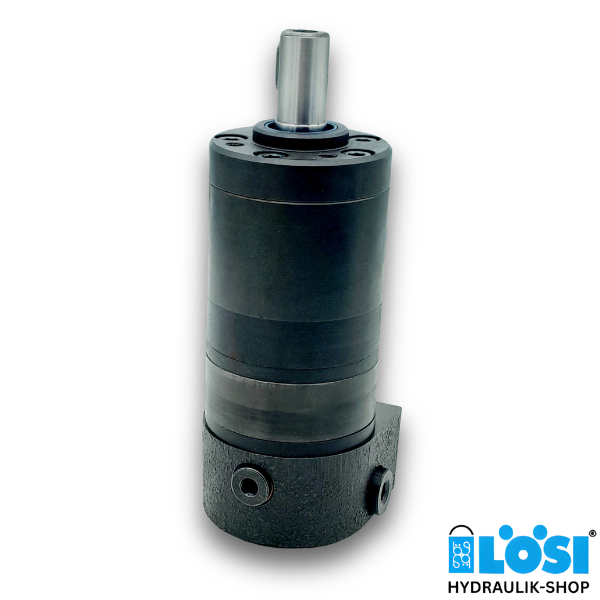

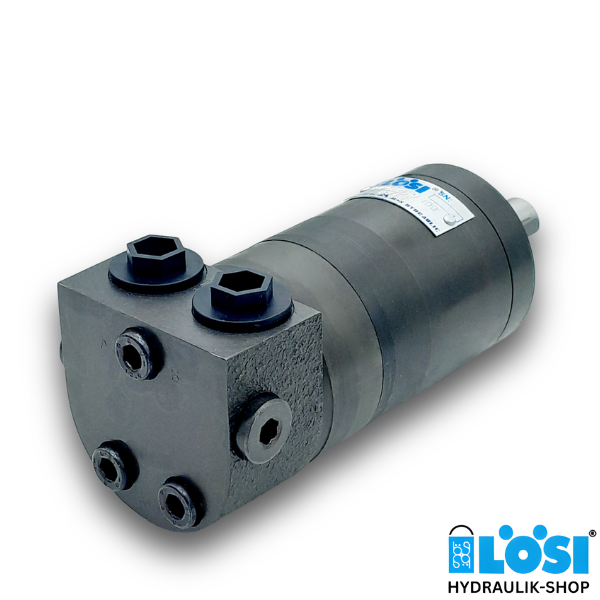

EPMM-P 50 C L, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with PRV 100 bar and Counterclockwise Rotation
Technical Data (for continuous use):
- Displacement [ccm/rev]: 50.0
- Side ports: 2x G 3/8 inch BSPP
- Shaft: cylindrical: Ø 16 mm
- max. speed: 400 rev/min
- max. torque: 46 Nm
- max. output: 1.8 kW
- max. oil flow: 20 l/min
- max. inlet pressure: 140 bar
- with integrated single-acting PRV 100 bar in port B
- Direction of rotation: B → A (counterclockwise rotation)
Download datasheet EPMM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
