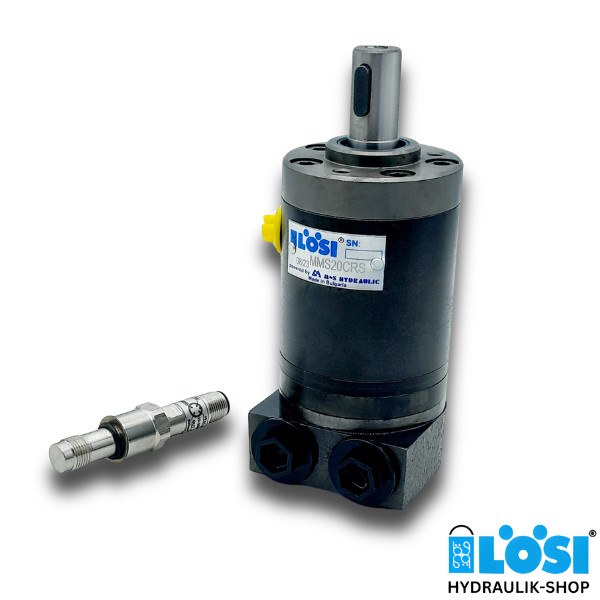

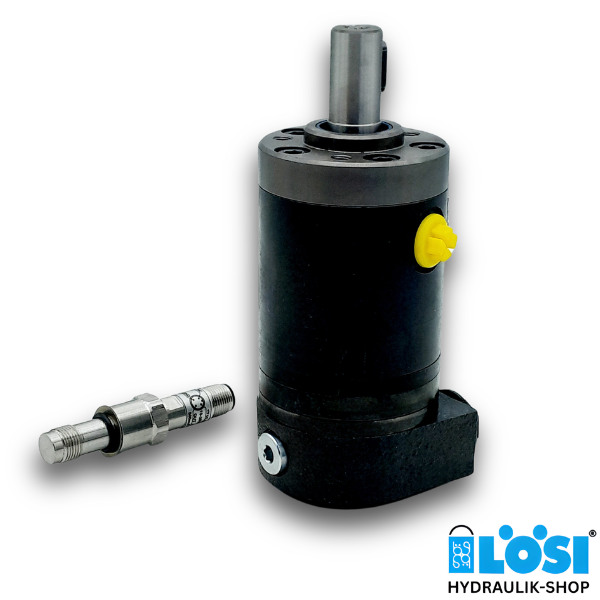

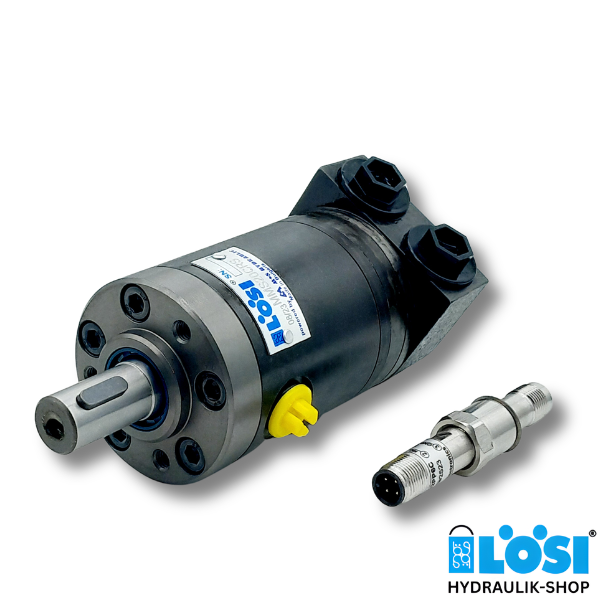

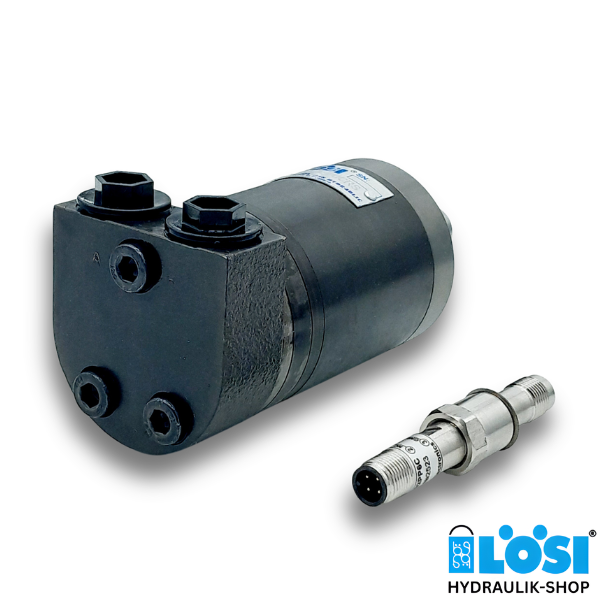

EPMM-S 20 C RS, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor with Speed Sensor
Technical Data
- Displacement [ccm/rev]: 20.0
- Side ports: 2x G 3/8 inch BSPP
- Shaft: cylindrical: Ø 16 mm
- Max. speed: 1000 rev/min
- Max. torque: 230 lb-in
- Max. output: 3.30 HP
- Max. oil flow: 5.5 lpm
- Max. inlet pressure: 2030 PSI
- Minimum speed: 30 rev/min
- with speed sensor
Download datasheet EPMM
Special features like Low Leakage, Free Running, or special paint with RAL-code are available for most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMM? Do you need support in choosing the right EPMM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
