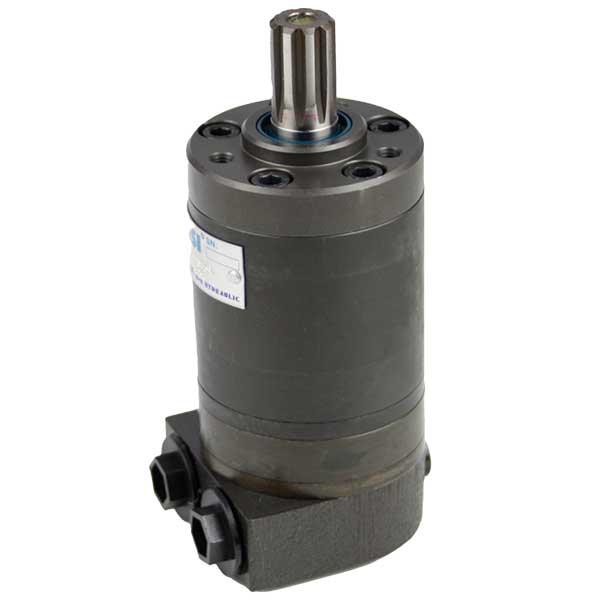

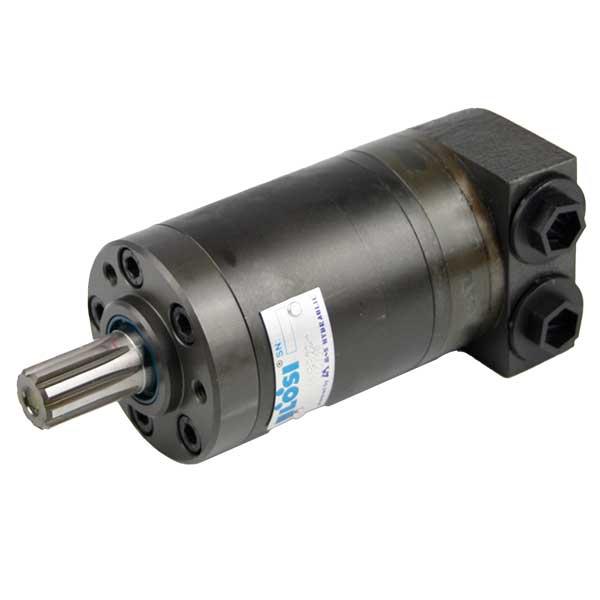

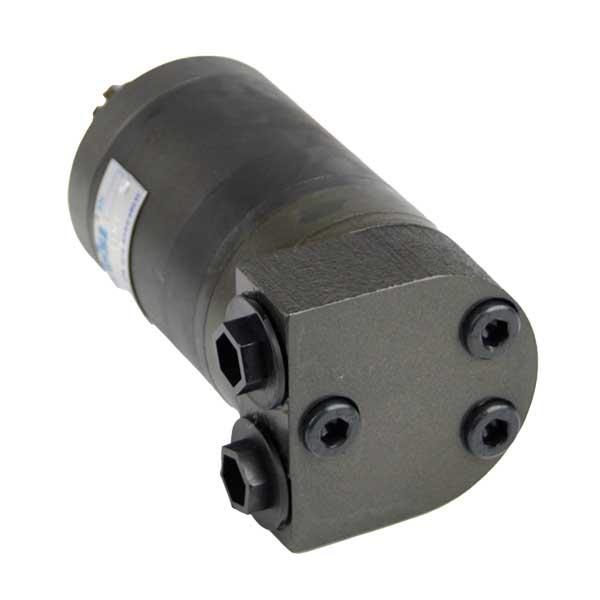

EPMM-S 32 SH Hydraulic Motor
Specifications:
- Displacement [ccm/rev]: 31.8
- Side ports: 2x G 3/8 inch BSPP
- Shaft: splined: Ø 16,5 mm, 9 teeth
Technical Data (for continuous use):
- Max. speed: 630 rev/min
- Max. torque: 375 lb-in
- Max. output: 3.30 HP
- Max. oil flow: 20 l/min
- Max. inlet pressure: 140 bar
- Minimum speed: 30 rev/min
Download datasheet EPMM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- CPMMS32SH
- OMM 32 M. VK.- WELLE
- Danfoss / 151G0029
Do you have any questions about our hydraulic motor type EPMM? Do you need support in choosing the right EPMM hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
