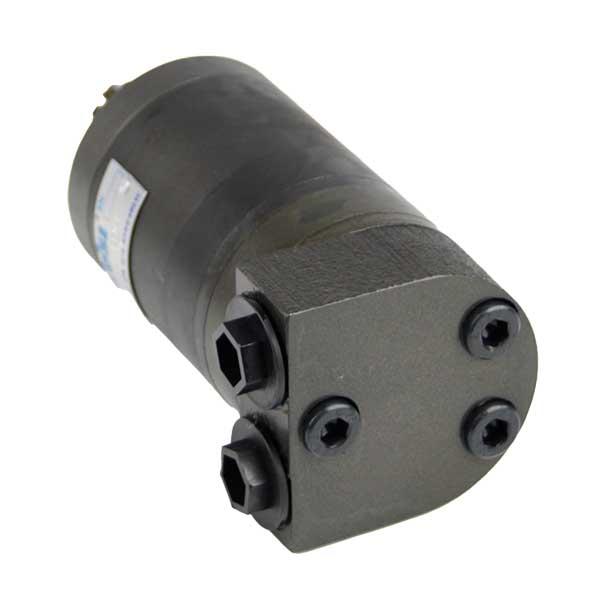

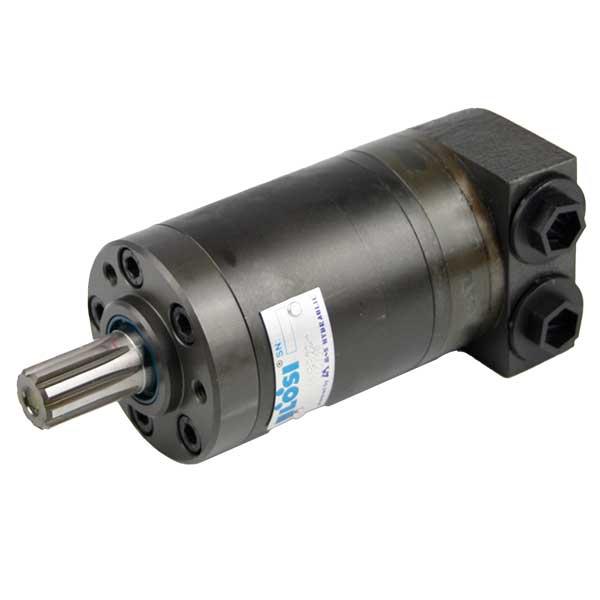

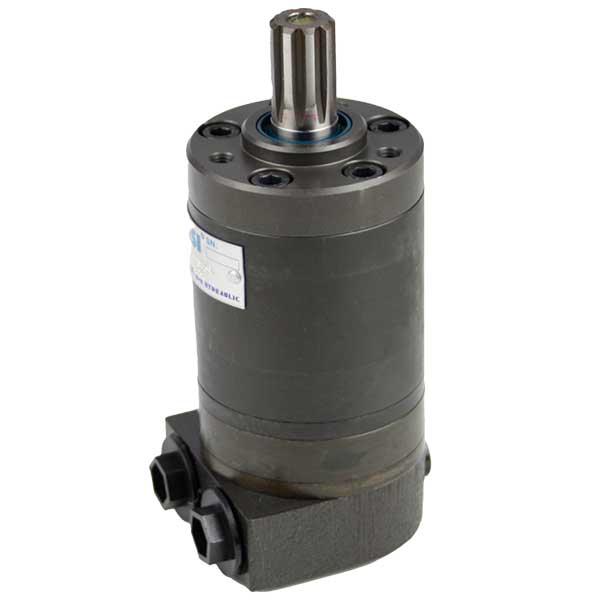

EPMM-S 40 SH Hydraulic Motor
Specifications:
- Displacement [ccm/rev]: 39.8
- Side ports: 2x G 3/8 inch BSPP
- Shaft: splined: Ø 16,5 mm, 9 teeth
Technical Data (for continuous use):
- max. speed: 500 rev/min
- max. torque: 45 Nm
- max. output: 2,2 kW
- max. oil flow: 20 l/min
- max. inlet pressure: 140 bar
- minimum speed: 25 rev/min
Download datasheet EPMM
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
Do you have any questions about our hydraulic motor type EPMM? Do you need support in choosing the right EPMM hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform, by email at info@hydraulikshop-loesi.de or with What's App.
