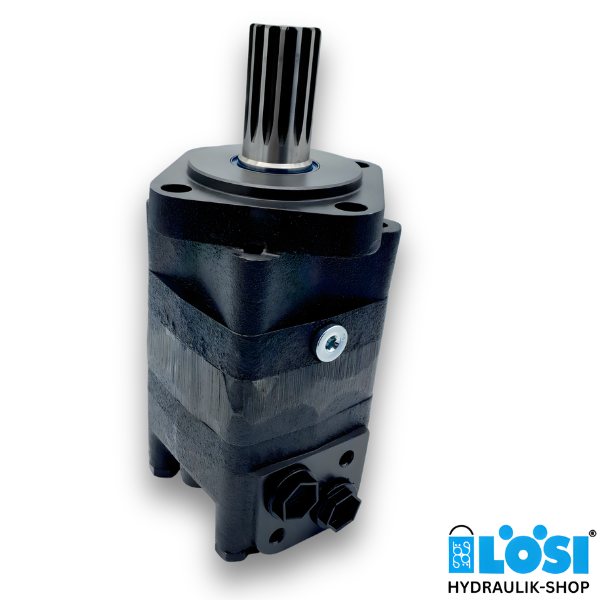

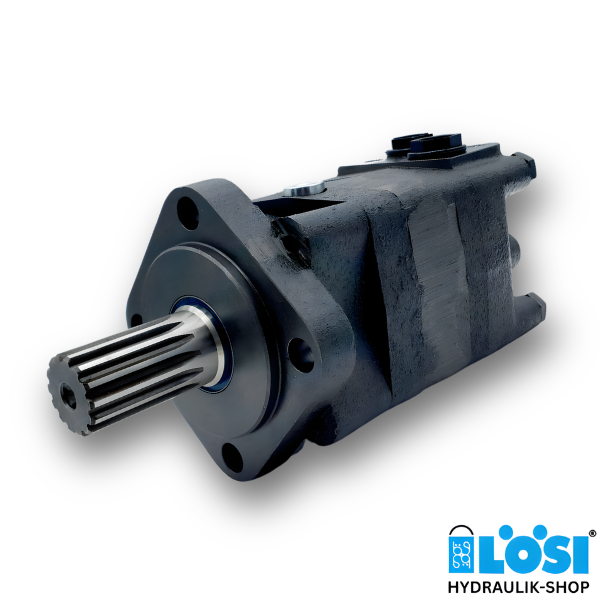

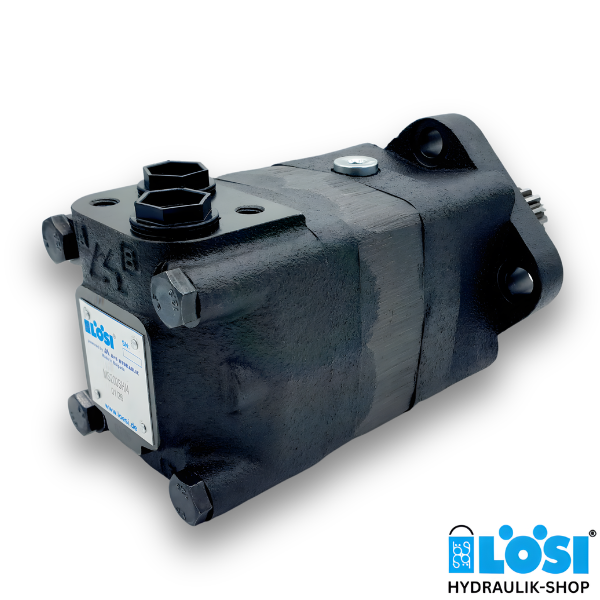

EPMS 100 SH, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 100
- Side ports 2x G1/2 inch BSPP
- Shaft: Splined: (14 teeth) Ø 31.75 mm
- SAE A-4 mount, 4-holes (hole distance: 106.4 mm)
Technical Data (for continuous use):
- max. speed: 750 rev/min
- max. torque: 305 Nm
- max. output: 18 kW
- max. oil flow: 75 l/min
- max. inlet pressure: 230 bar
- minimum speed: 10 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 100 bar
Download datasheet EPMS
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
This oil motor is interchangeable / can be used as an alternative to the following manufacturers:
- Danfoss, 151F0208, OMS 100 M. VK.-WELLE
- Danfoss, 151F0508, OMS 100 Standard/VK 1 1/4
- Hydrauliknord, 640-G202, GMS 100
Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
