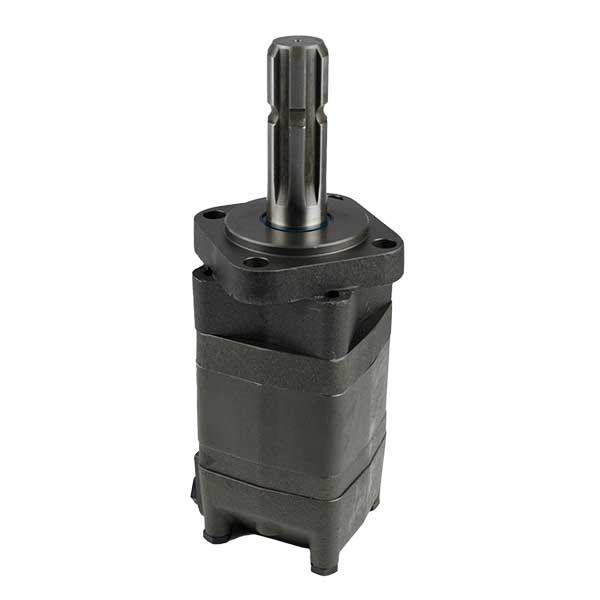

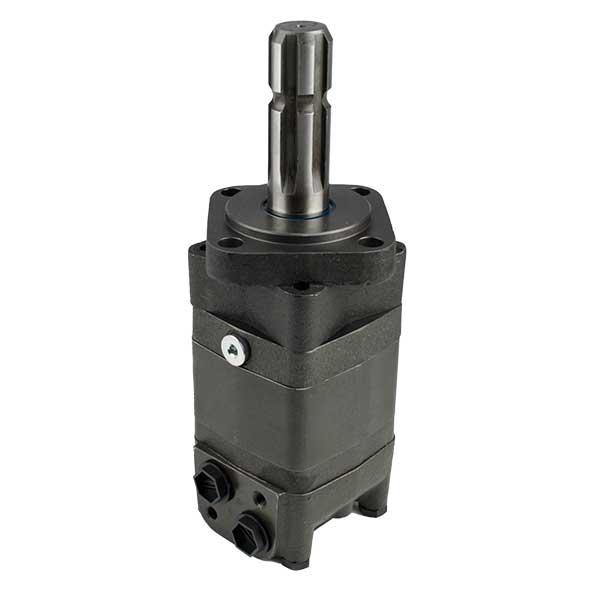

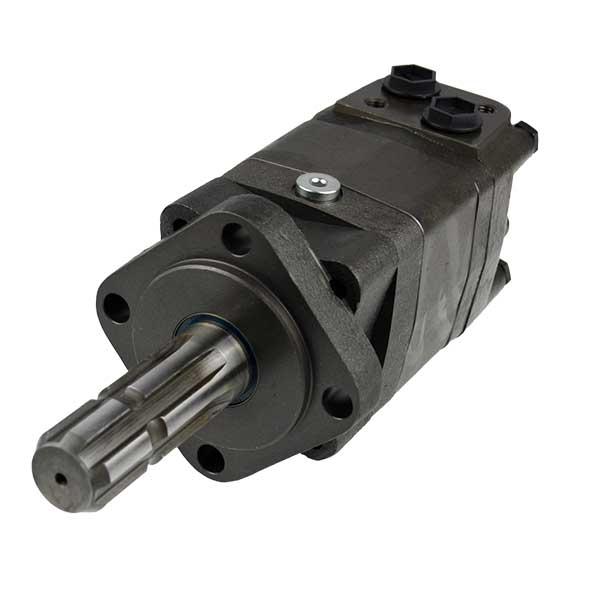

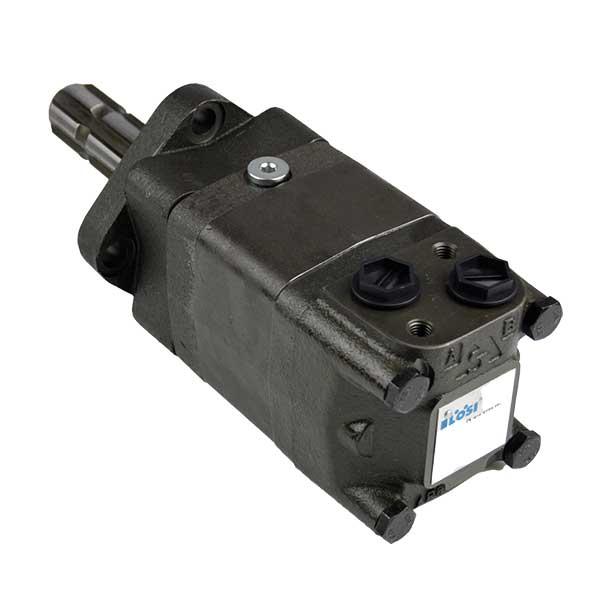

EPMS 400 SL, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor
Specifications:
- Displacement [ccm/rev]: 397
- Side ports 2x G1/2 inch BSPP
- Shaft: Splined P.T.O.: (6 teeth) Ø 34.85 mm
- SAE A-4 mount, 4-holes (hole distance: 106.4 mm)
Technical Data (for continuous use):
- max. speed: 190 rev/min
- max. torque: 865 Nm
- max. output: 11 kW
- max. oil flow: 75 l/min
- max. inlet pressure: 230 bar
- minimum speed: 5 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 100 bar
Download datasheet EPMS
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
