EPMS-S 100 LSV Hydr. Motor

ca. 1-3 days ca. 1-3 days (abroad may vary)
Price display for registered customers only

Add to wish list
Ask about product
Description

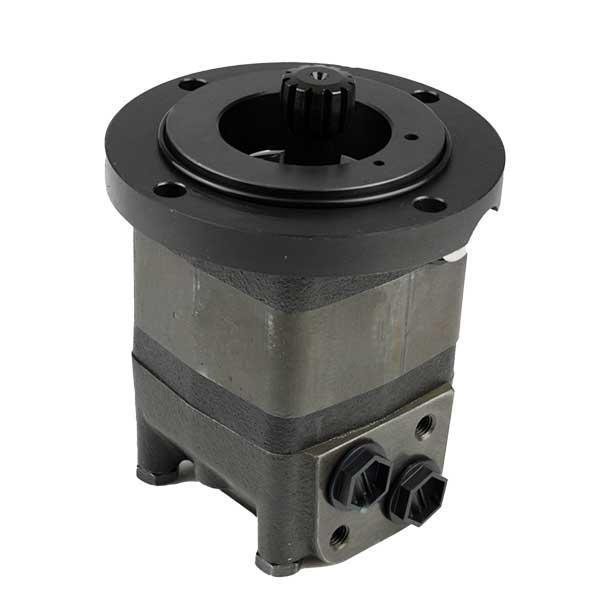

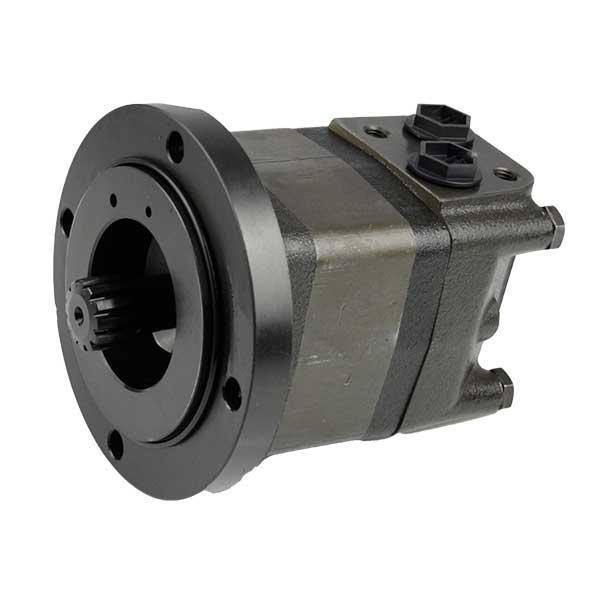

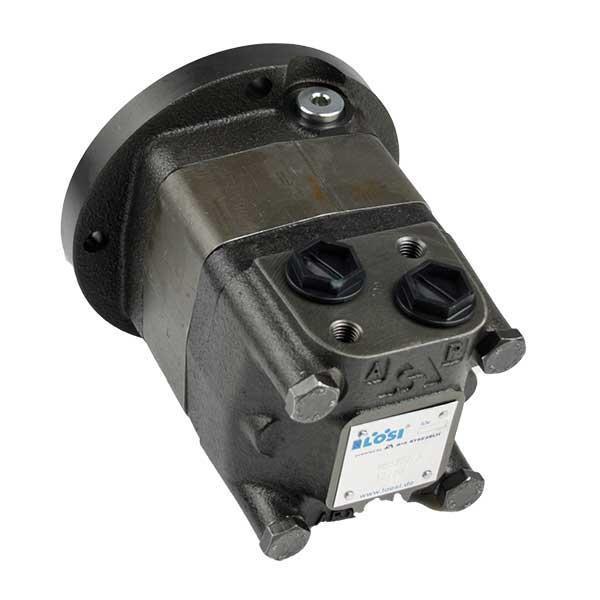

EPMS-S 100 LSV, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

  • Displacement [ccm/rev]: 6.10 rev
  • Side ports 2x G1/2 inch BSPP
  • Shaft: free
  • Short mount
  • Special feature: LSV Low speed valve

Technical Data (for continuous use):

  • max. speed: 750 rev/min
  • max. torque: 2700 [in/lb]
  • max. output: 24.1 HP
  • max. oil flow: 19.8 GPM
  • max. inlet pressure: 3340 PSI
  • minimum speed: 10 rev/min
  • max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPMS

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

  • Eaton, 106-1040, 2000 Series
  • Danfoss, 151F0237, OMSS 125 SHORT-VERSION
  • Danfoss, 151F0009, OMSS 125 SHORT-VERSION
  • Danfoss, 151F0537, OMSS 125 short
  • Hydrauliknord, 641-F201, GMS-S 125

Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
