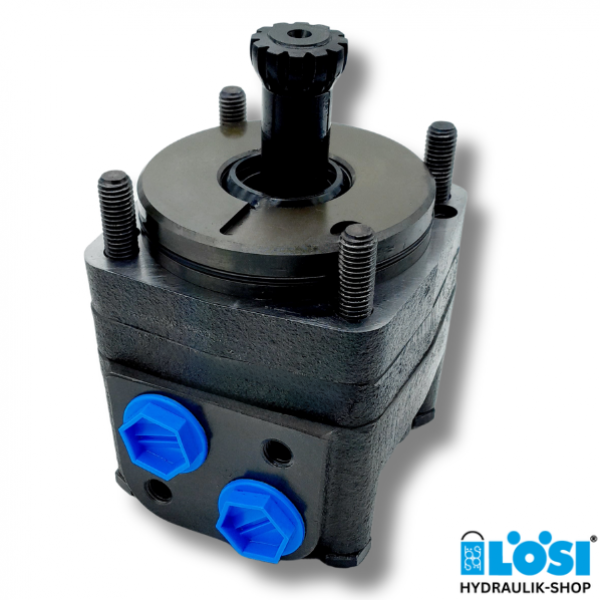

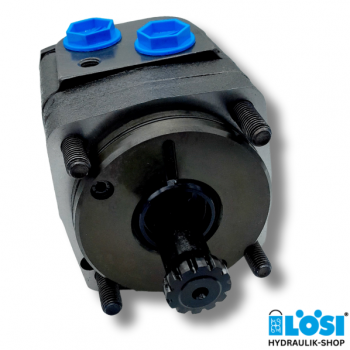

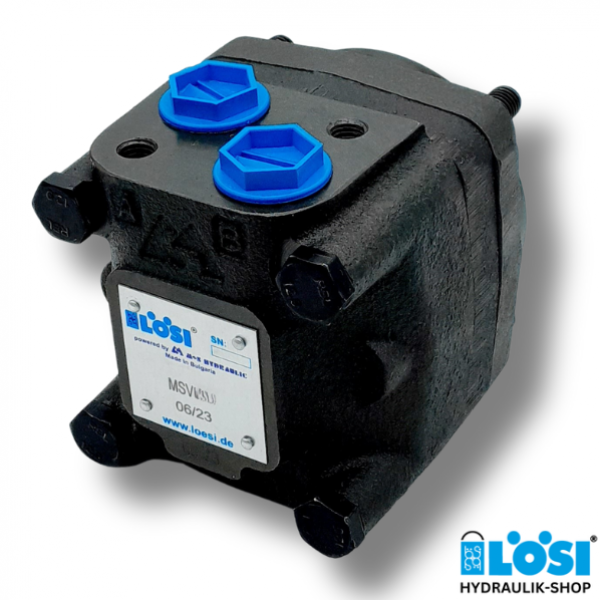

EPMS-V 80, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 4.91 rev
Side ports 2x G1/2 inch BSPP
Shaft: free
Very short mount

Technical Data (for continuous use):

max. speed: 810 rev/min
max. torque: 2120 [in/lb]
max. output: 20.8 HP
max. oil flow: 17.0 GPM
max. inlet pressure: 3340 PSI
minimum speed: 8 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPMS

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 352140, via our contactform , by email at shop@loesi.de or with What's App .
