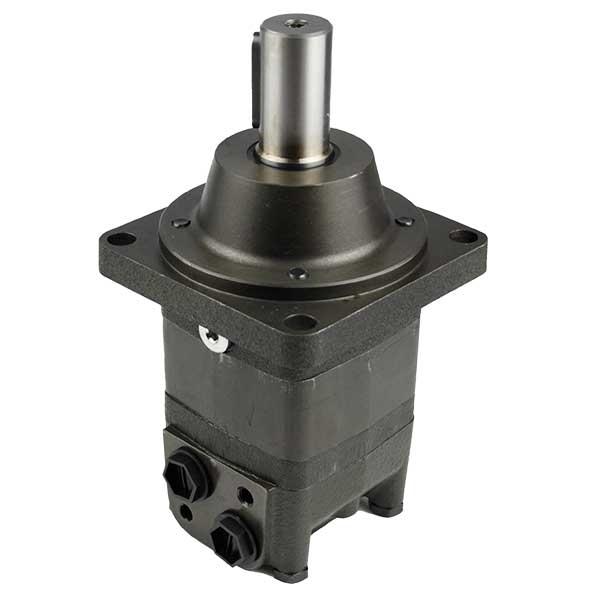

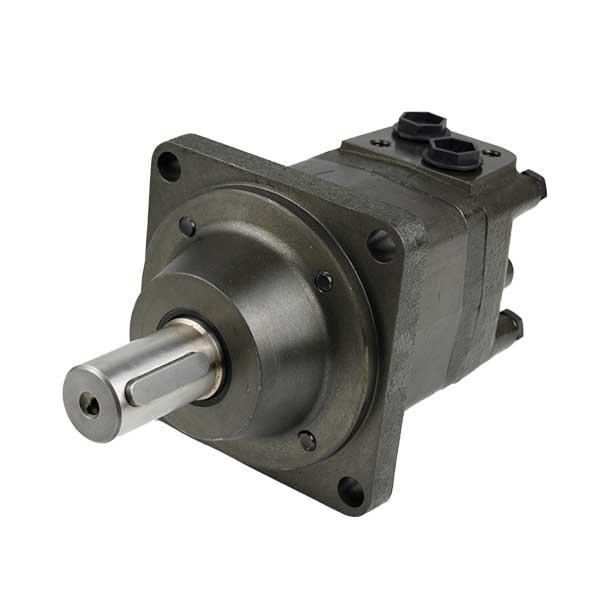

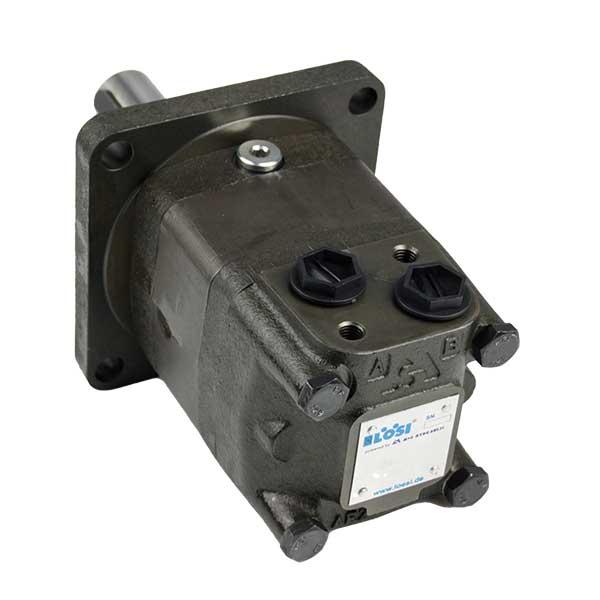

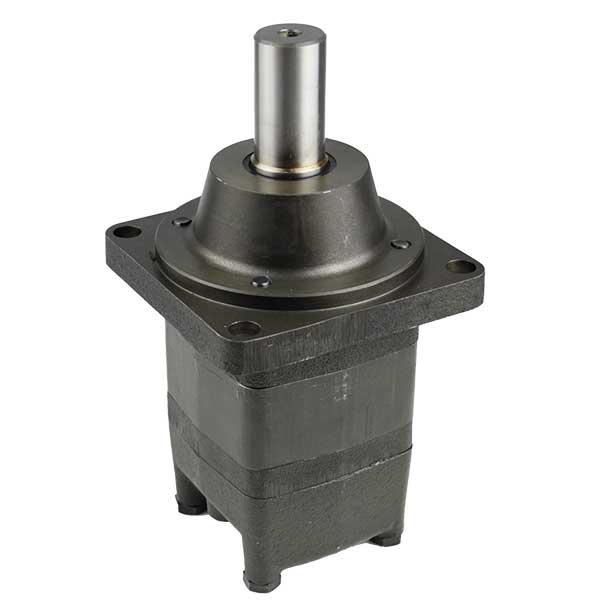

EPMS-W 100 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

Displacement [ccm/rev]: 100
Side ports 2x G1/2 inch BSPP
Shaft: Cylindrical: Ø 32 mm
Mount: Wheel mount (hole distance: 160 mm)

Technical Data (for continuous use):

max. speed: 750 rev/min
max. torque: 305 Nm
max. output: 18 kW
max. oil flow: 75 l/min
max. inlet pressure: 230 bar
minimum speed: 10 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPMS

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

Danfoss, 151F0222, OMSW 100 M. 32MM-WELLE
Danfoss, 151F0522, OMSW 100 W32
Hydrauliknord, 642-F201, GMS-W 100

Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
