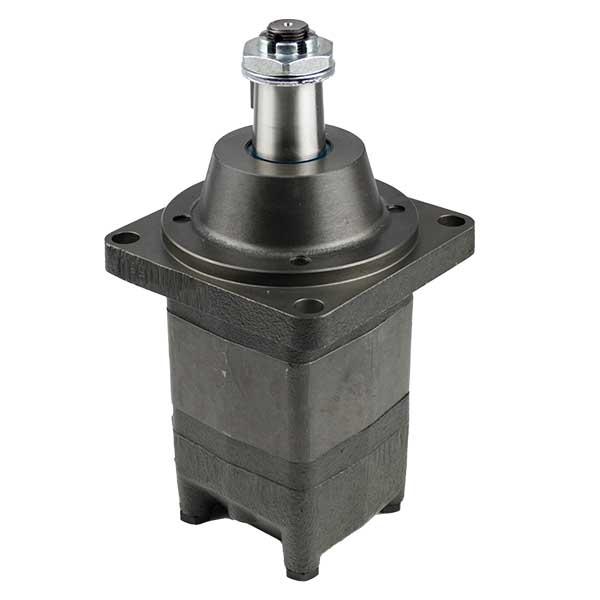

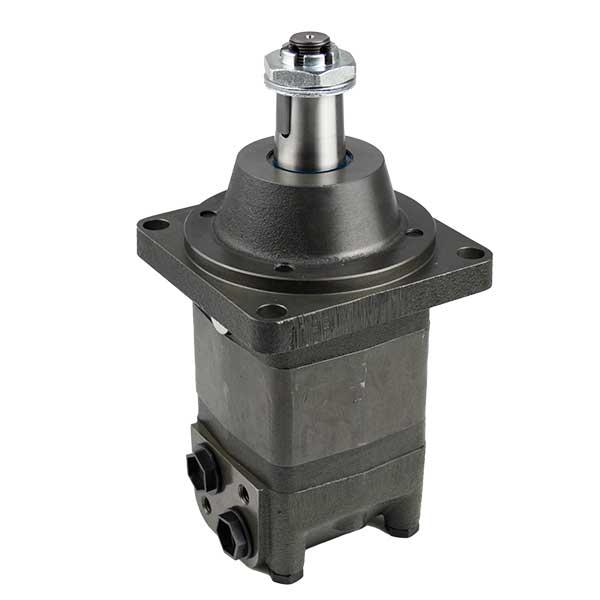

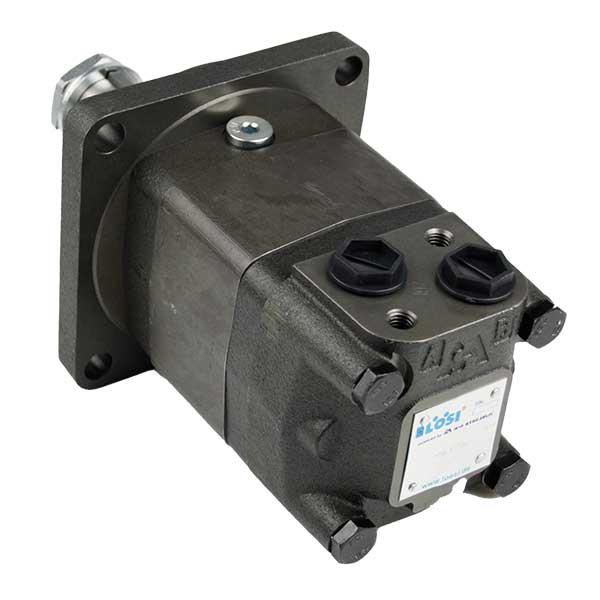

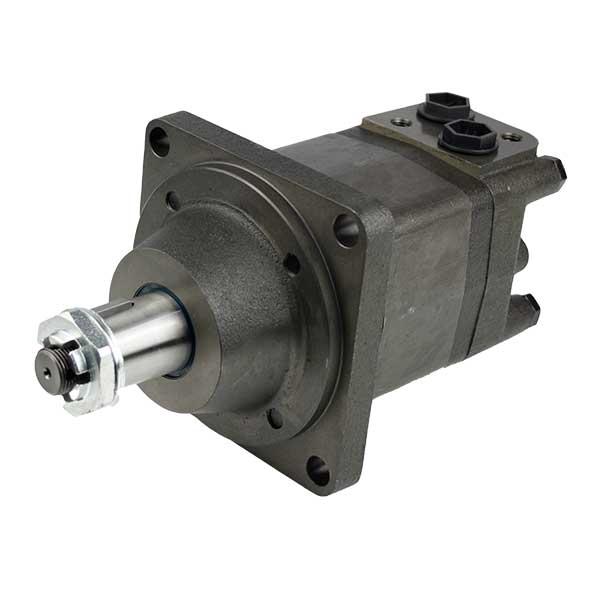

EPMS-W 80 K Hydraulic Motor

EPMS-W 80 K, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 80.5
• Side ports 2x G1/2 inch BSPP
• Shaft: Tapered: 1:10, Ø 35 mm
• Wheel mount (hole distance: 160 mm)

Technical Data (for continuous use):

• max. speed: 810 rev/min
• max. torque: 240 Nm
• max. output: 15.5 kW
• max. oil flow: 65 l/min
• max. inlet pressure: 230 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line = 100 bar

Download datasheet EPMS

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151F0228, OMSW 80 M. KEGL.WELLE
• Hydrauliknord, 642-F203, GMS-W 080

Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
