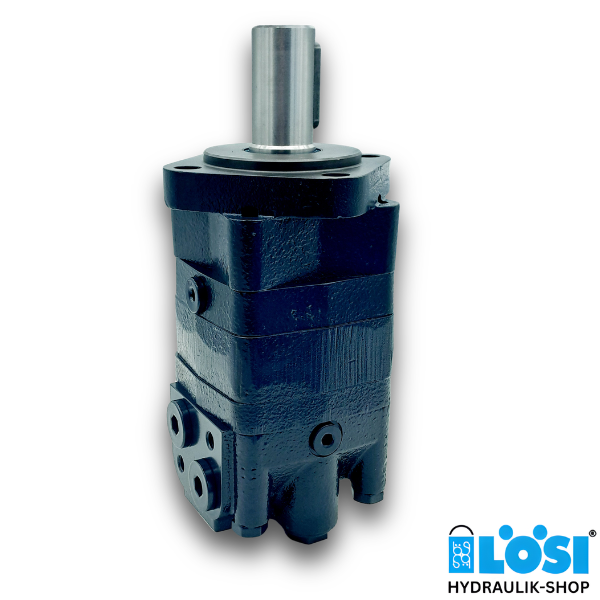

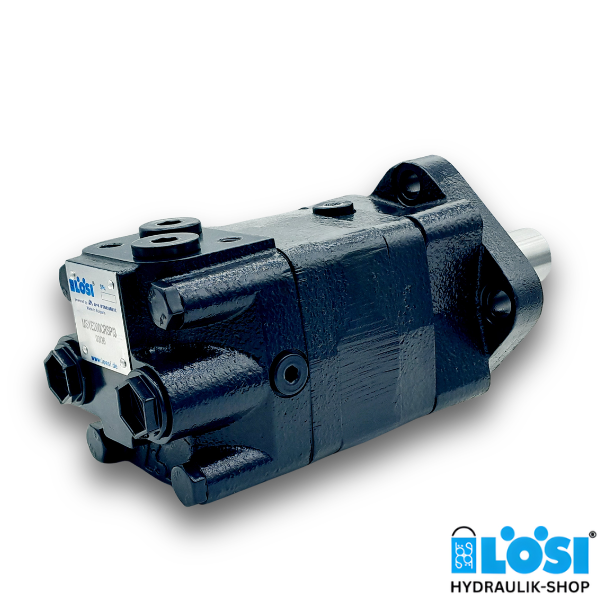

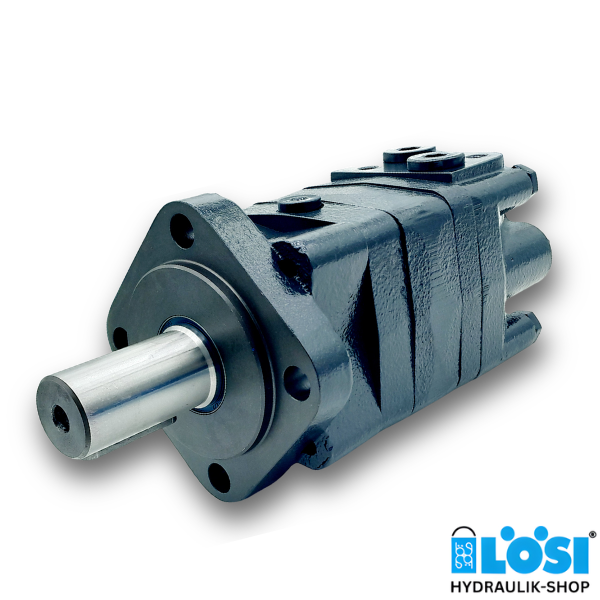

EPMSY-E 200 C RS P RAL7021, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor, with Reinforced Internal Cardan Shaft
Specifications:
- Displacement [ccm/rev]: 200.0
- Rear ports 2x G1/2 inch BSPP
- Shaft: Cylindrical: Ø 32 mm
- Mount: SAE A-4, 4-holes (hole distance: 106.4 mm)
- Reinforced internal cardan shaft
- With sensor mounting hole, without sensor (with plug screw)
- Painted RAL7021
Technical Data (for continuous use):
- max. speed: 375 rev/min
- max. torque: 566 Nm
- max. output: 18.1 kW
- max. oil flow: 75 l/min
- max. inlet pressure: 210 bar
- minimum speed: 6 rev/min
- max. return pressure without drain line, or max. pressure in the drain line = 140 bar
Download datasheet EPMSY
Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.
We offer a wide range of highly interchangeable hydraulic motors from many leading manufacturers, including Danfoss, White, Eaton and SAM/Brevini. If you cannot find the right motor, please contact us and we will be happy to provide you with a personalised quote.
Do you have any questions about our hydraulic motor type EPMS. Do you need support in choosing the right EPMS hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
