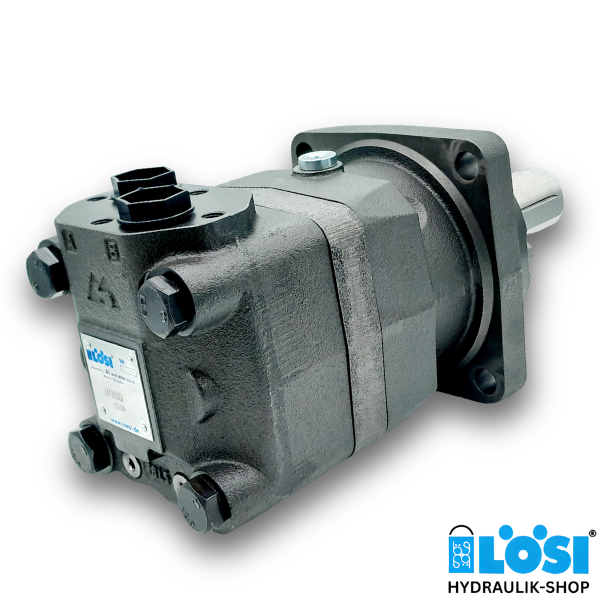

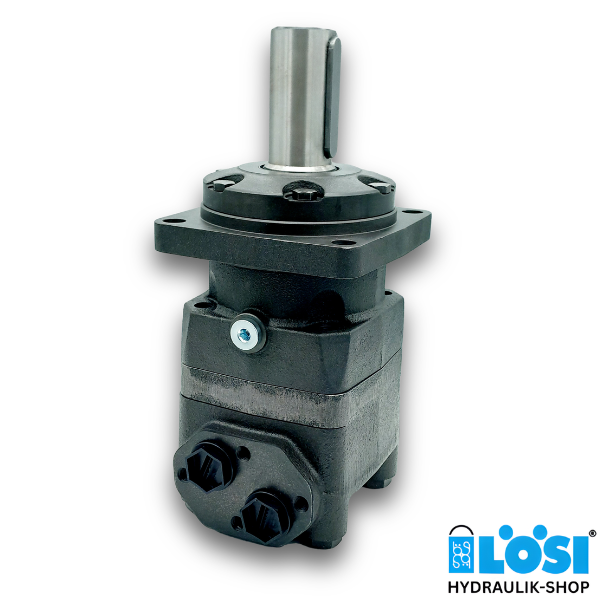

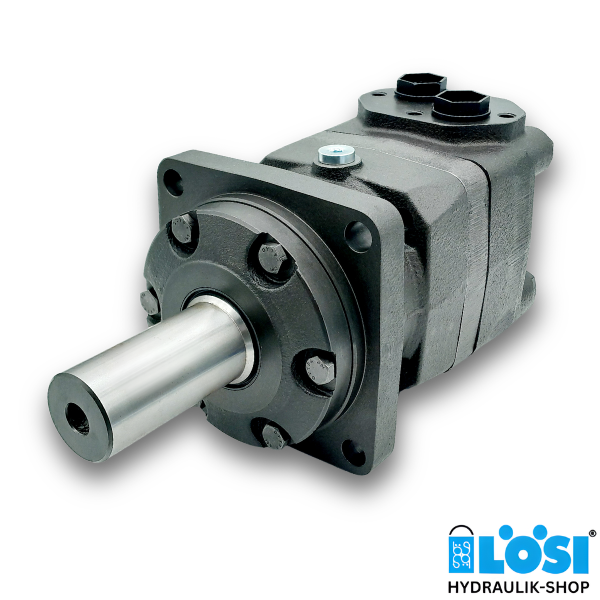

EPMT 160 C Hydraulic Motor

EPMT 160 C, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

Specifications:

• Displacement [ccm/rev]: 161.1
• Side ports: 2x G3/4 inch BSPP
• Shaft: Cylindrical: Ø 40 mm
• Square mount 4-holes (hole distance: 160 mm)

Technical Data (for continuous use):

• max. speed: 622 rev/min
• max. torque: 470 Nm
• max. output: 26,5 kW
• max. oil flow: 100 l/min
• max. inlet pressure: 210 bar
• minimum speed: 10 rev/min
• max. return pressure without drain line, or max. pressure in the drain line: 75 bar

Download datasheet EPMT

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

• Danfoss, 151B0001, OMT 160 HYDR.MOTOR ZYL. WELLE
• Danfoss, 151B0233, OMT 160 M. 40MM-WELLE
• Danfoss, 151B0360, OMT 160 M. 40MM-WELLE S.2
• Danfoss, 151B3000, OMT 160
• Hydrauliknord, 650-K401, GMT 160

Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
