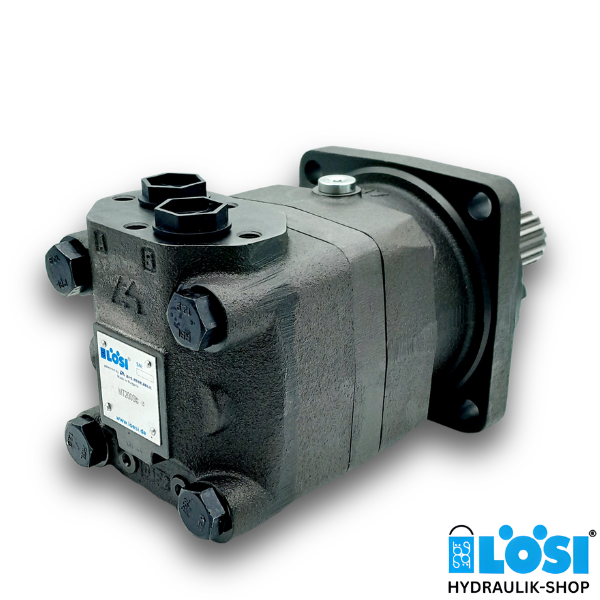

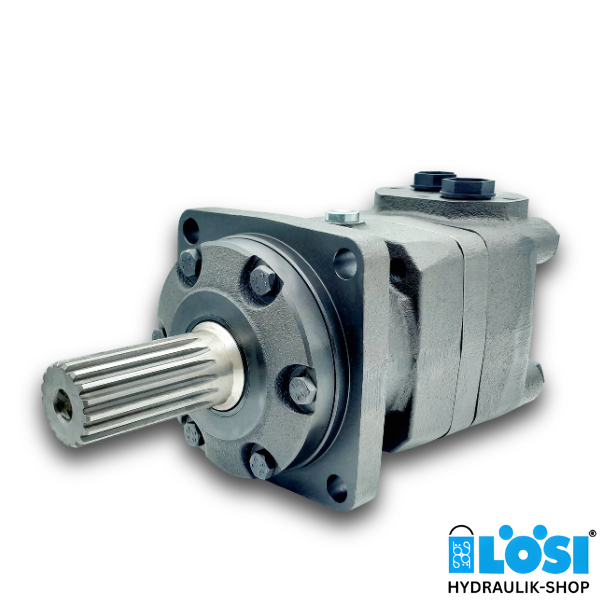

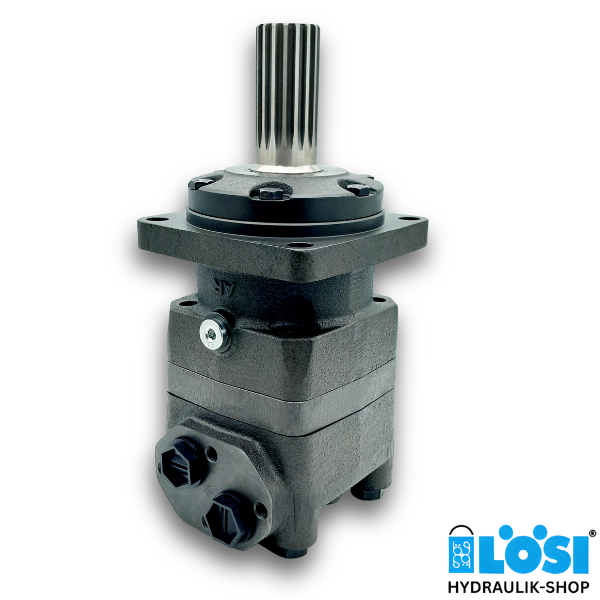

EPMT 200 SH, LöSi Hydraulic Motor, Orbital Motor, Oil Motor, Gerotor Motor

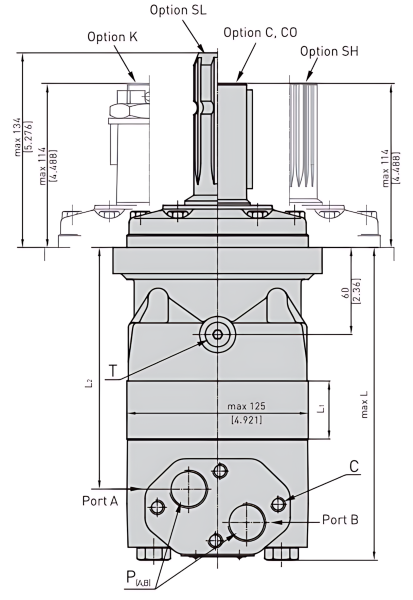

Specifications:

Displacement [ccm/rev]: 201.4
Side ports 2x G3/4 inch BSPP
Shaft: Splined: Ø 38,1 mm (1½ inch), 17 teeth
Square mount 4-holes (hole distance: 160 mm)

Technical Data (for continuous use):

max. speed: 620 rev/min
max. torque: 590 Nm
max. output: 33,5 kW
max. oil flow: 125 l/min
max. inlet pressure: 210 bar
minimum speed: 9 rev/min
max. return pressure without drain line, or max. pressure in the drain line = 75 bar

Download datasheet EPMT

Special features like Low Leakage, Free Running or special paint with RAL-code are available for the most motor types. Please ask us for more information.

This oil motor is interchangeable / can be used as an alternative to the following manufacturers:

Danfoss, 151B0036, OMT 200 HYDR.MOTOR VK-WELLE
Danfoss, 151B0206, OMT 200 M. VK.-WELLE
Danfoss, 151B3007, OMT 200
Hydrauliknord, 650-L402, GMT 200

Do you have any questions about our hydraulic motor type EPMT. Do you need support in choosing the right EPMT hydraulic motor? Then please contact us by phone on +49 631 351240, via our contactform, by email at shop@loesi.de or with What's App.
